Components With Torque Specifications: Generator

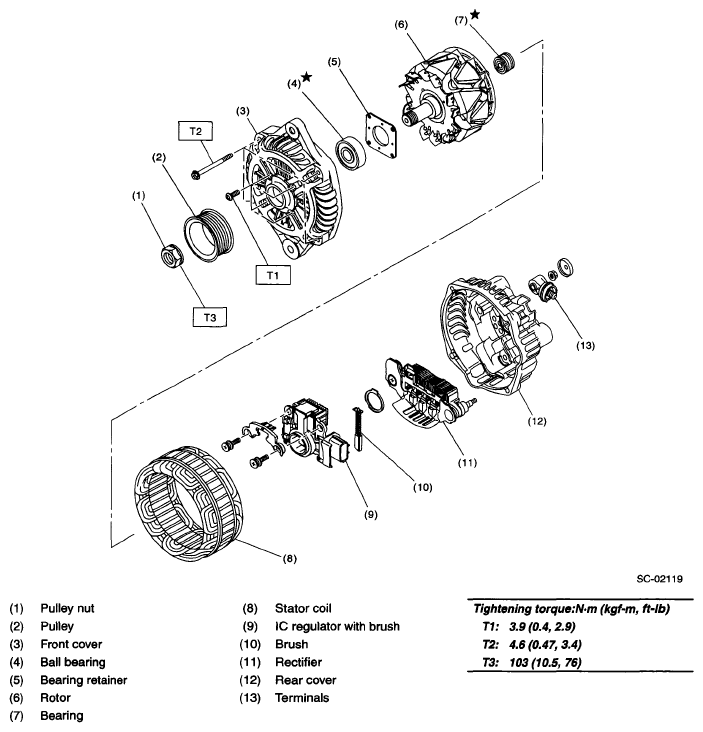

Fig 1: Exploded View Of Generator Components With Torque Specifications
G05668101Courtesy of SUBARU OF AMERICA, INC.
