Keyless Entry

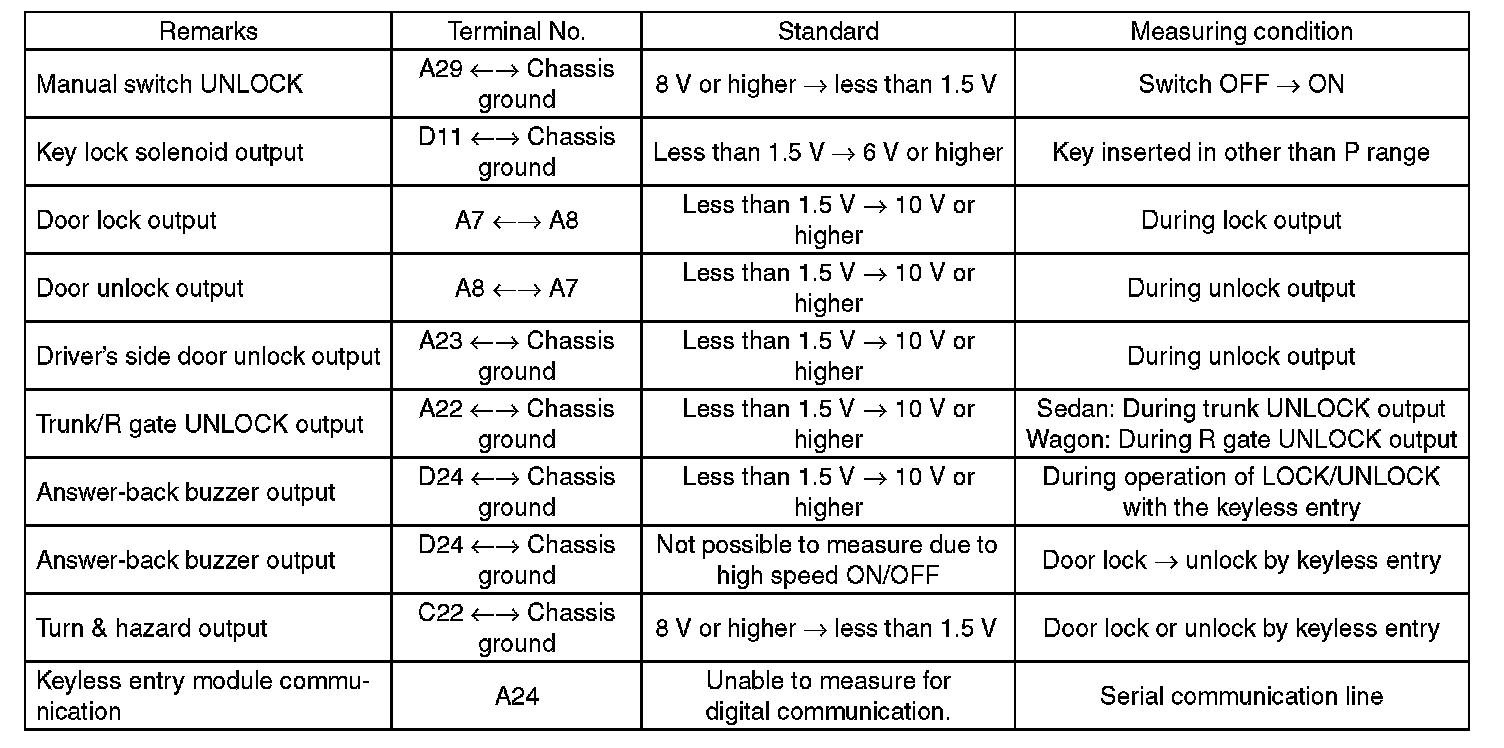

Keyless Entry Control Module:

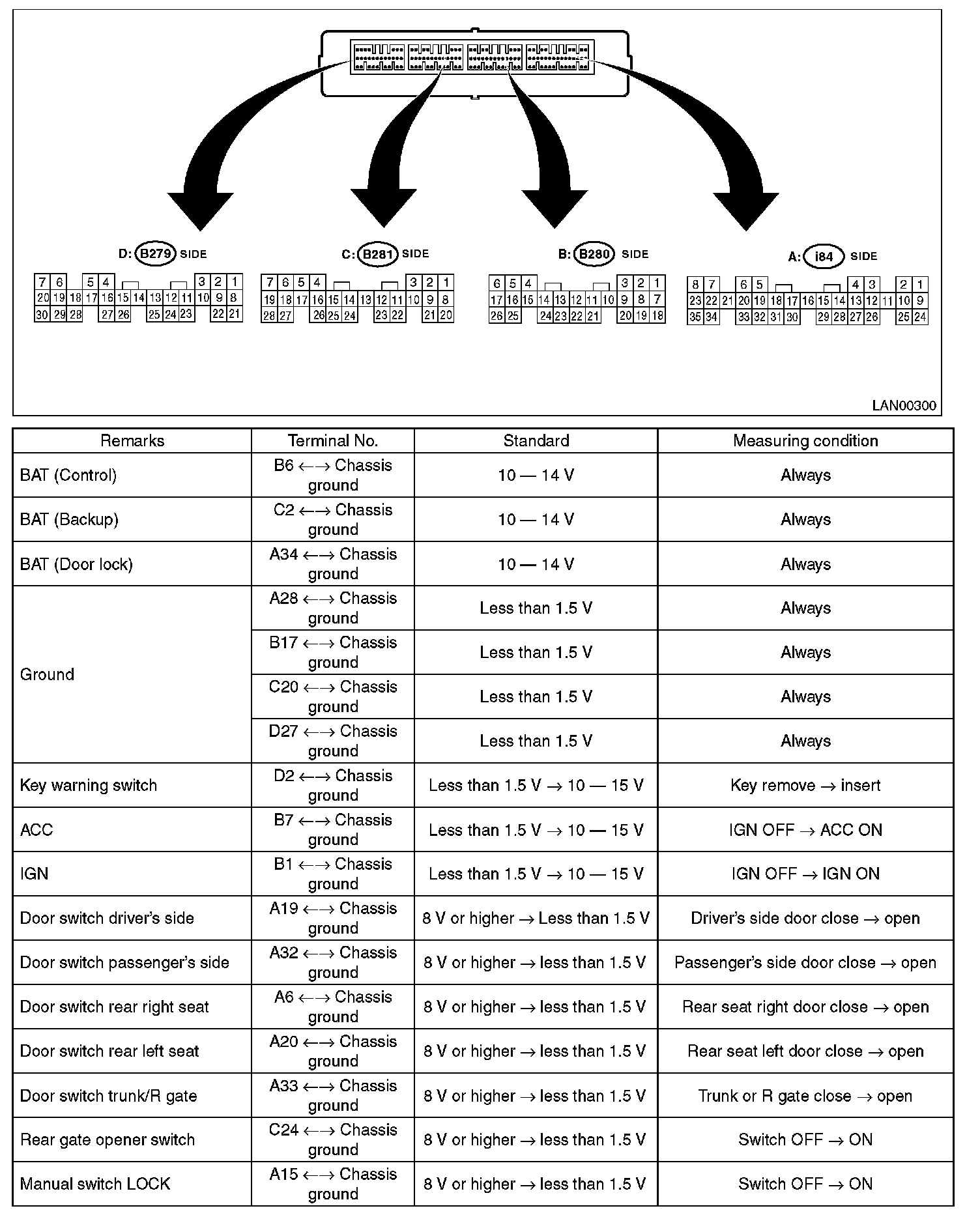

Body Integrated Unit (Part 1):

Body Integrated Unit (Part 2):
