Locks

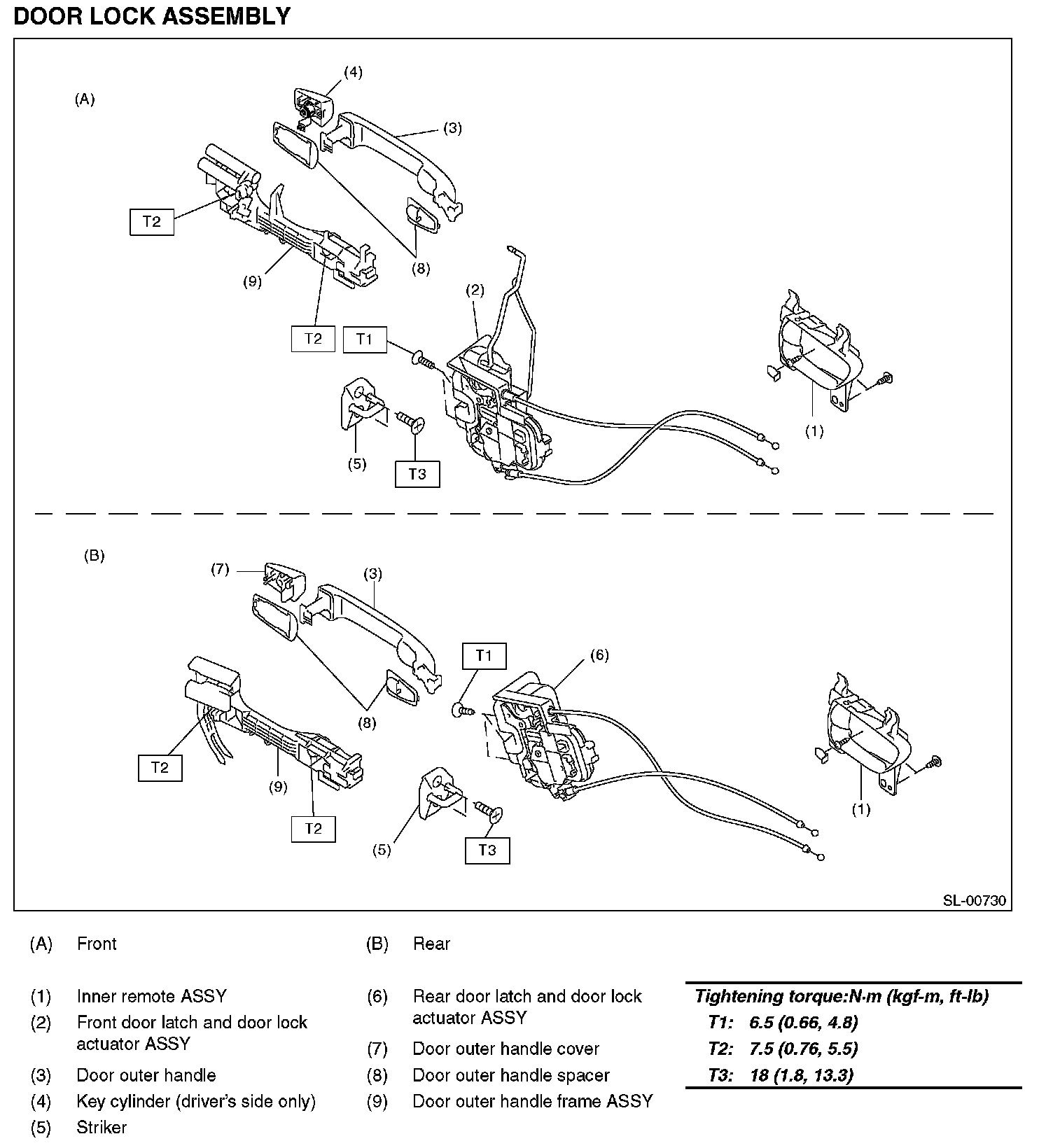

Door Lock Assembly:

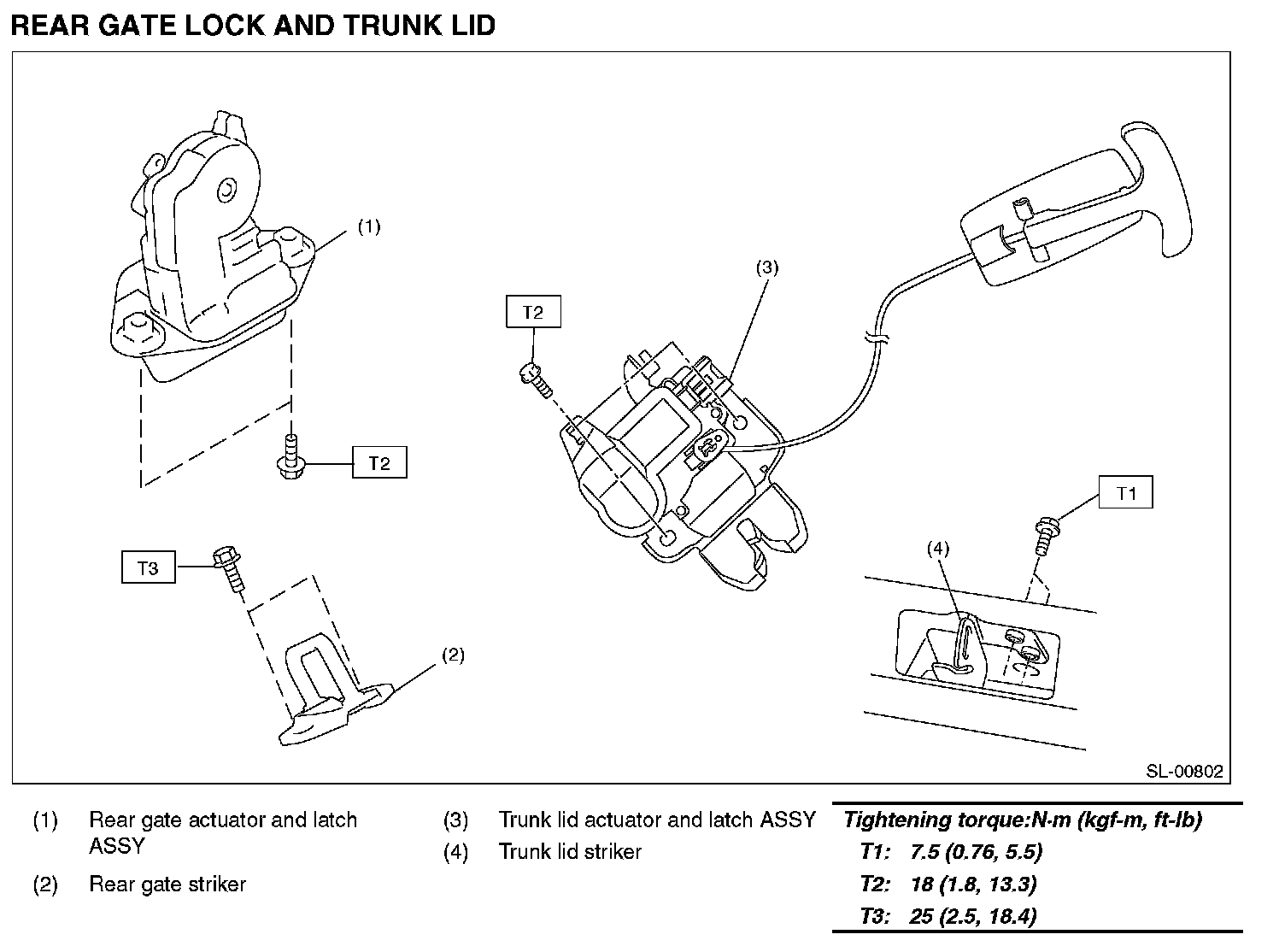

Rear Gate Lock And Trunk LID:

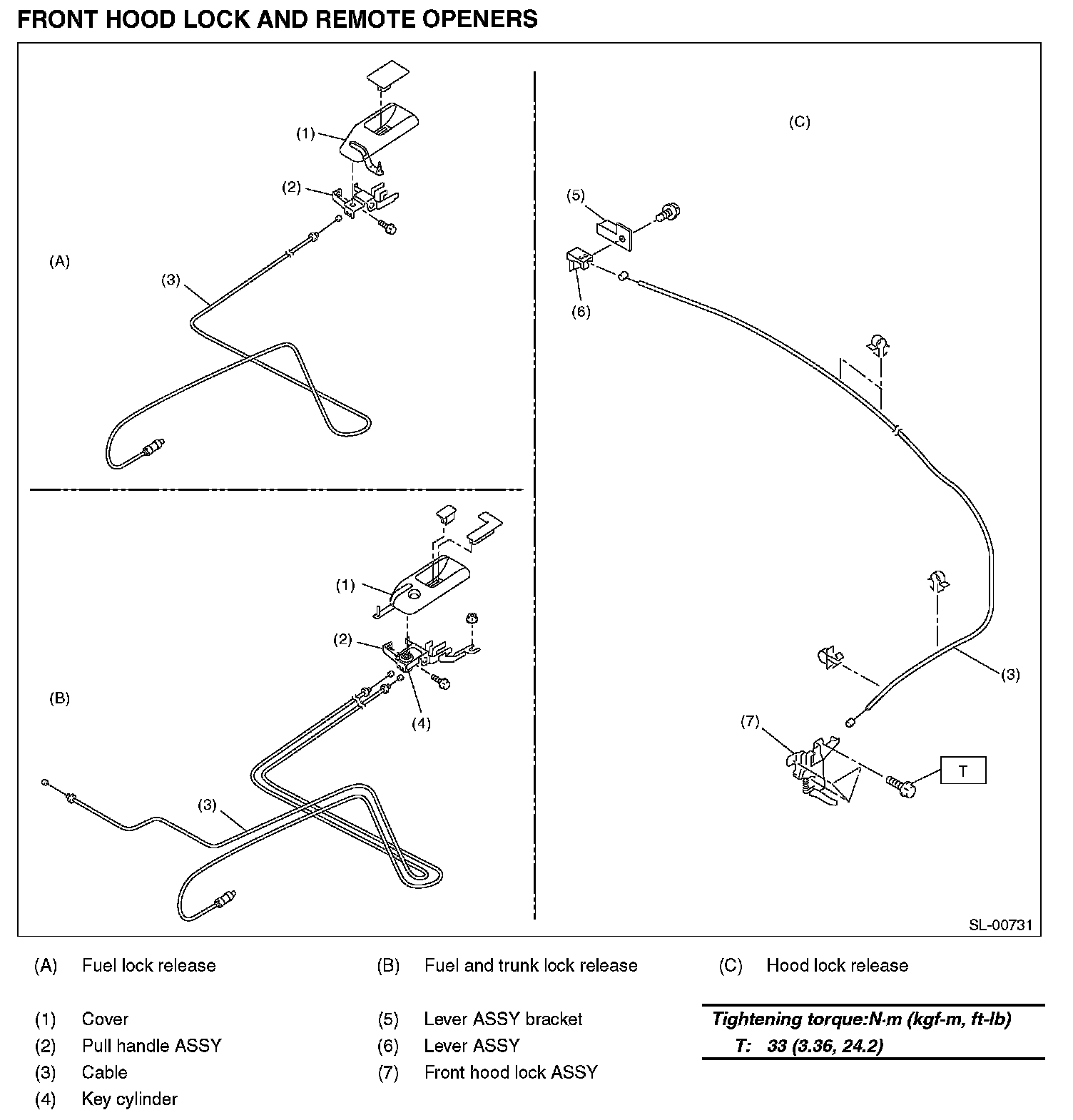

Front Hood Lock And Remote Openers:

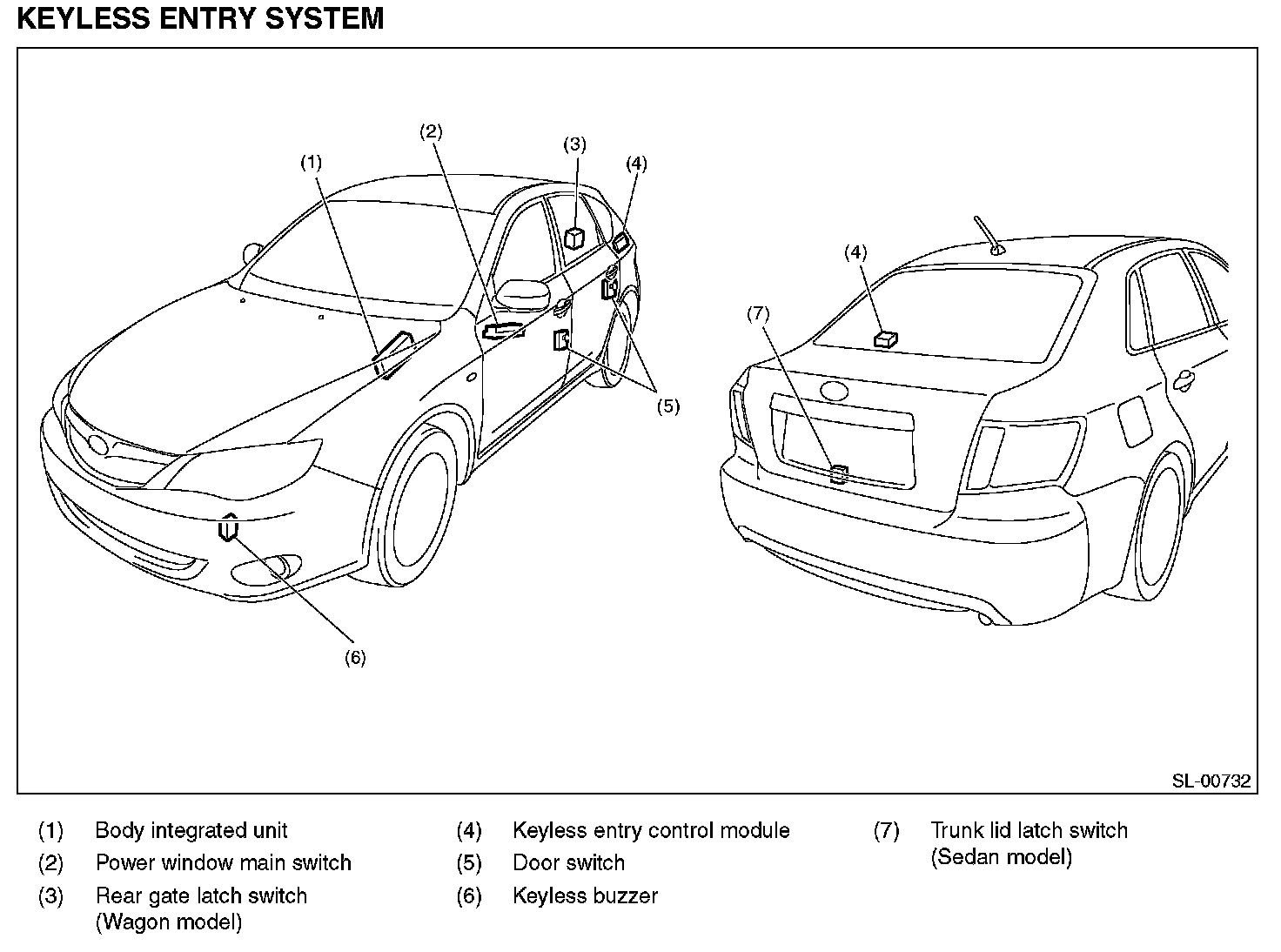

Keyless Entry System:

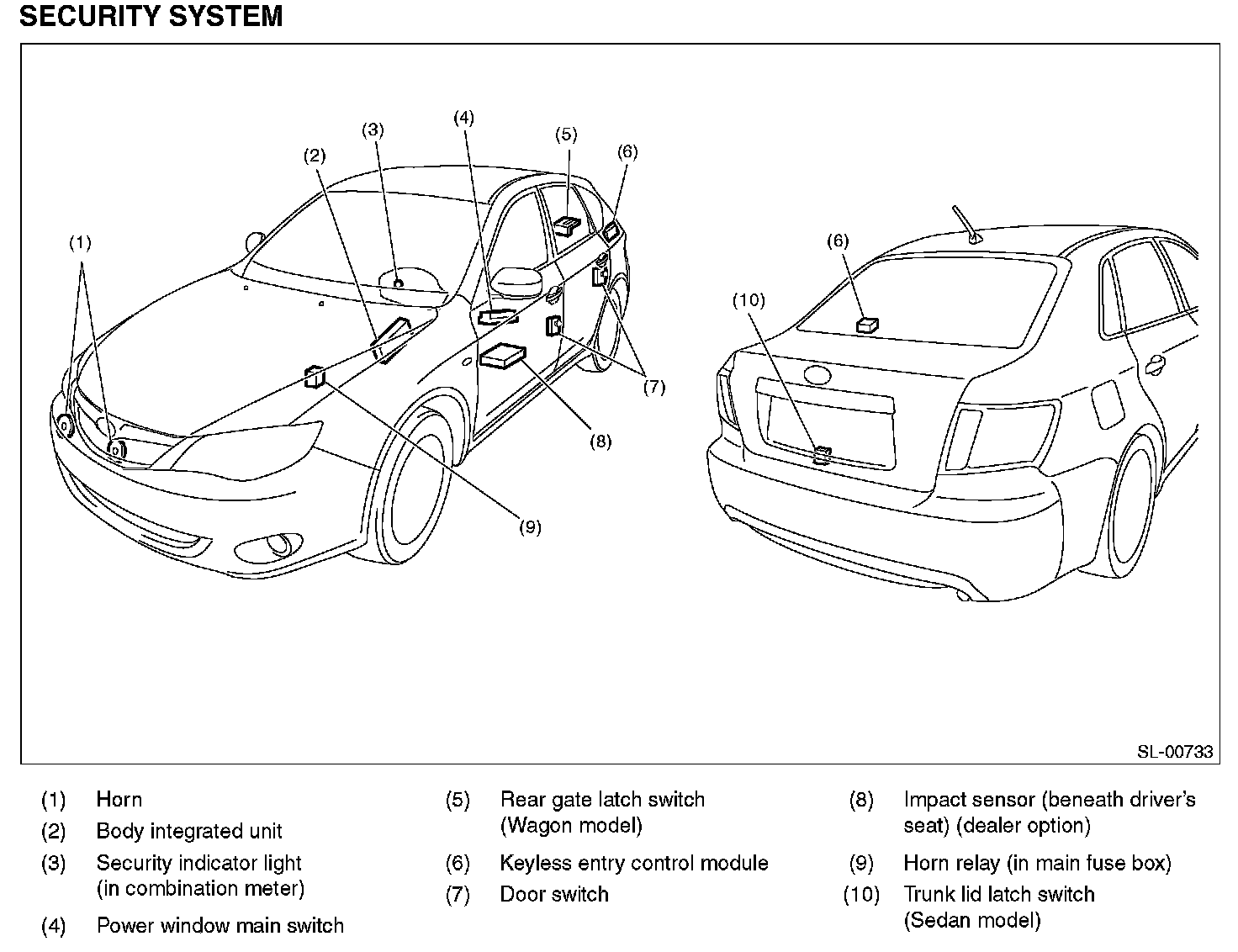

Security System:
