Operating Cylinder

WARNING: This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Non-turbo model

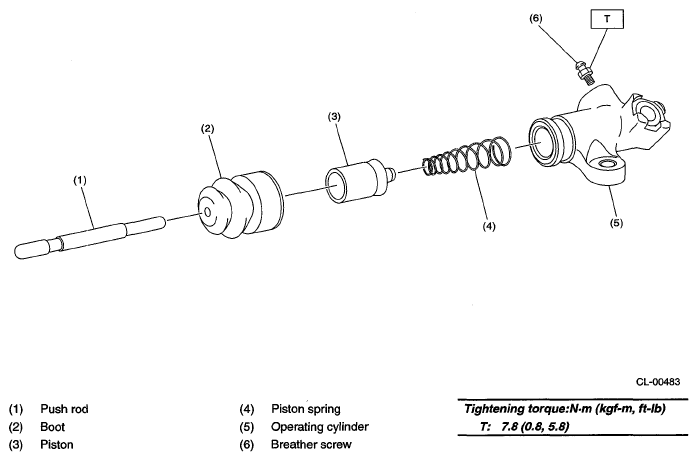

Fig 1: Operating Cylinder Replacement Components (Non-Turbo Model) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Turbo model

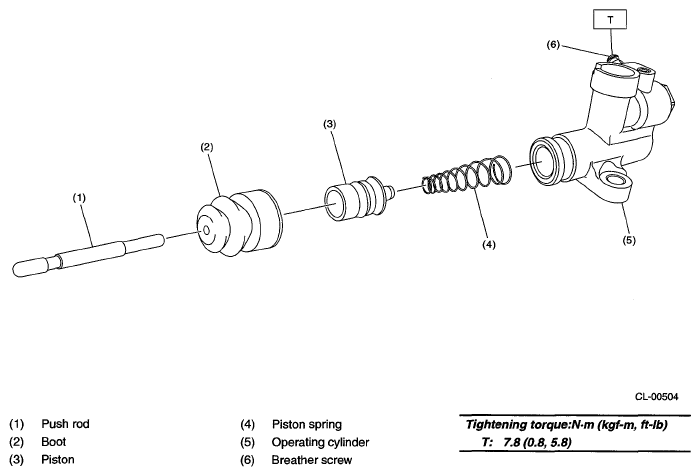

Fig 2: Operating Cylinder Replacement Components (Turbo Model) With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
