Network Architecture

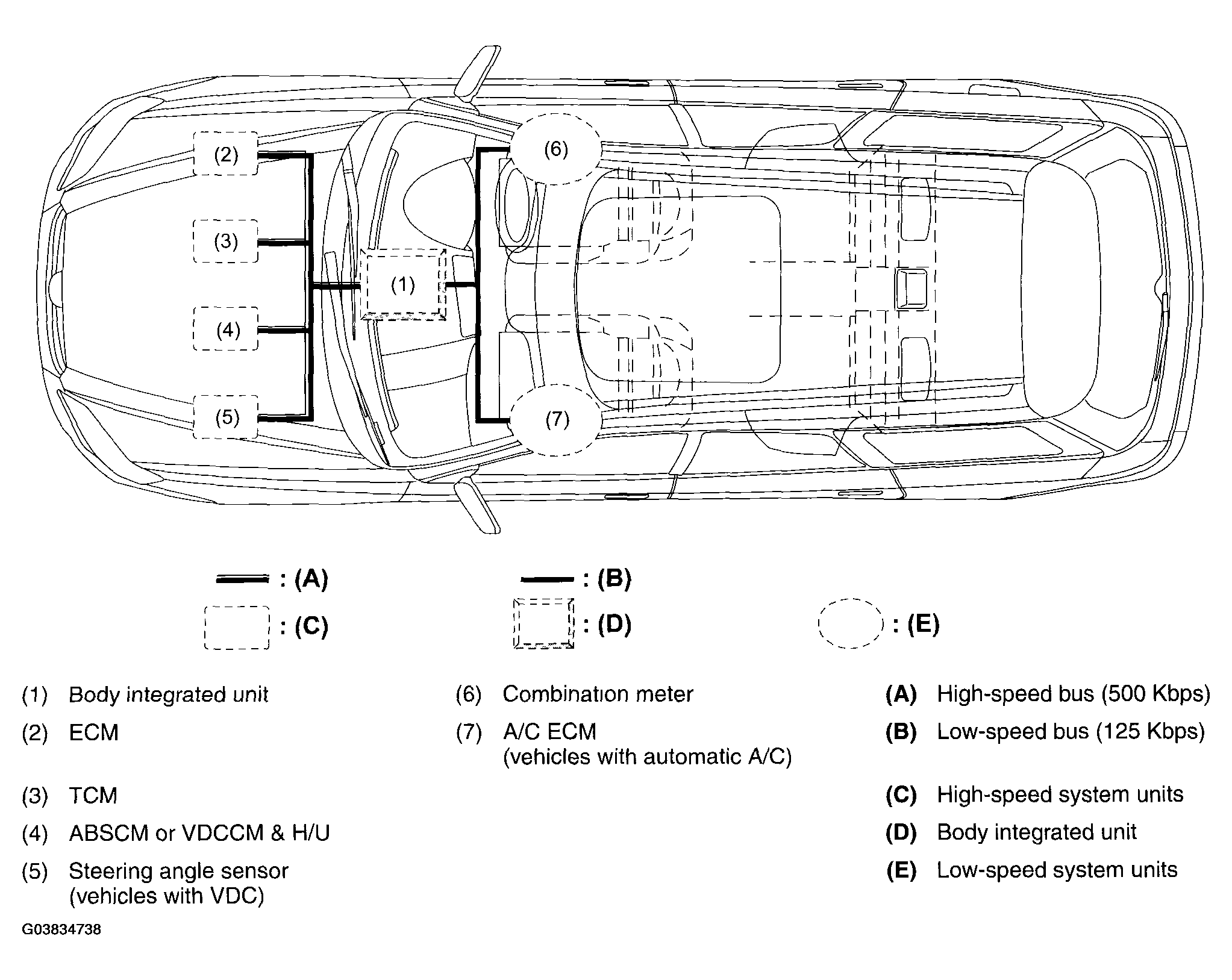

Fig 1: LAN Configuration Network Architecture View
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Bit rate 500 Kbps: The bit rate of 500 Kbps means that 500,000 bits of data are transmitted per second.
Bit rate 125 Kbps: The bit rate of 125 Kbps means that 125,000 bits of data are transmitted per second.
