Cruise Control System (Diagnostics): Electrical Component Location: Location

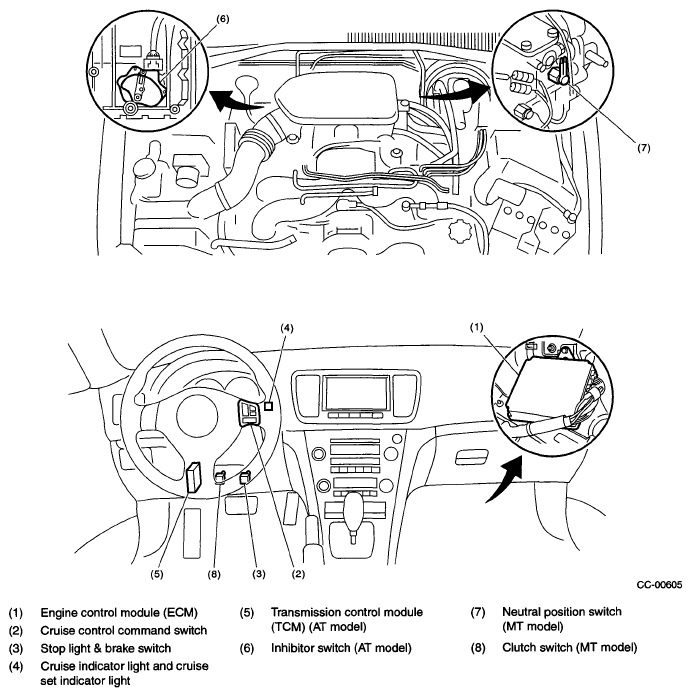

Fig 1: Identifying Cruise Control System Electrical Component Location
G05670210Courtesy of SUBARU OF AMERICA, INC.
