Mechanism & Function -- Clutch System
>>
Clutch
>>
Clutch Control System
>>
Turbo Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Turbo Models

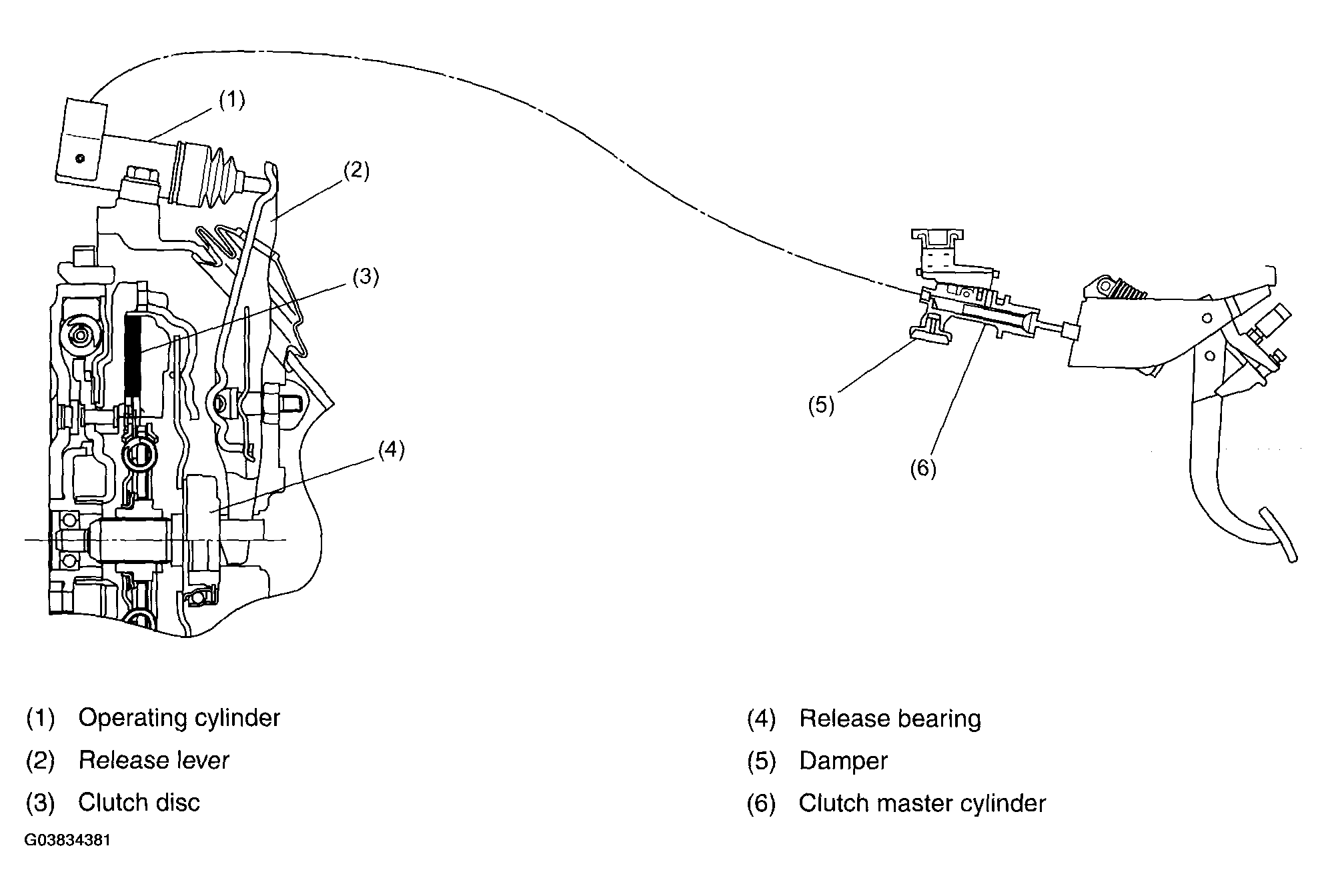

Fig 1: Identifying Components Of Clutch Control System (Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
