Conditions For VDC Sequence Control

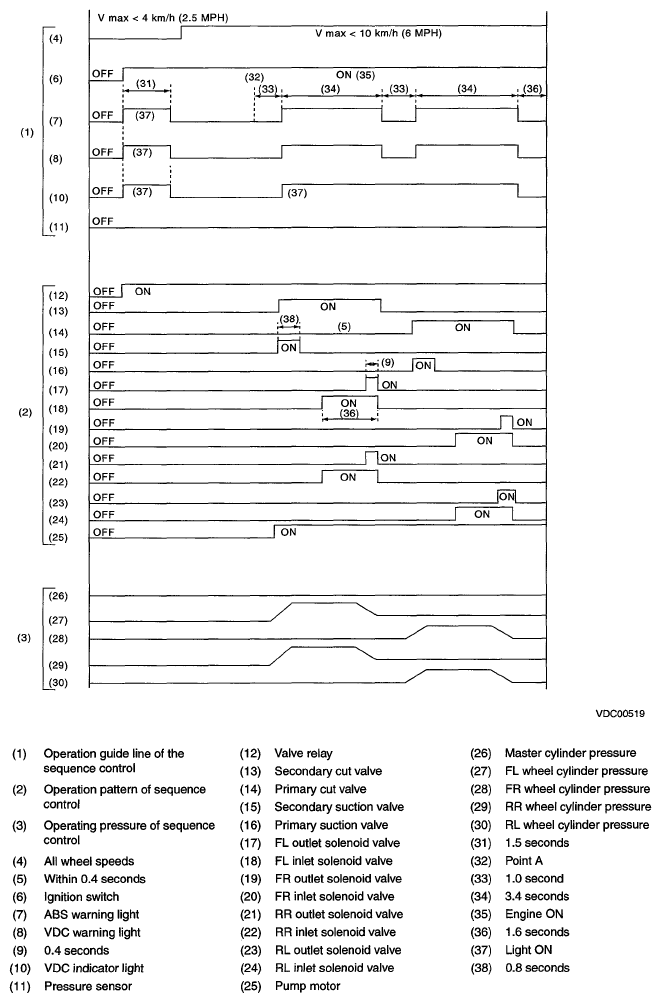

Fig 1: VDC Sequence Control Conditions Diagram

G05658054

NOTE: Operation starts from point A.
