Removal and Replacement

Starter

REMOVAL

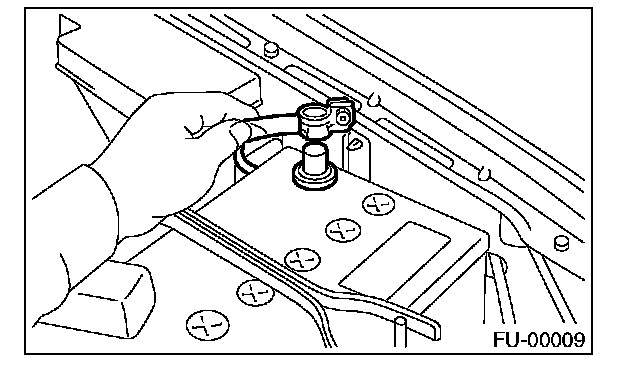

1. Disconnect the ground cable from the battery.






2. Remove the collector cover. (Turbo model)
3. Remove the air intake chamber. (Non-turbo model)
4. Remove the intercooler. (Turbo model)

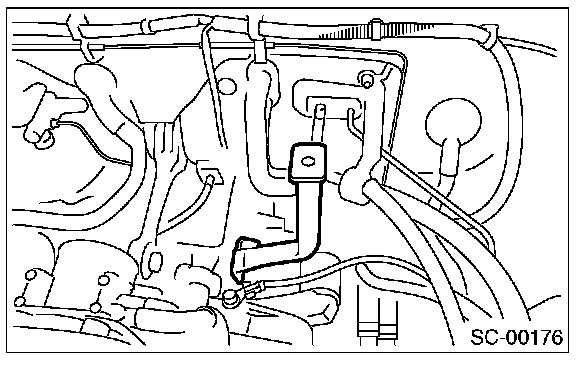

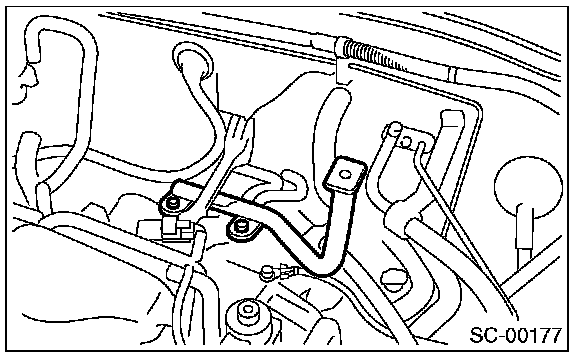

5. Remove the air intake chamber stay LH. (Nonturbo model)

- MT model






- AT model

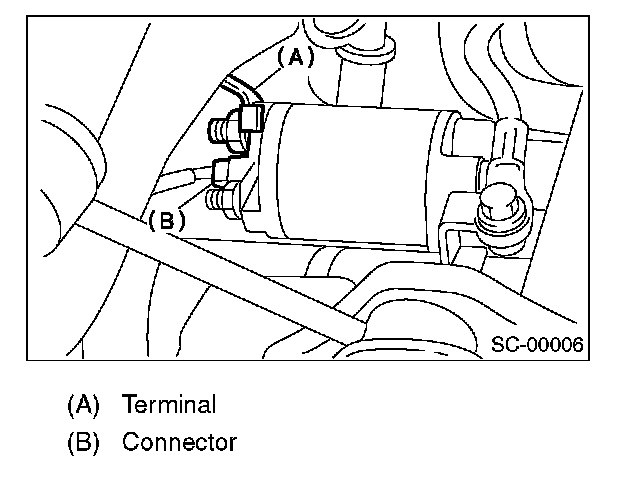

6. Disconnect the connector and terminal from starter.

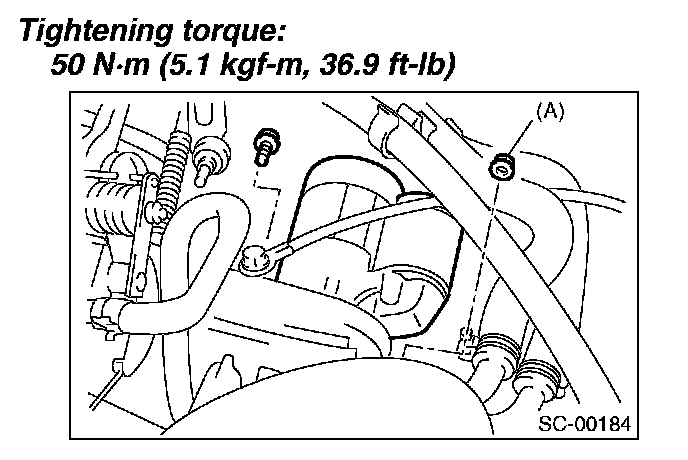

7. Remove the starter from transmission.

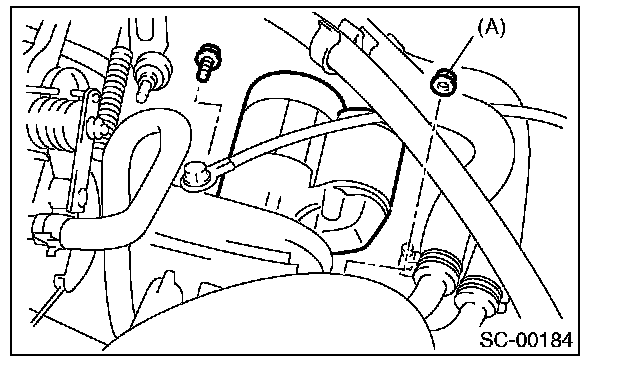

NOTE: For MT model, the bolt is used in place of nut (A) shown in the figure.






INSTALLATION
Install in the reverse order of removal.

NOTE: For MT model, the bolt is used in place of nut (A) shown in the figure.
