Check Up/Down Switch

CHECK UP/DOWN SWITCH
DIAGNOSIS:
Input signal circuit of the UP/DOWN switch is open or shorted.

TROUBLE SYMPTOM:
Does not shift on manual mode.

WIRING DIAGRAM:

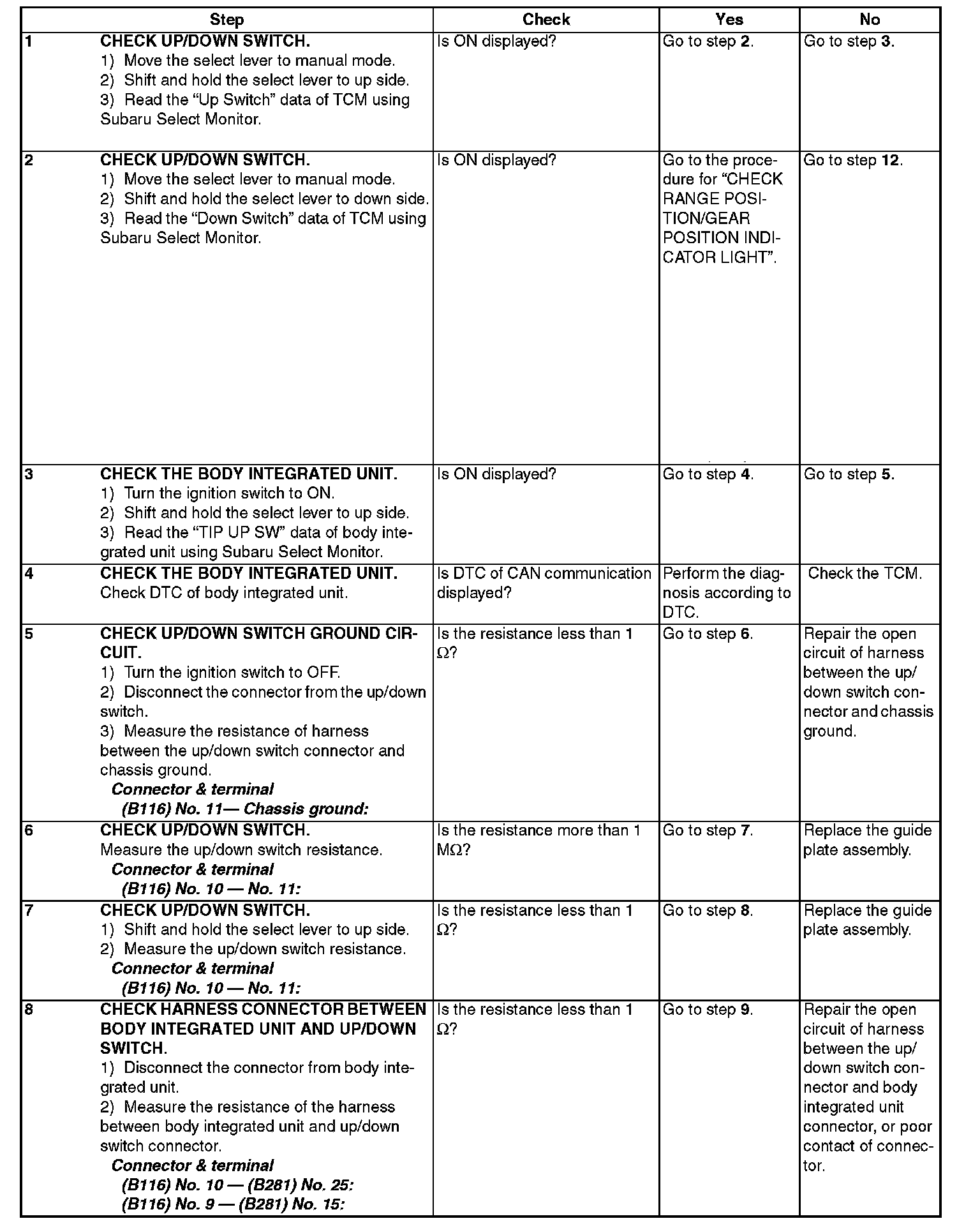

Step 1-Step 8:

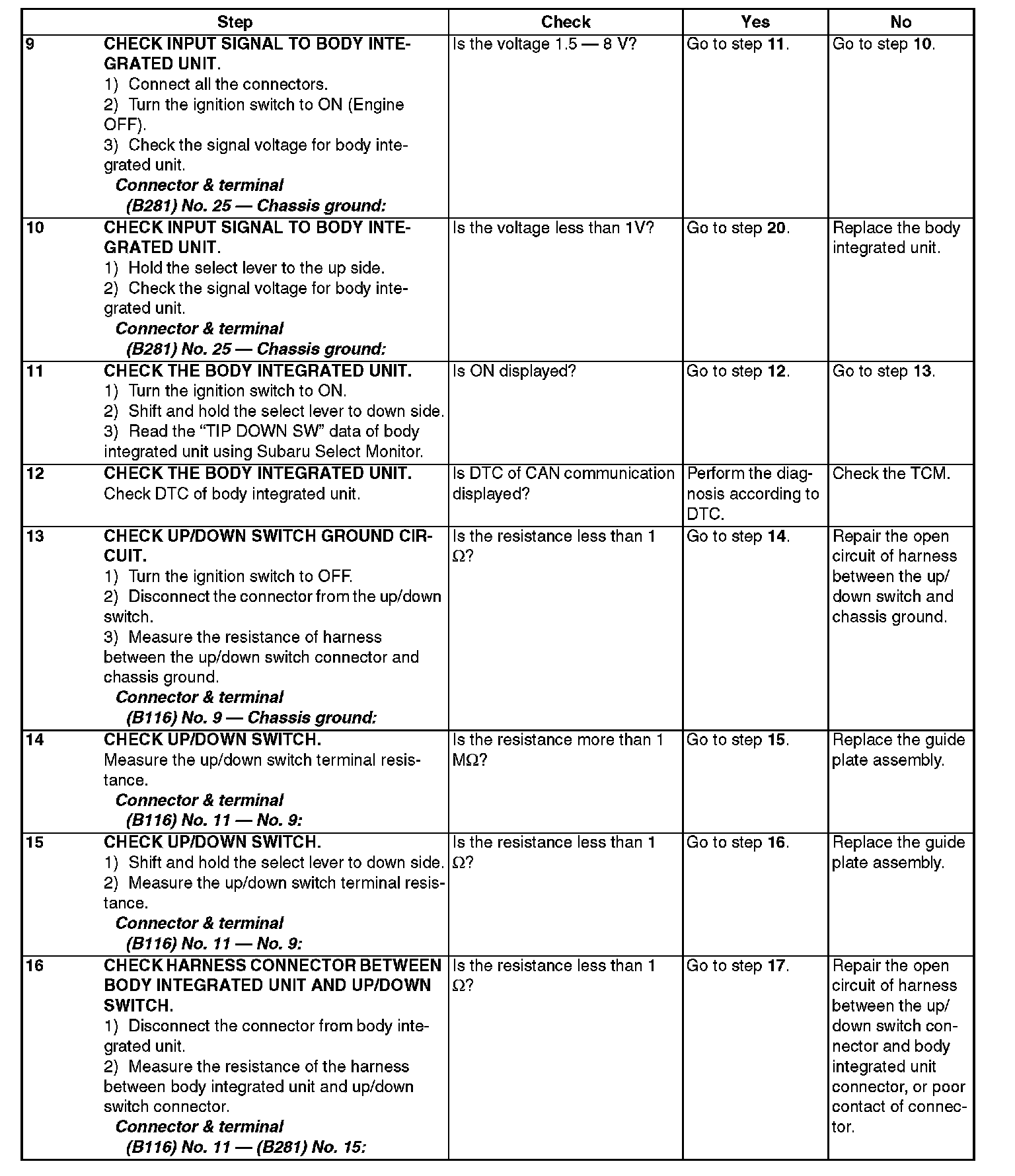

Step 9-Step 16:

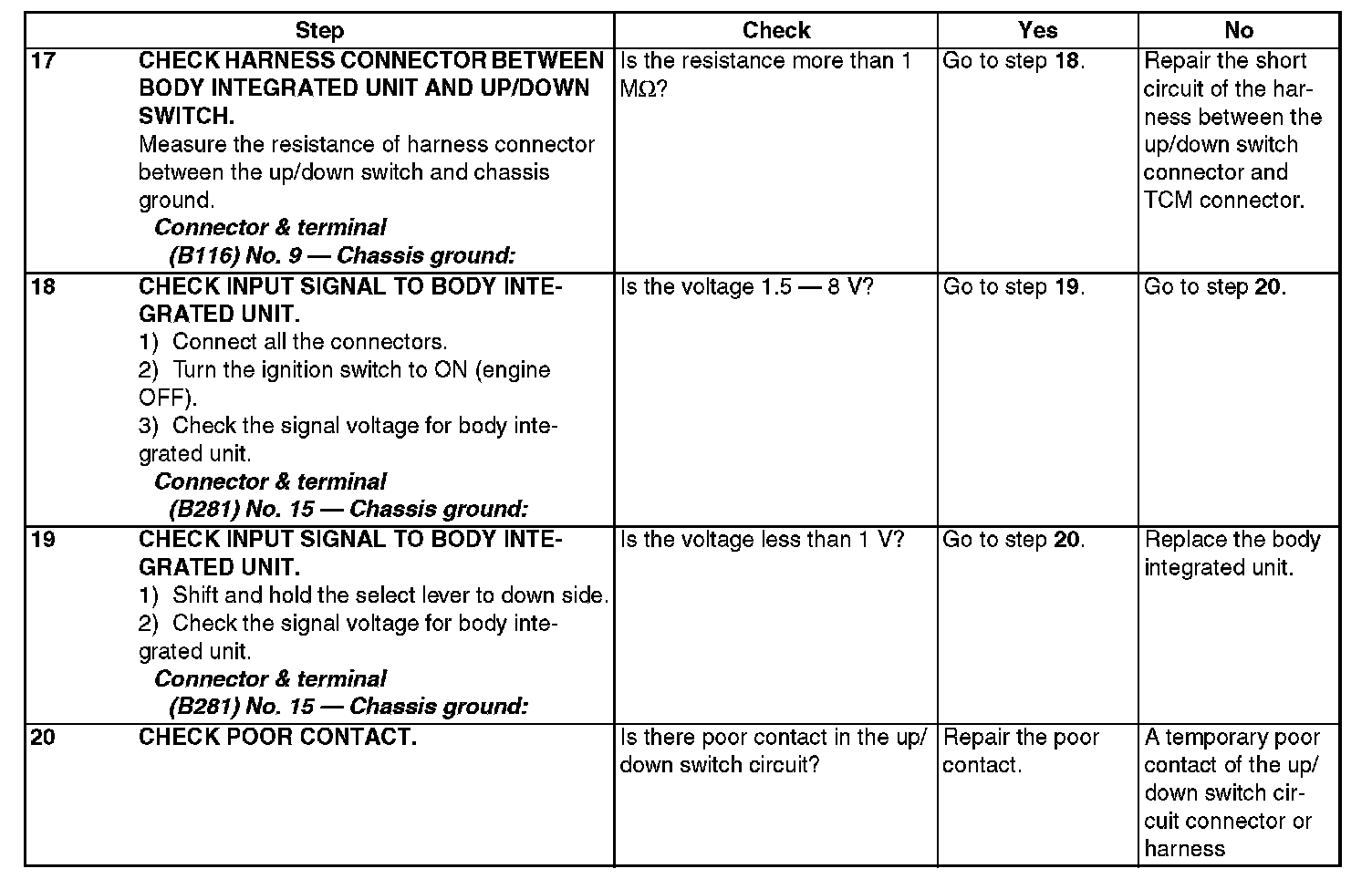

Step 17-Step 20:
