Check Range Position/Gear Position Indicator Light

CHECK RANGE POSITION/GEAR POSITION INDICATOR LIGHT

DIAGNOSIS:
Output signal circuit of the range position/gear position indicator light is open or shorted.

TROUBLE SYMPTOM:
^ Range position/gear position indicator light does not illuminate or remains illuminated.
^ Cannot understand range position/gear position indicator light display.

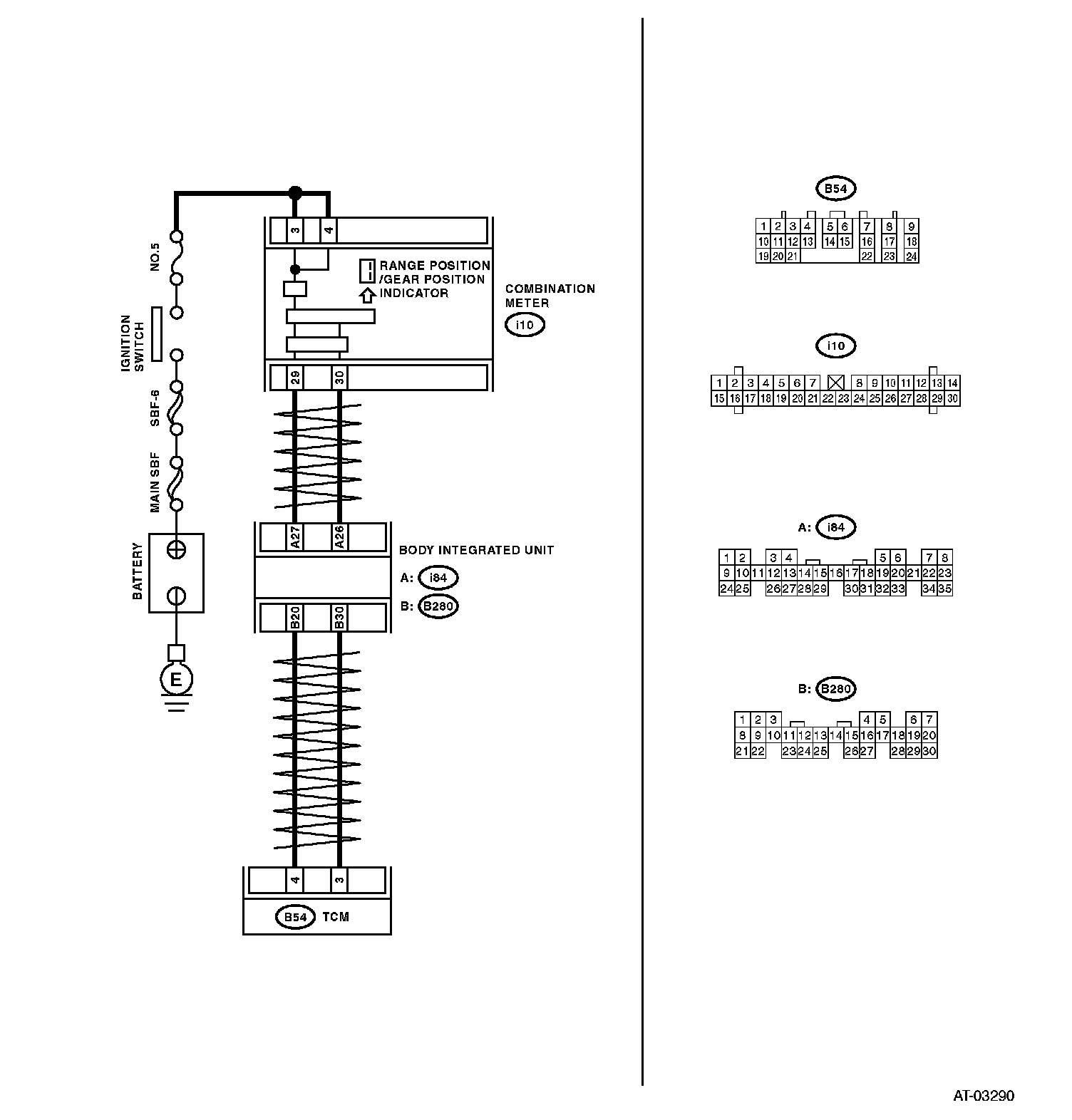

WIRING DIAGRAM:

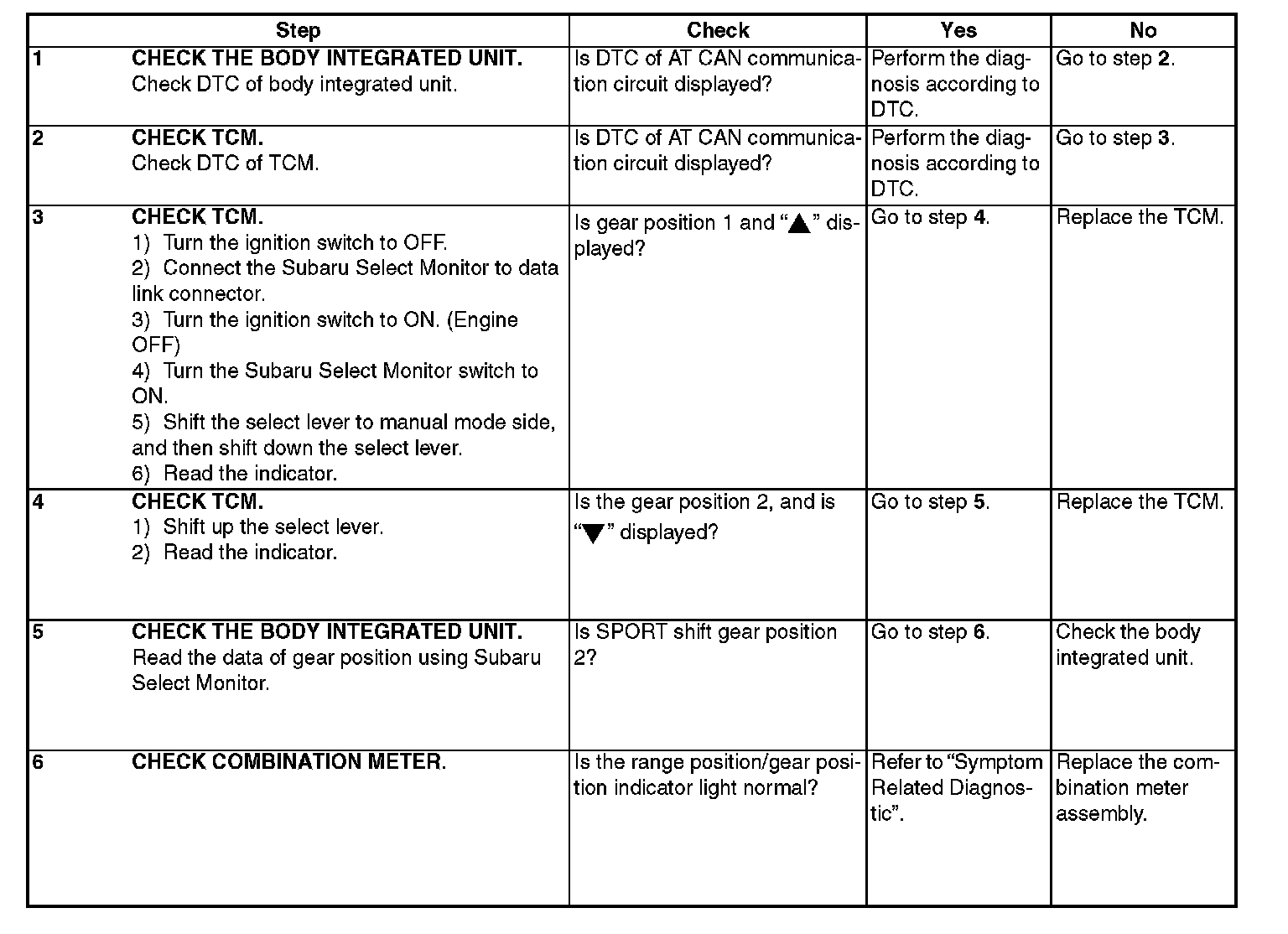

Step 1-Step 6:
