Power Assisted System

Hose and tank

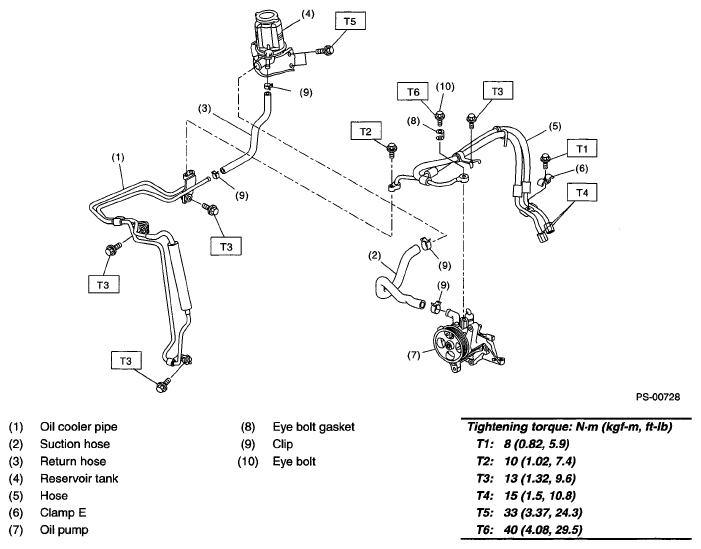

Fig 1: Exploded View Of Hose And Tank With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Gearbox

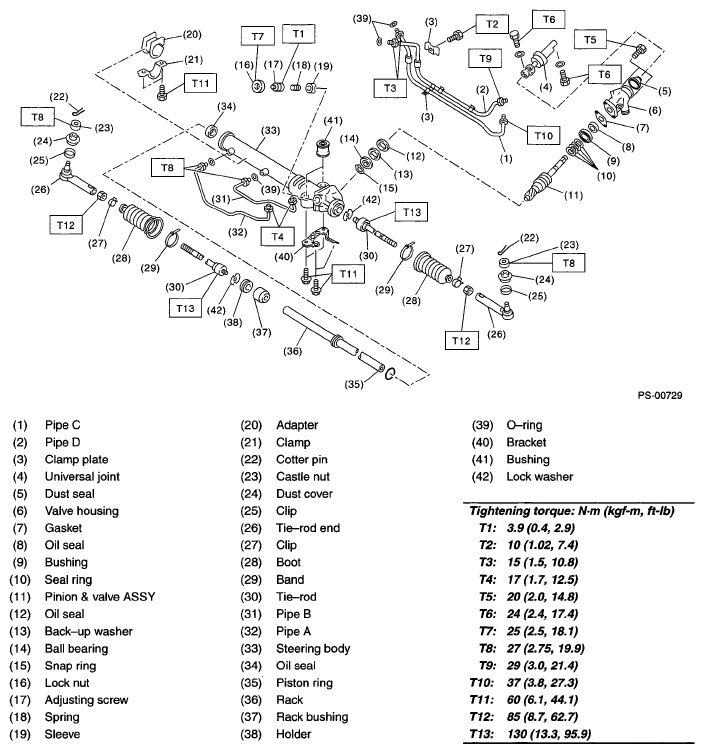

Fig 2: Exploded View Of Gearbox With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
