Occupant Detection System (Diagnostics): Electrical Component Location: Location

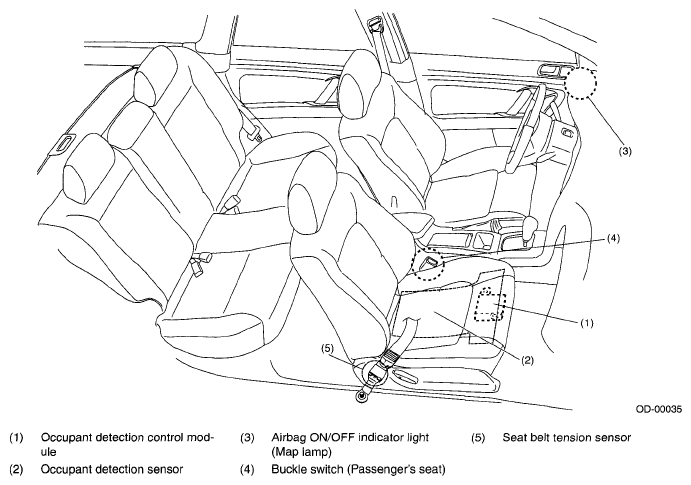

Fig 1: Identifying Occupant Detection Control Module Component Location (1 Of 2)

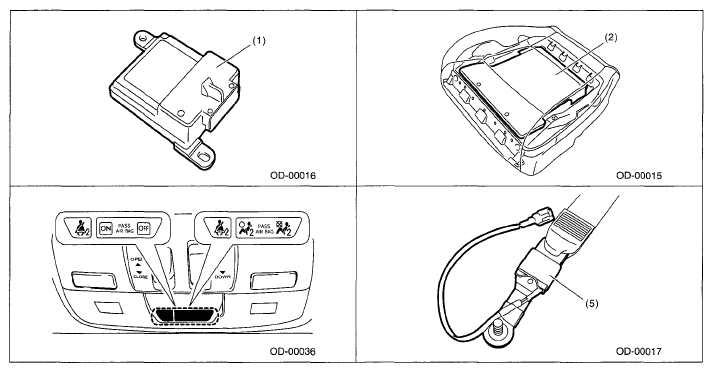

Fig 2: Identifying Occupant Detection Control Module Component Location (1 Of 2)
