System Specifications

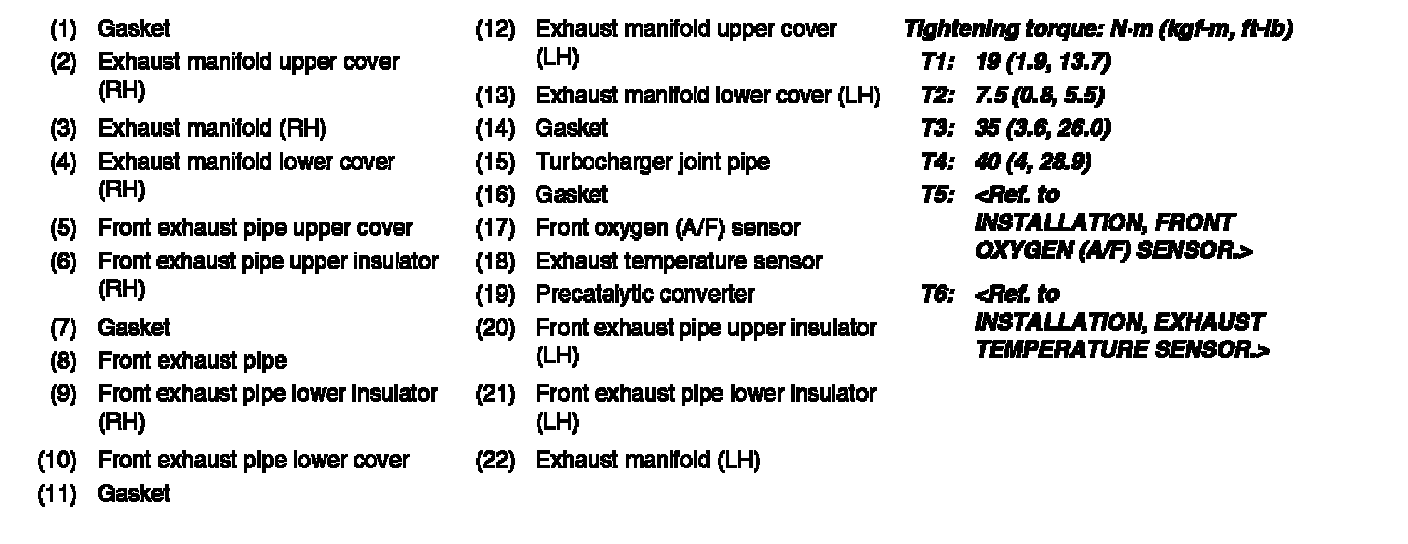

Part 1:




Part 2:

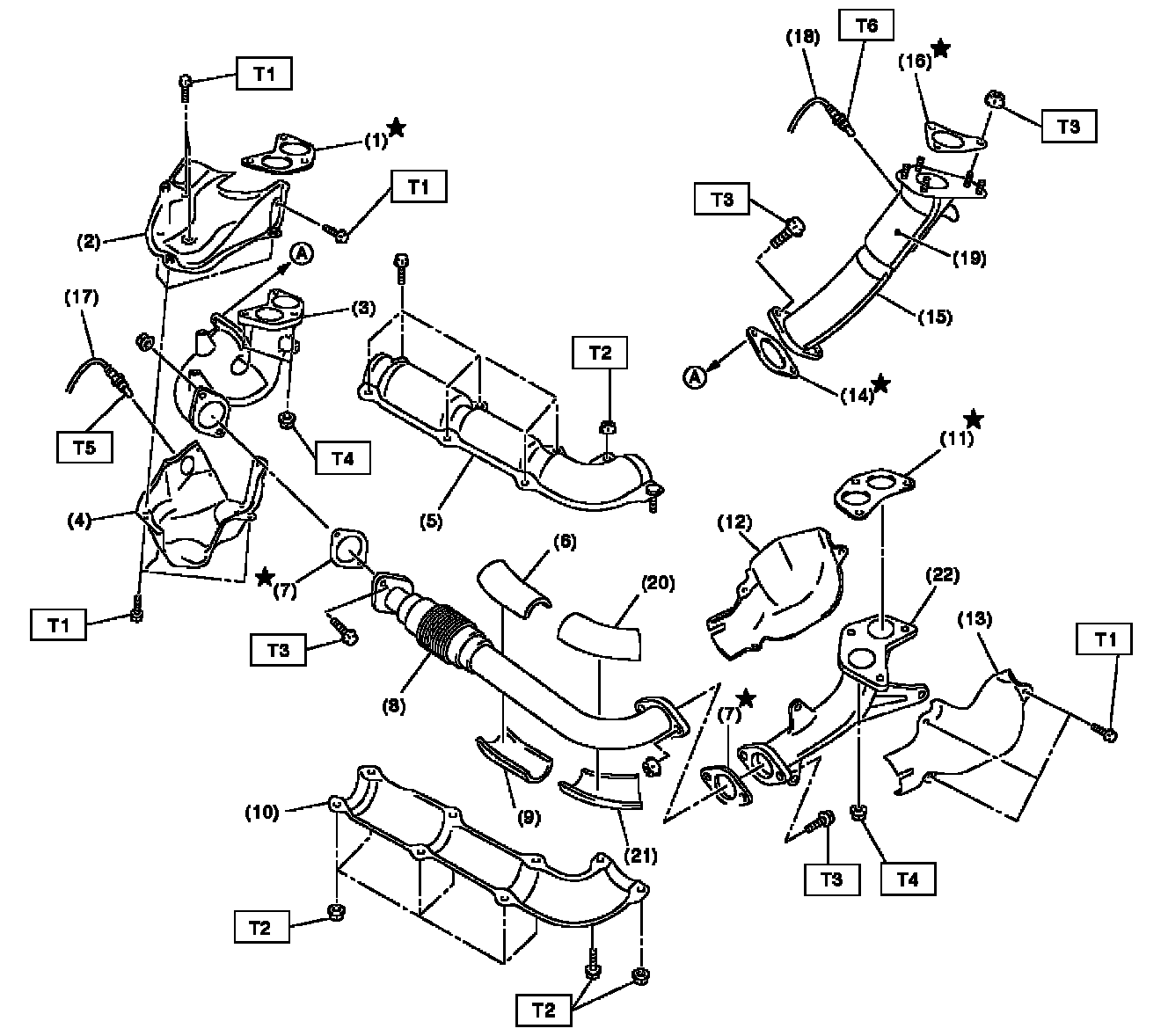

Front Exhaust Pipe

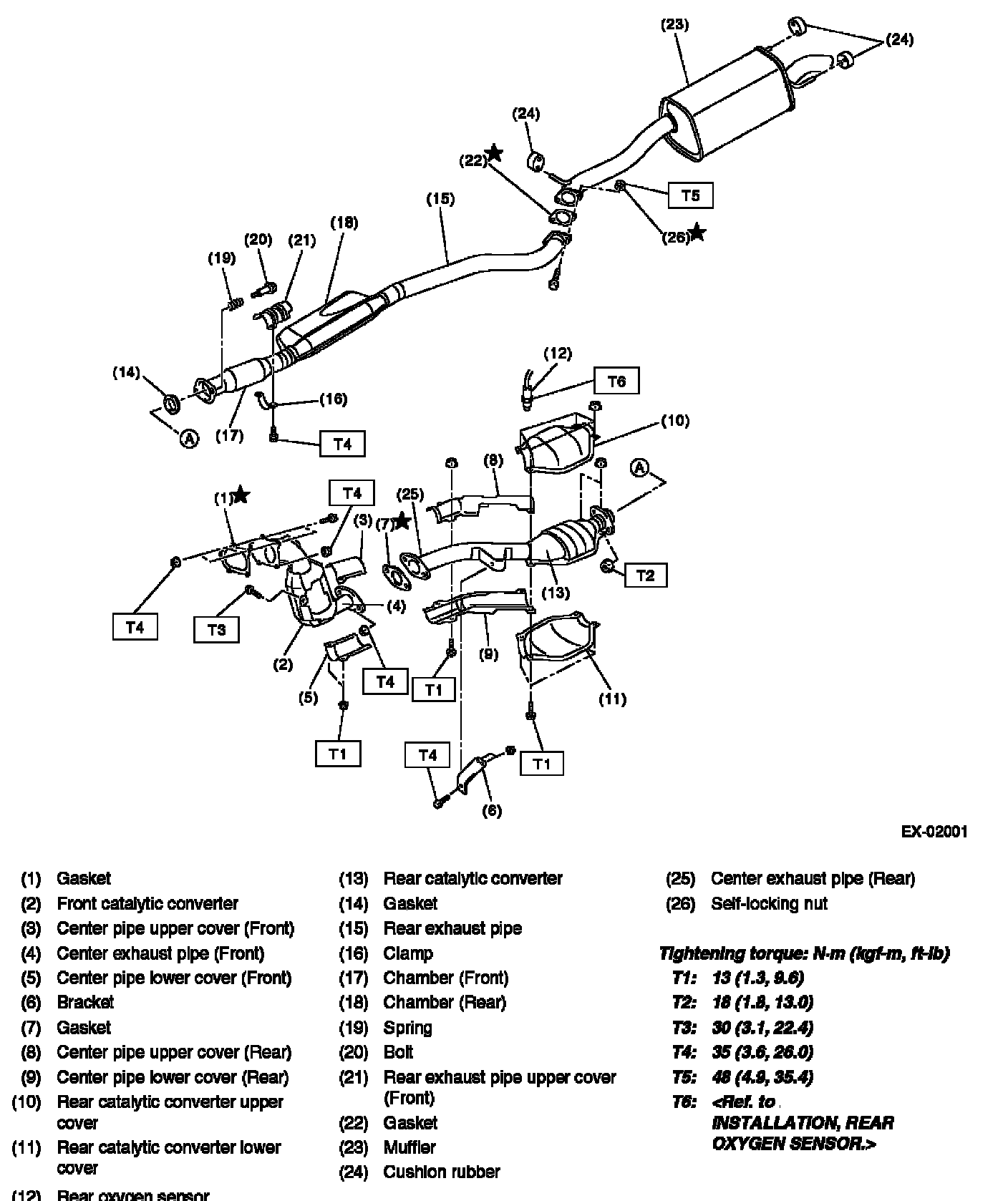

Center and Rear Exhaust Pipe, and Muffler
