Communication for Initializing Impossible

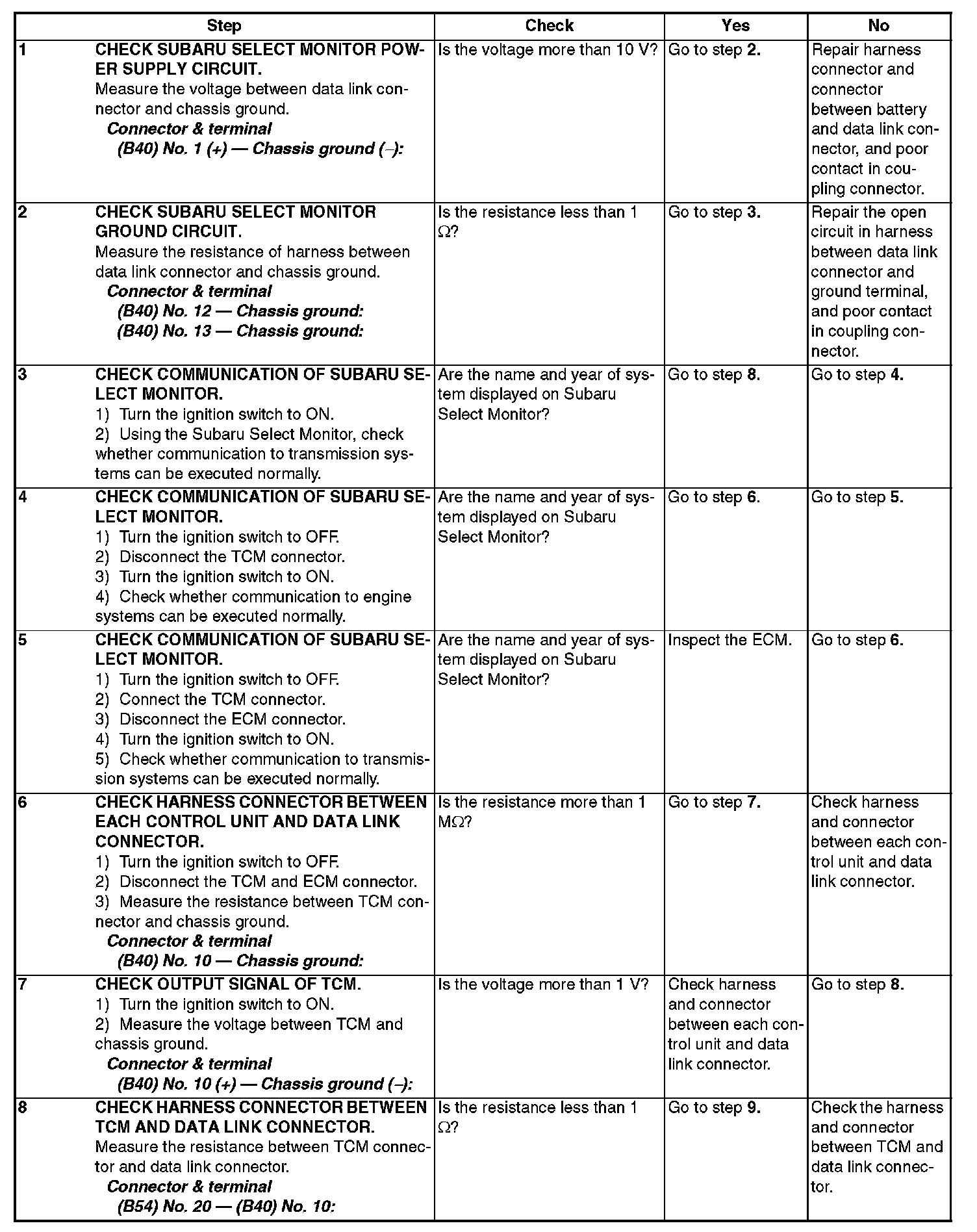

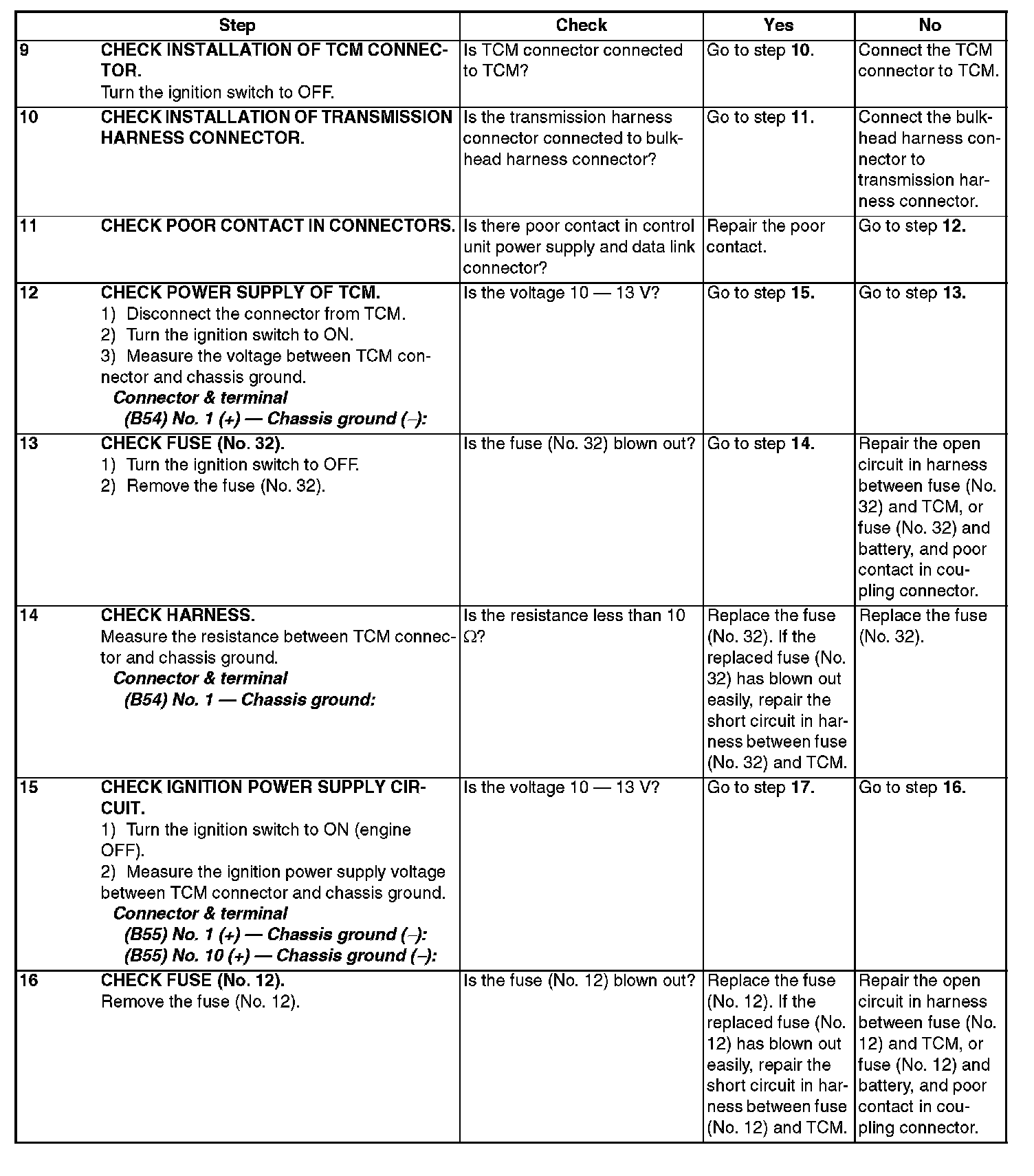

Diagnostic Procedure for Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS
Faulty harness connector

TROUBLE SYMPTOM
Subaru Select Monitor communication failure

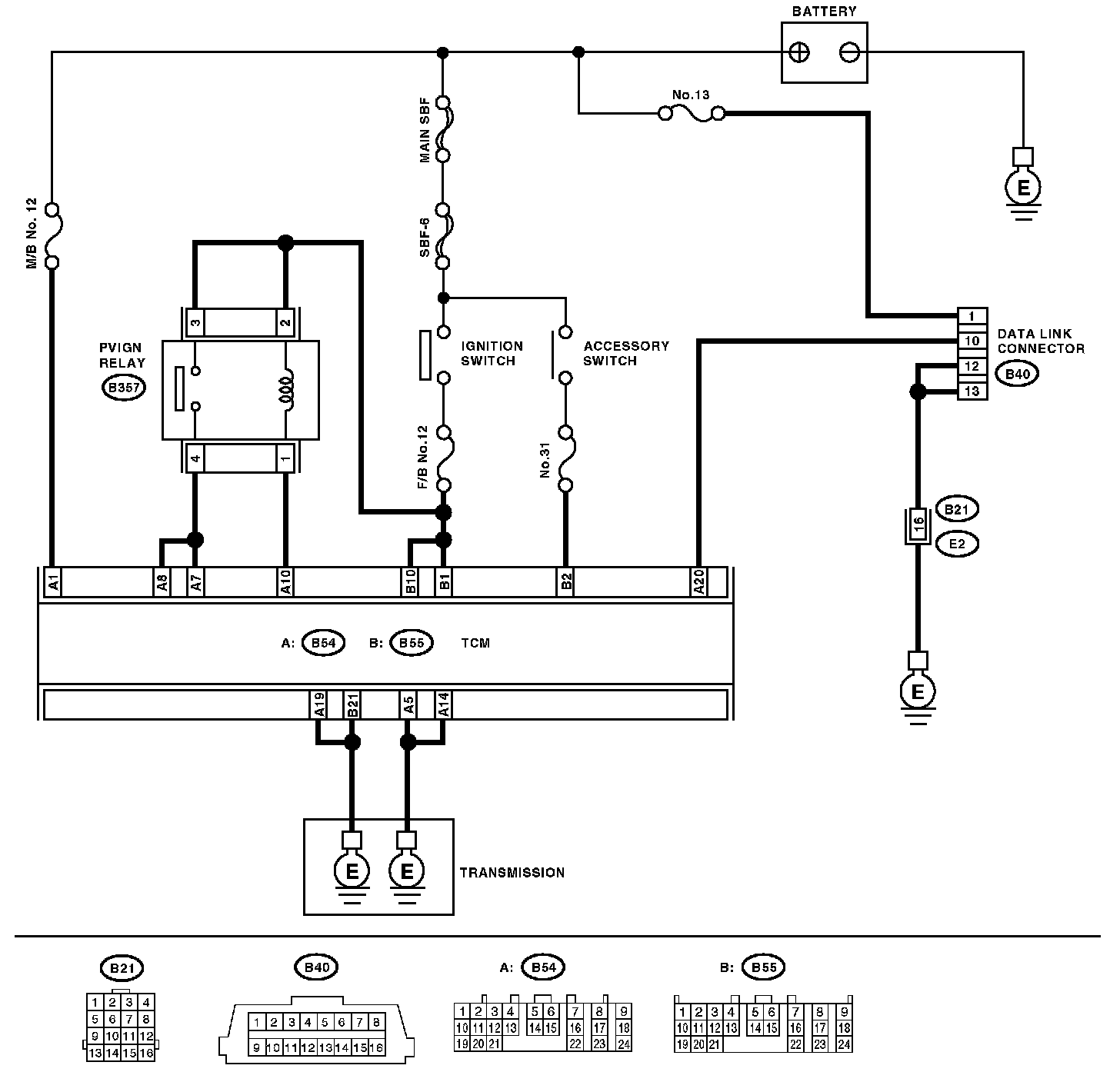

WIRING DIAGRAM
