Check Manual Mode Switch

CHECK MANUAL MODE SWITCH

DIAGNOSIS
^ Input signal circuit of manual mode switch is open or shorted.

TROUBLE SYMPTOM
^ Does not shift on manual mode.

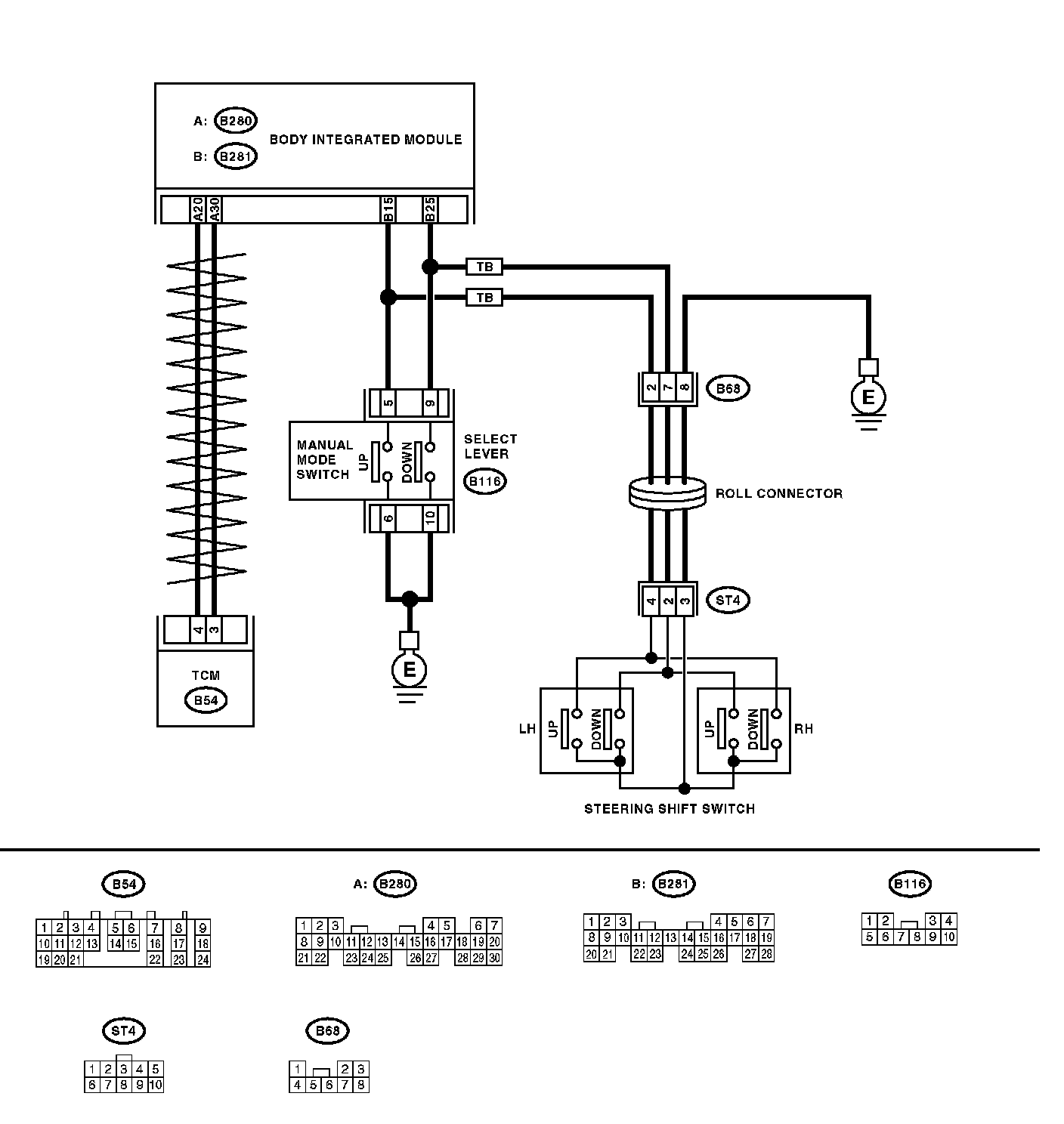

WIRING DIAGRAM
