Subaru
>>
2006
>>
Outback F6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Main Shaft Assembly For Single-Range
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

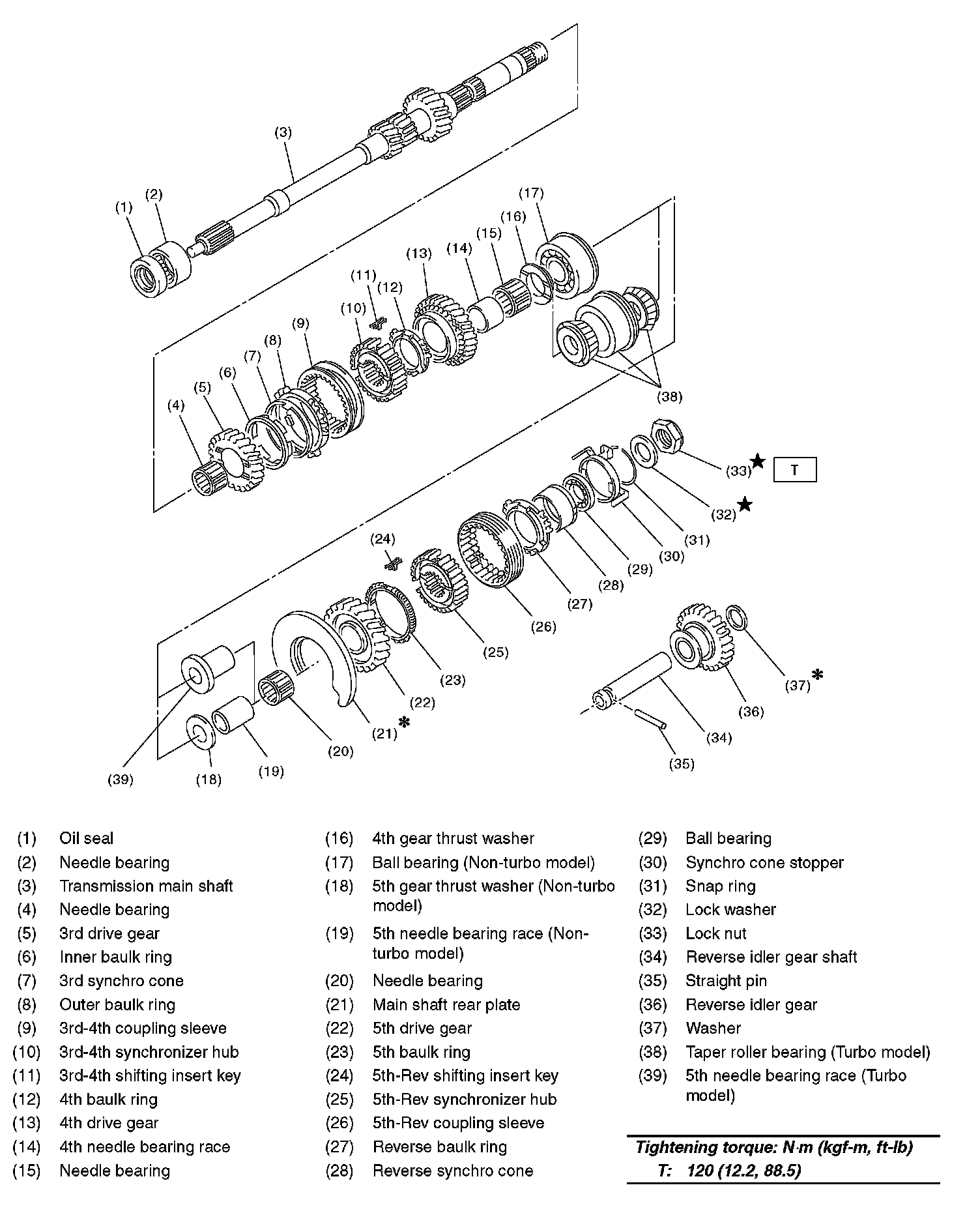

Main Shaft Assembly For Single-Range
