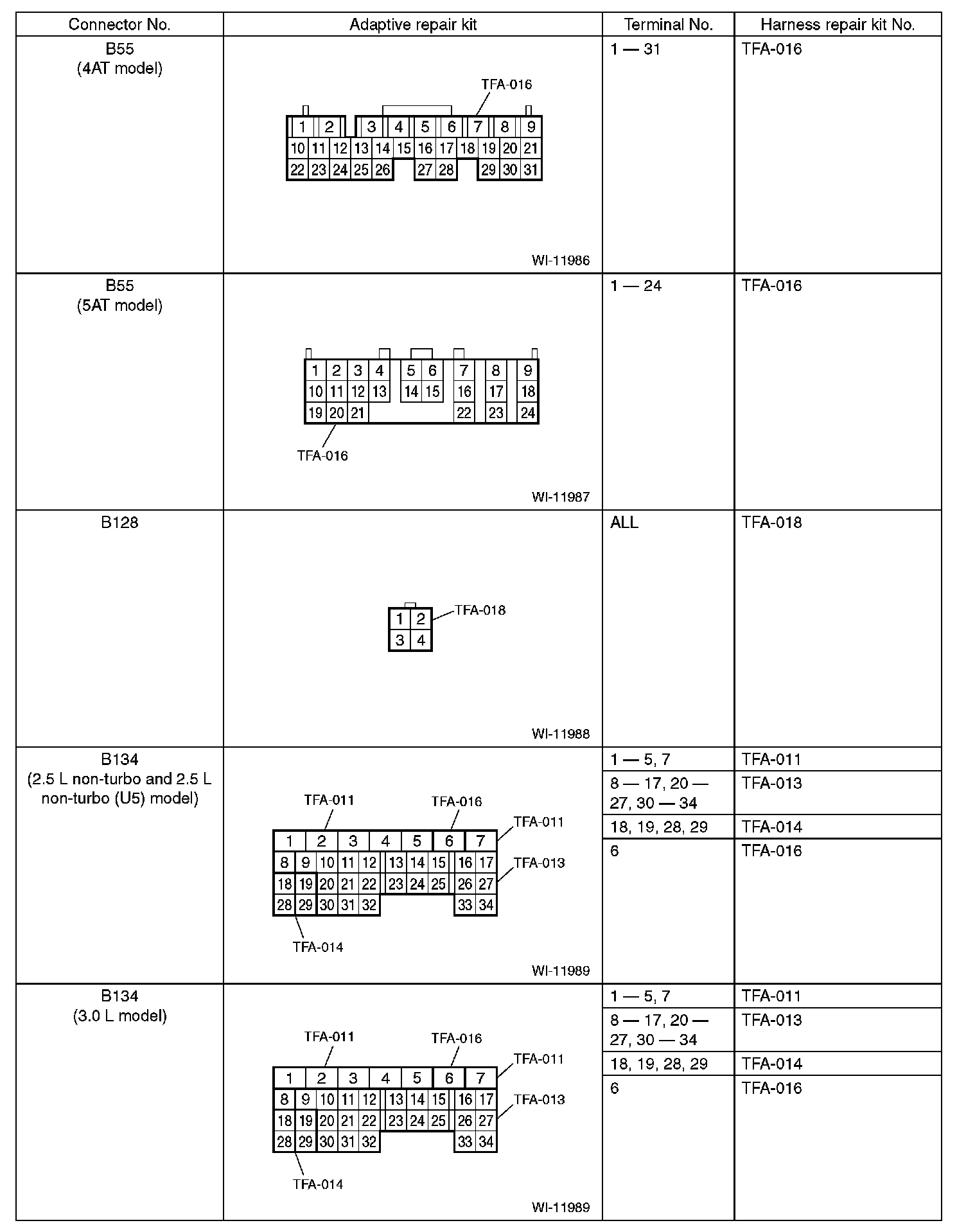

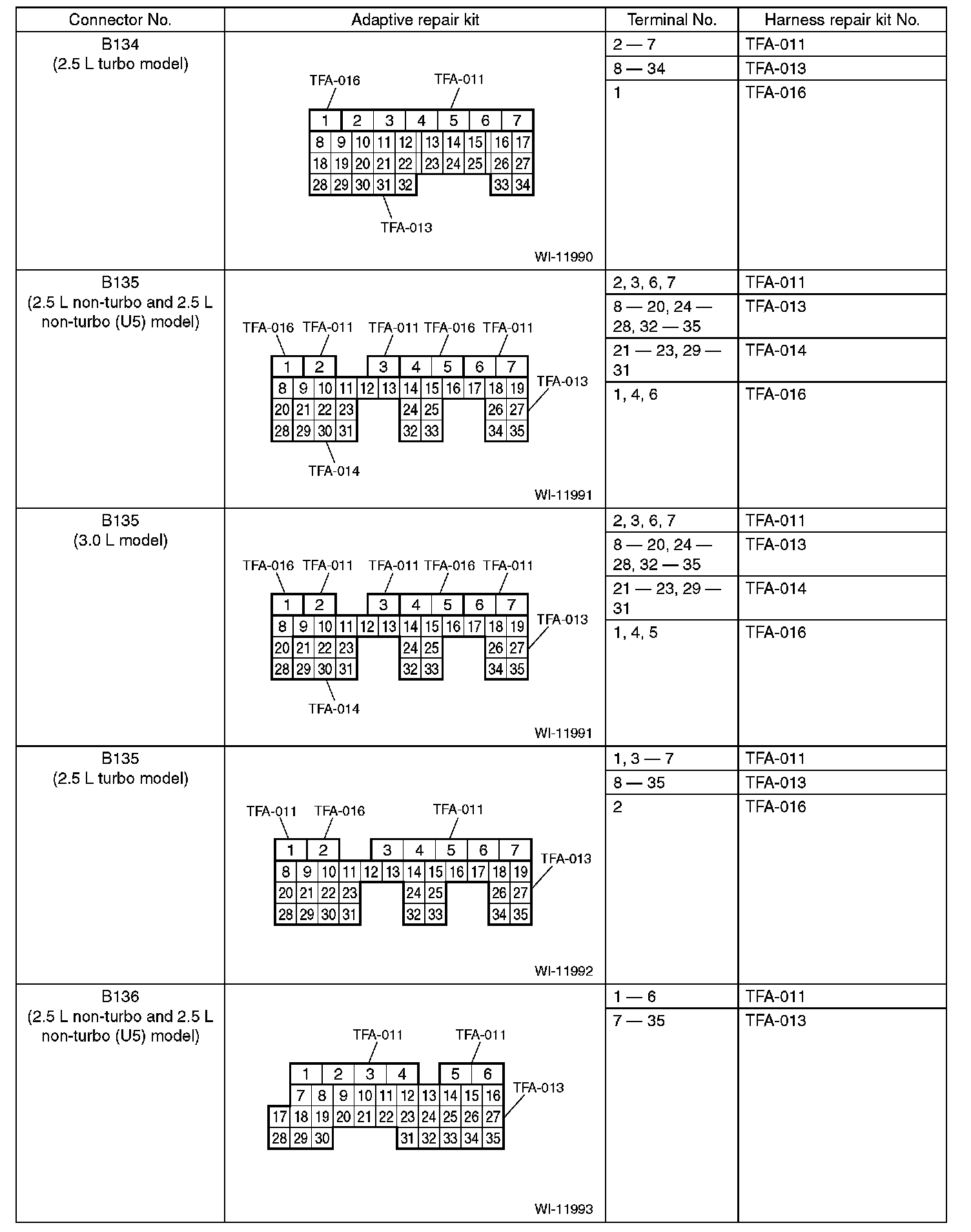

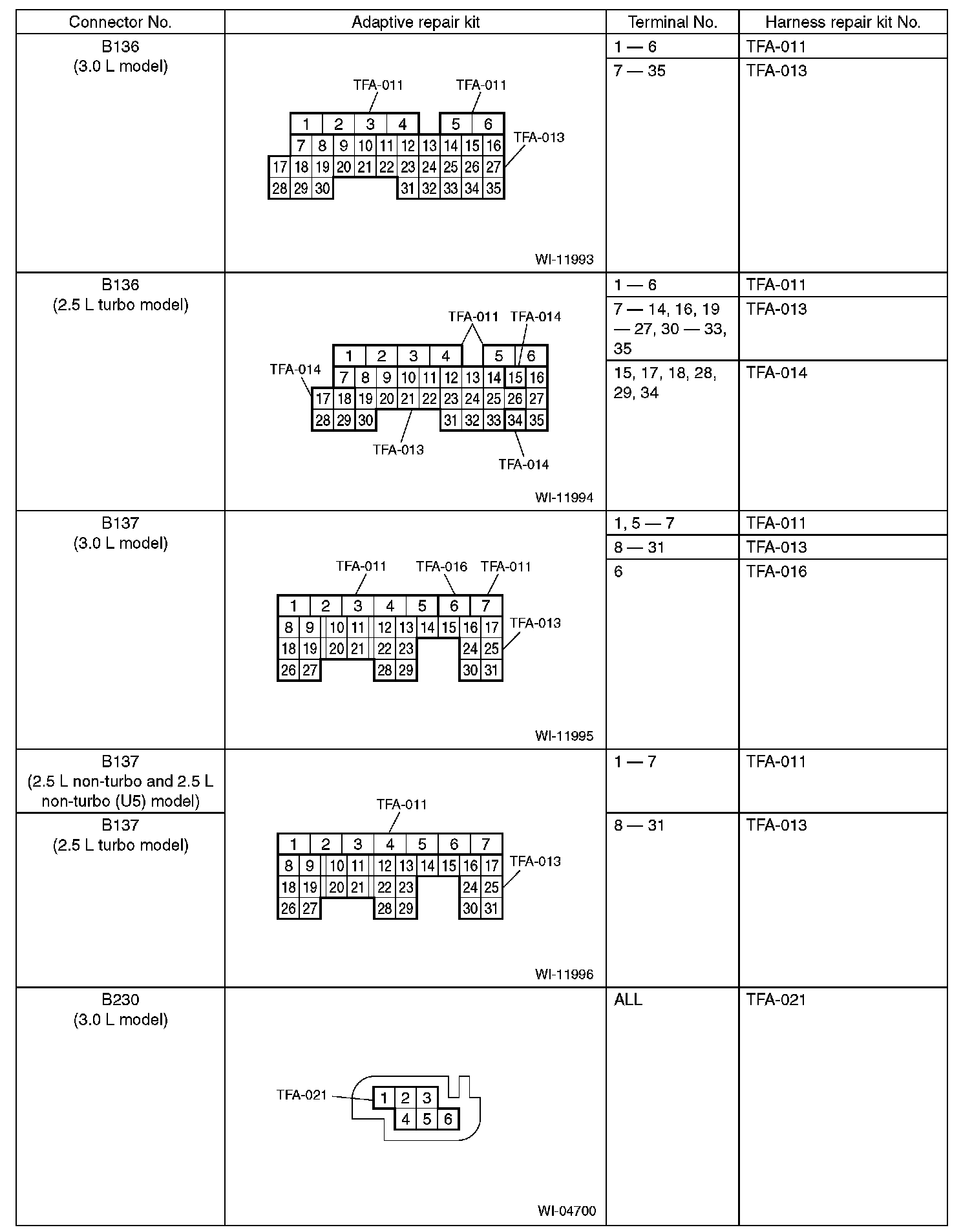

OE Harness Connector Repair Kits

Harness Repair Kit

SPECIFICATION

B3-B11:




B12-B54:




B55-B134:




B134-B136:




B136-B230:




B280-B348:




B350-J6:




J26-R122:
