Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

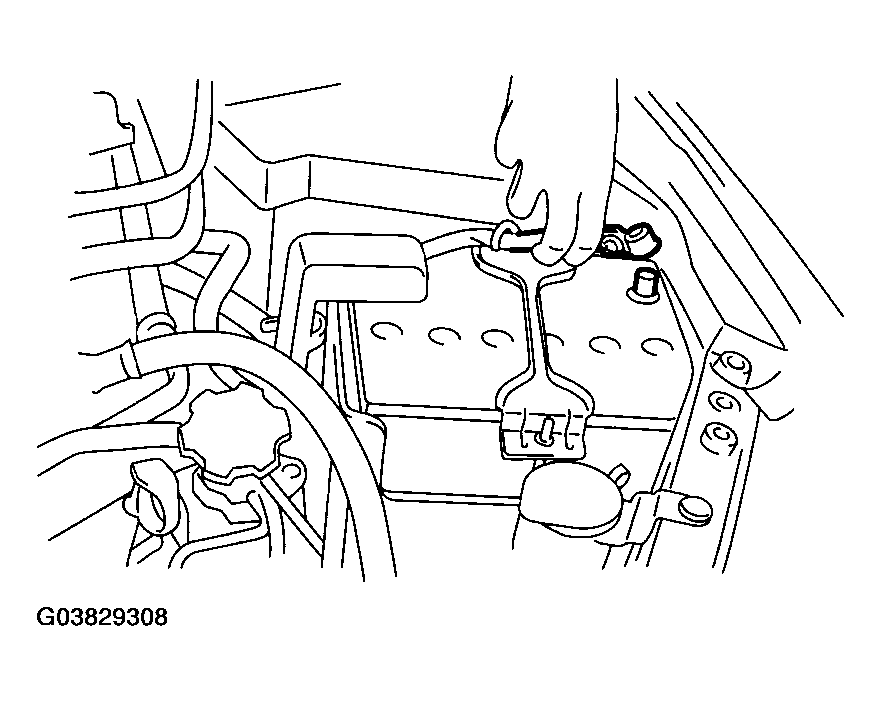

    Fig 1: Disconnecting Ground Cable From Battery
    G03829308Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow and intake air temperature sensor.
  3. Remove the mass air flow and intake air temperature sensor.

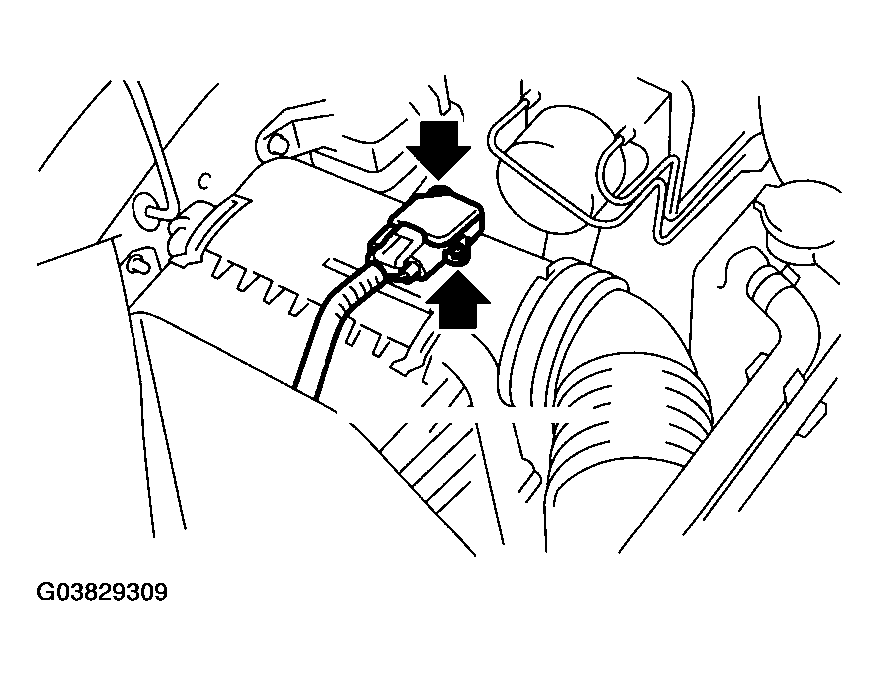

Fig 2: Disconnecting Connector From Mass Air Flow And Intake Air Temperature Sensor
G03829309Courtesy of SUBARU OF AMERICA, INC.
