Yaw Rate and Lateral G Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the console box.

    < Ref. to CONSOLE BOX . >

  3. Disconnect the connector from the yaw rate and lateral G sensor.
  4. Remove the yaw rate and lateral G sensor.
CAUTION: Do not drop or bump the yaw rate and lateral G sensor.

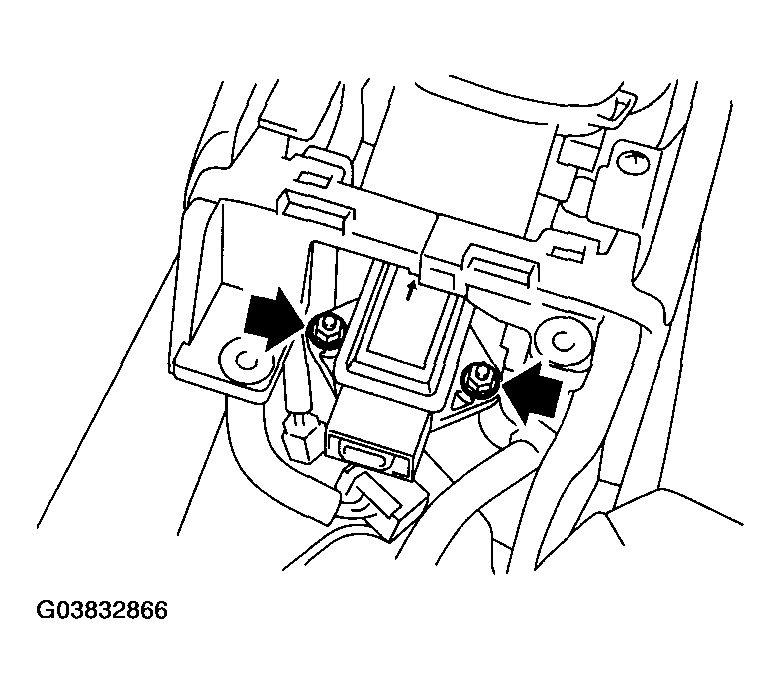

Fig 1: Removing Yaw Rate And Lateral G Sensor
G03832866Courtesy of SUBARU OF AMERICA, INC.
