Engine Mounting

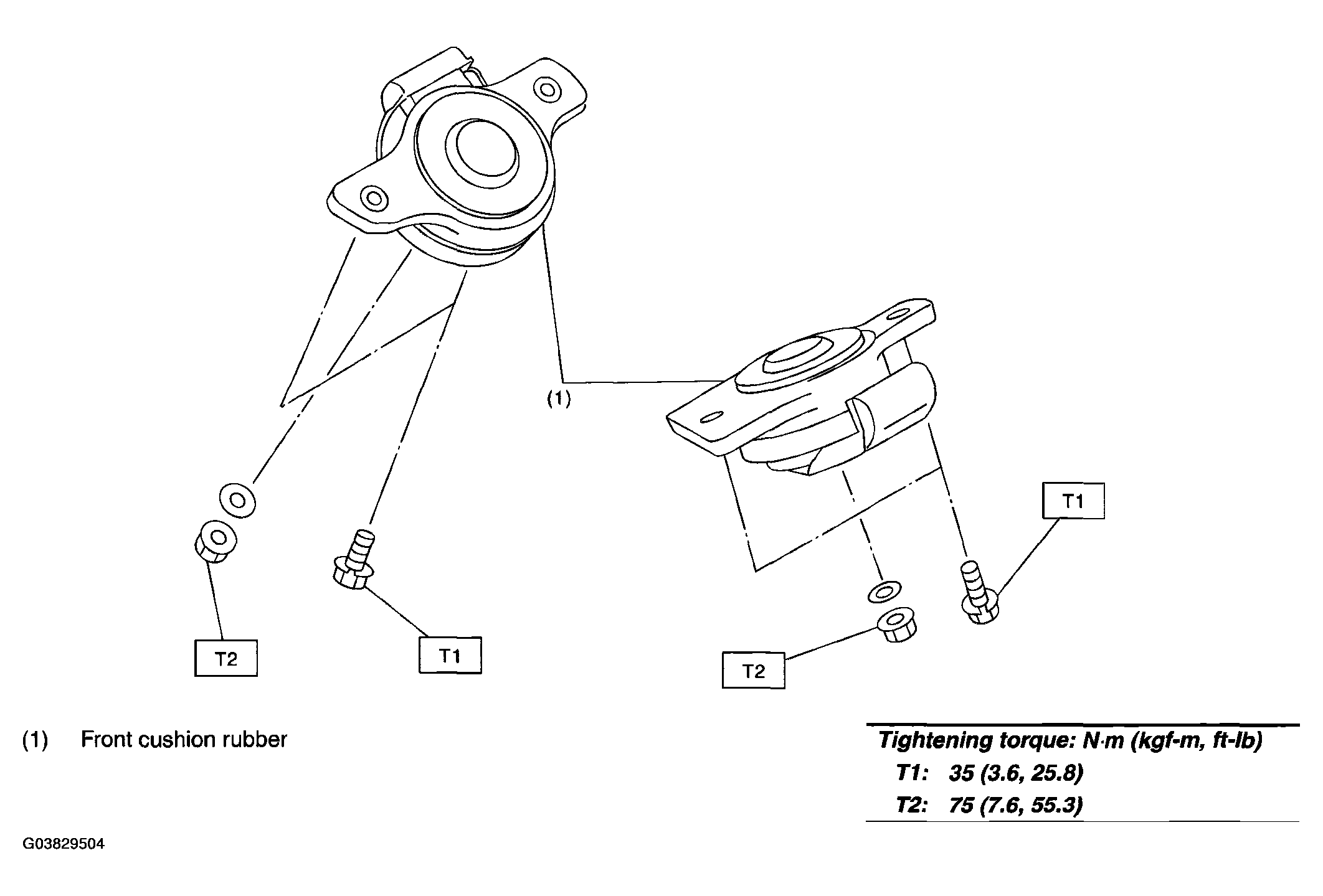

Fig 1: Front Cushion Rubber With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
