Illumination Control Of Various Indicators

Illuminations of the various indicators on the combination meter are controlled in accordance with the shift pattern selection as shown below.

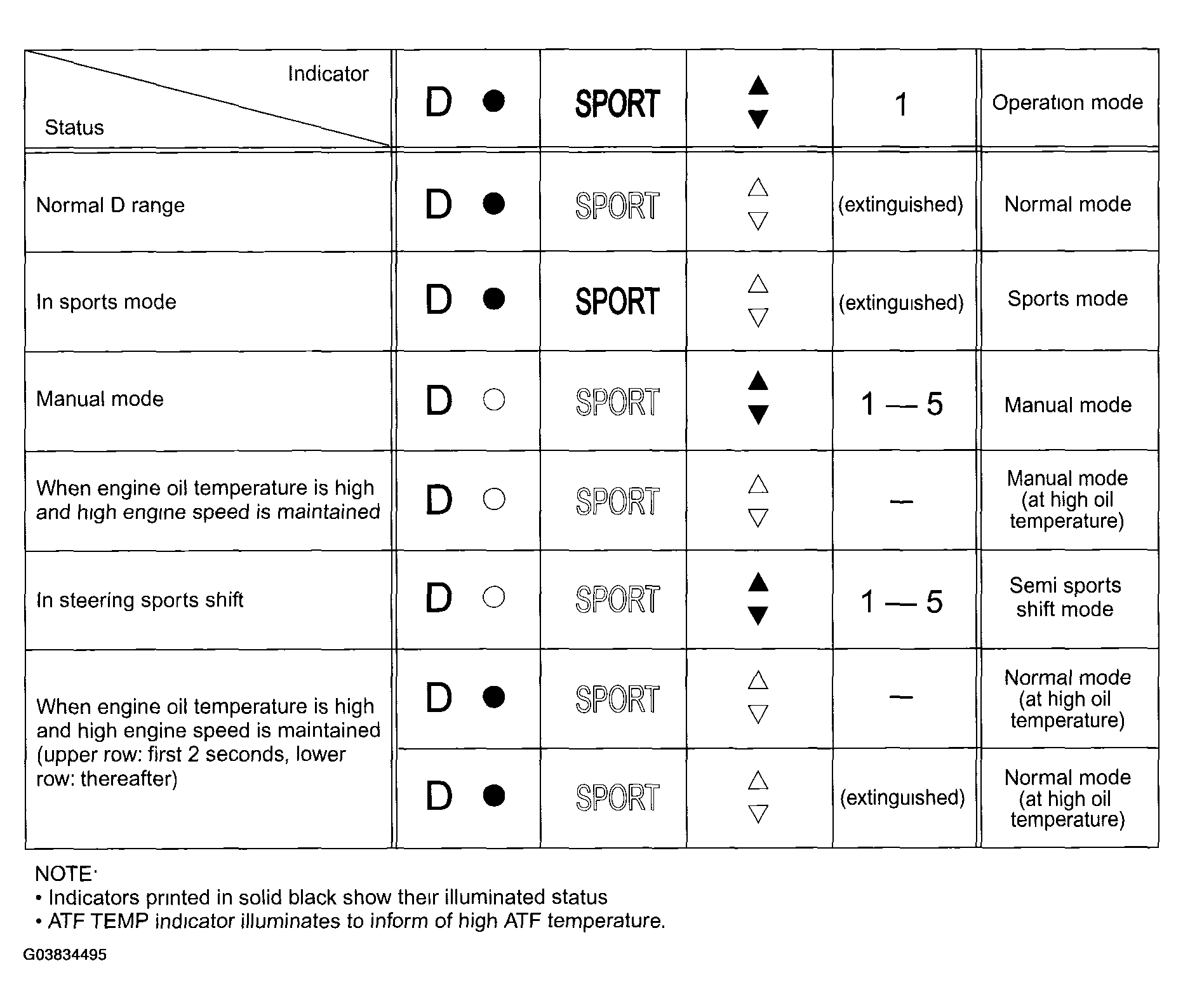

Fig 1: Illumination Control Of Various Indicators Chart
G03834495Courtesy of SUBARU OF AMERICA, INC.
