Lateral G Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

T1: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

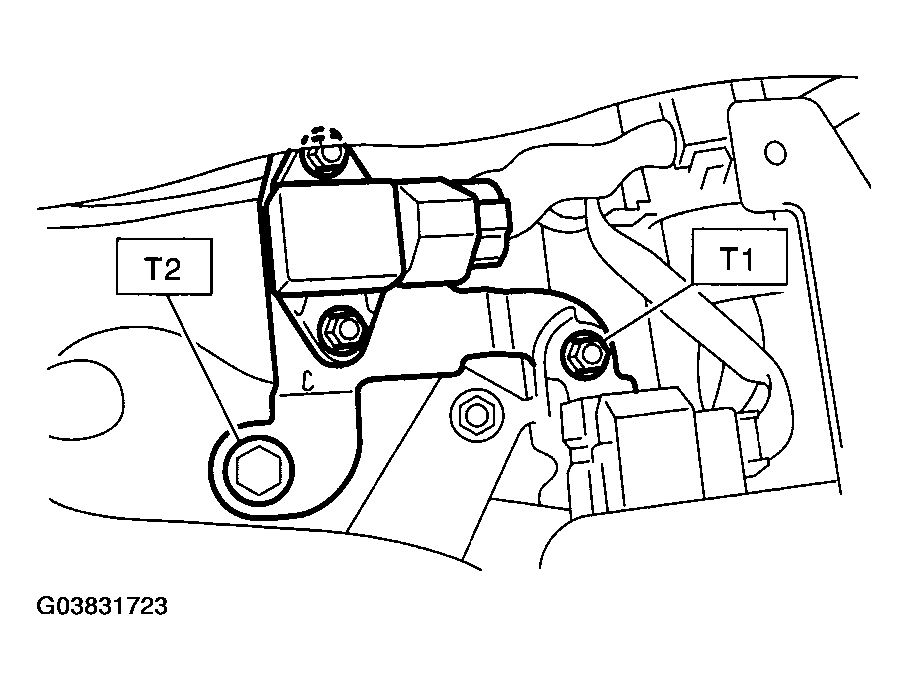

Fig 1: Connecting Connector To Lateral G Sensor

Courtesy of SUBARU OF AMERICA, INC.
