Sub Frame Support Arm: Removal

  1. Lift-up the vehicle, and support the rear sub frame with support stand.
  2. Remove the sub frame support arm.

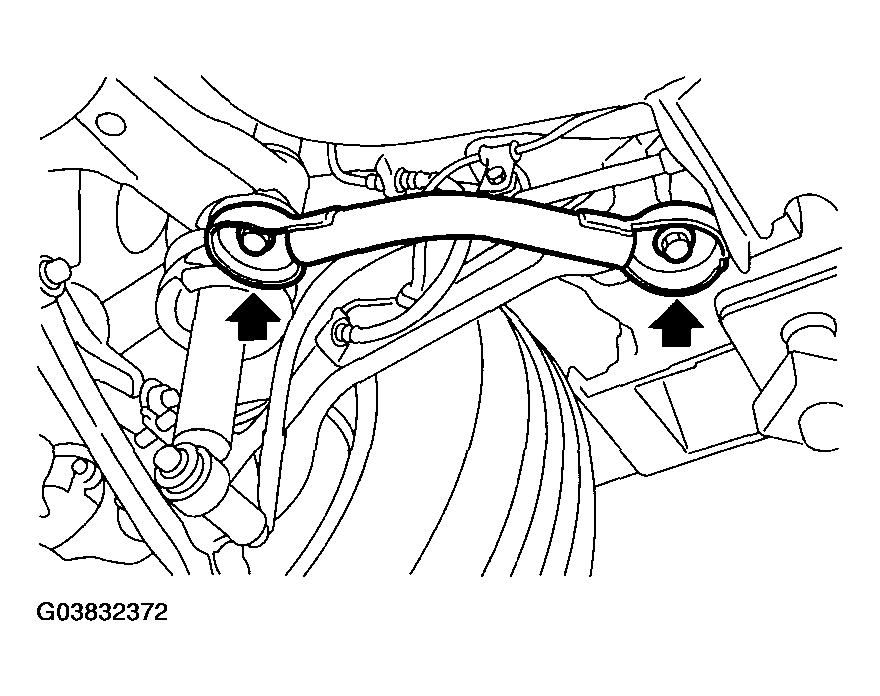

Fig 1: Removing Sub Frame Support Arm
G03832372Courtesy of SUBARU OF AMERICA, INC.
