VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

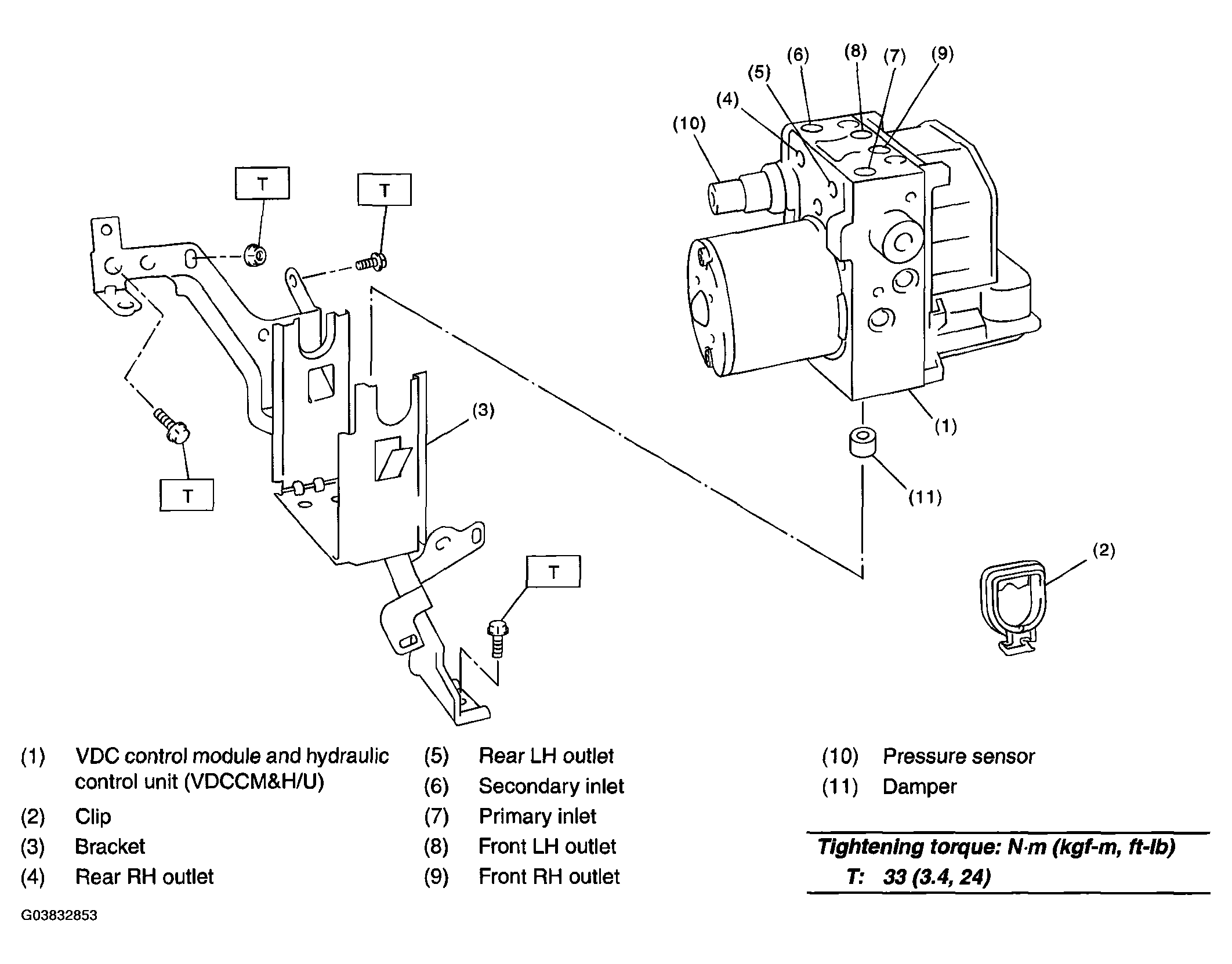

Fig 1: Identifying VDC Control Module & Hydraulic Control Unit Components
G03832853Courtesy of SUBARU OF AMERICA, INC.
