Control Module I/O Signal: Wiring Diagram

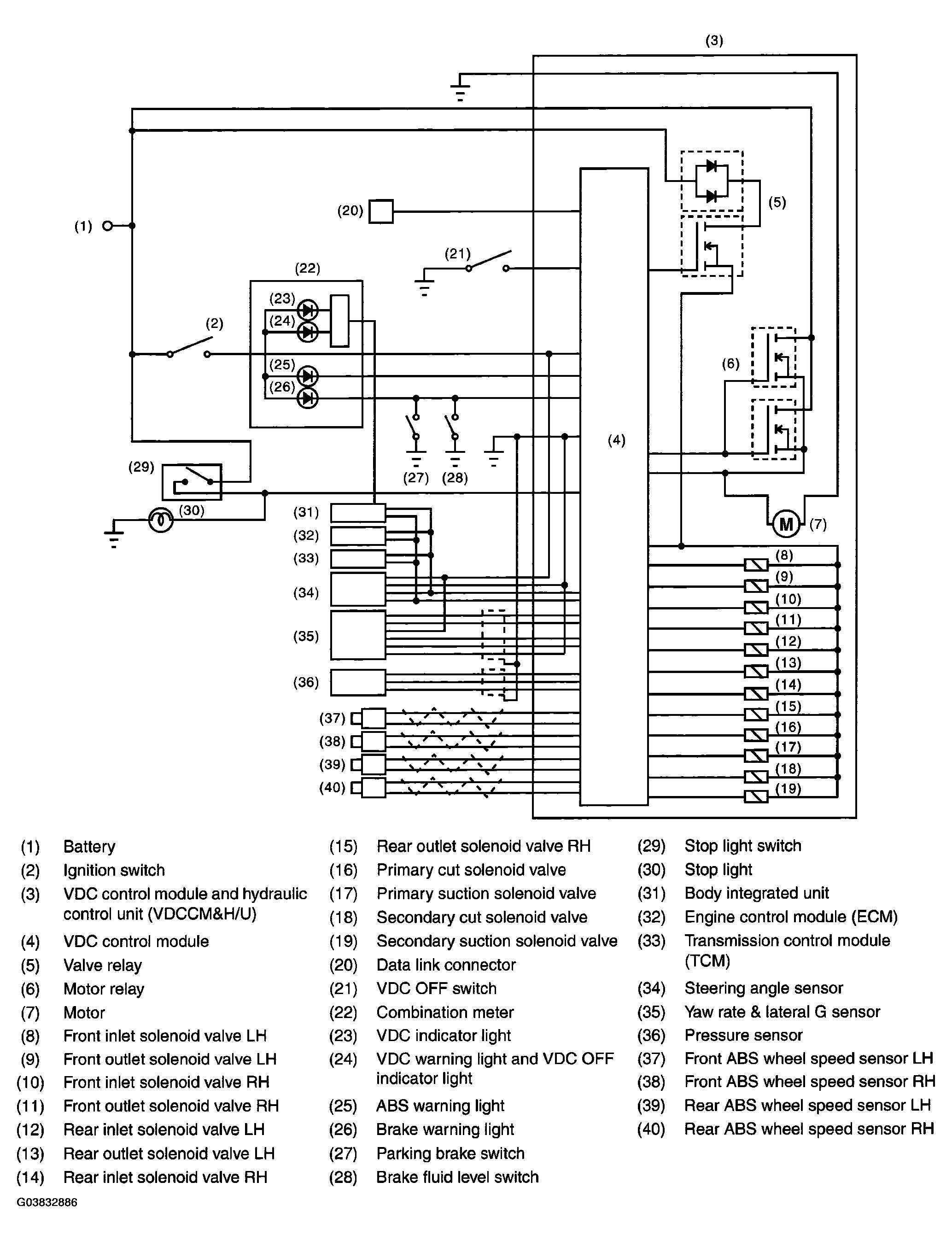

Fig 1: Brake System Wiring Diagram

G03832886

Courtesy of SUBARU OF AMERICA, INC.
