Door Lock Assembly

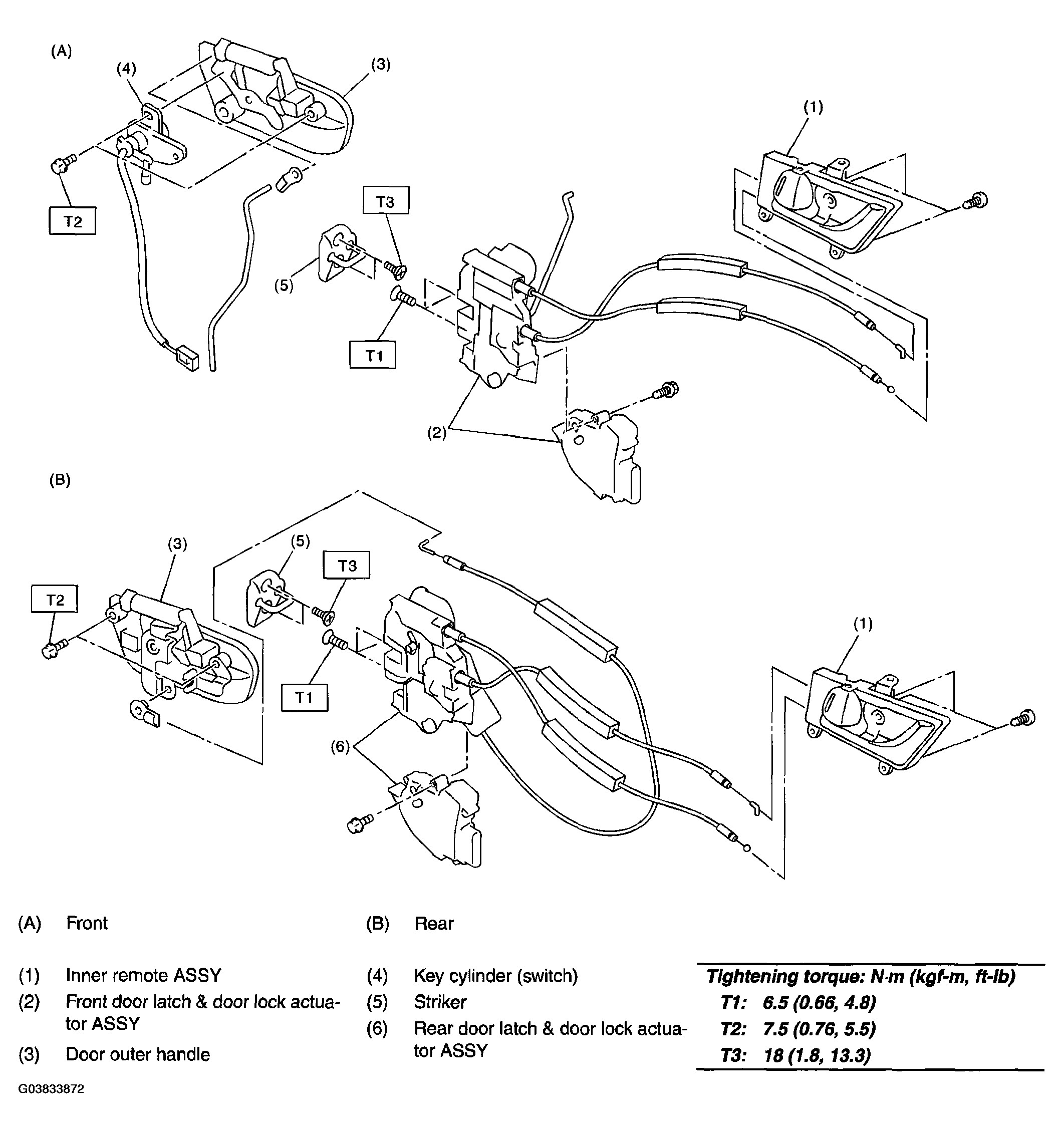

Fig 1: Exploded View Of Door Lock Assembly
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
