Seat Belt Systems: Testing and Inspection

Seat Belt Warning System

INSPECTION

TROUBLE SYMPTOM:
- Driver's side seat belt warning light does not come on or go off.
- Warning buzzer does not beep.

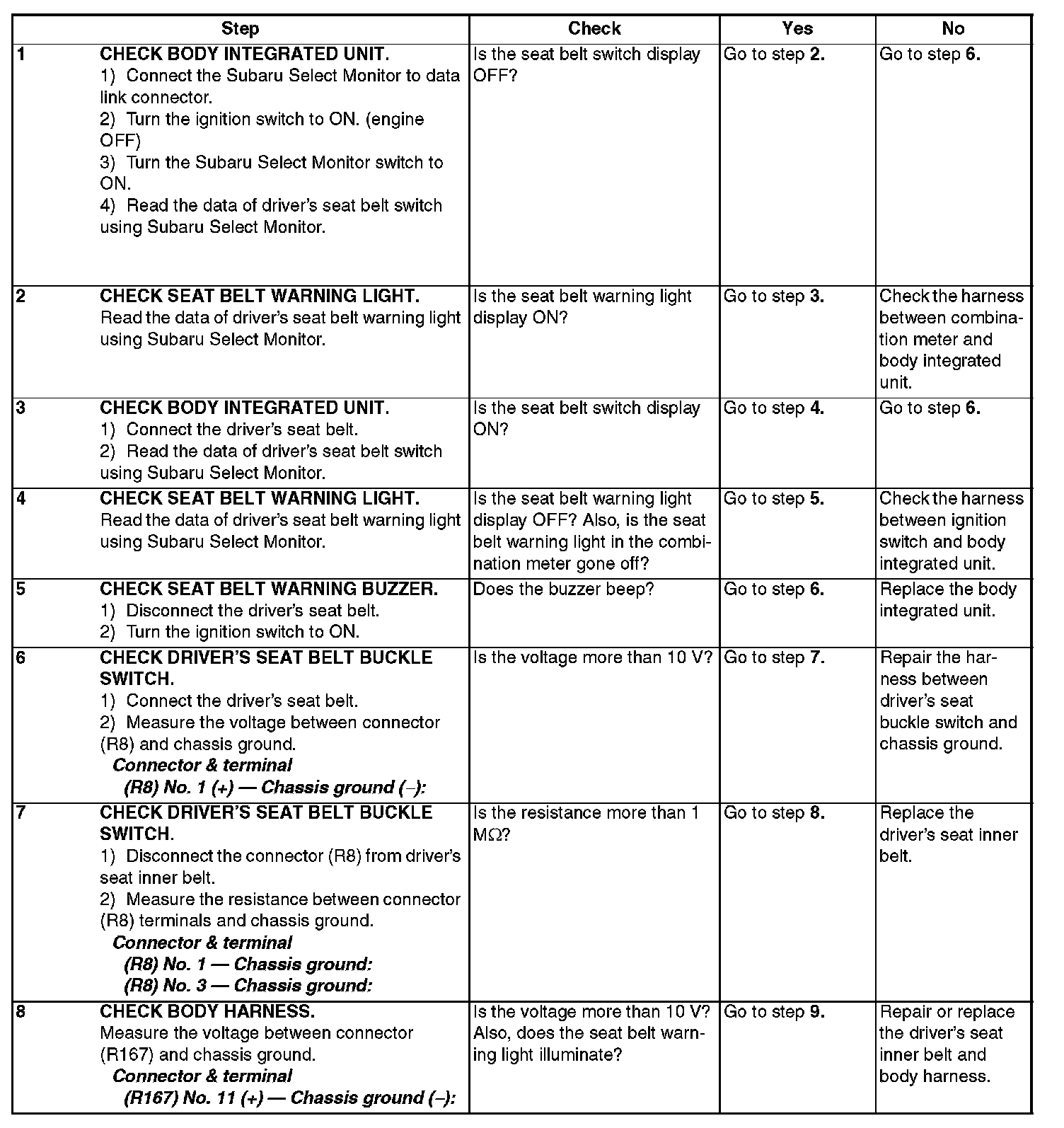

Step 1 - 8:

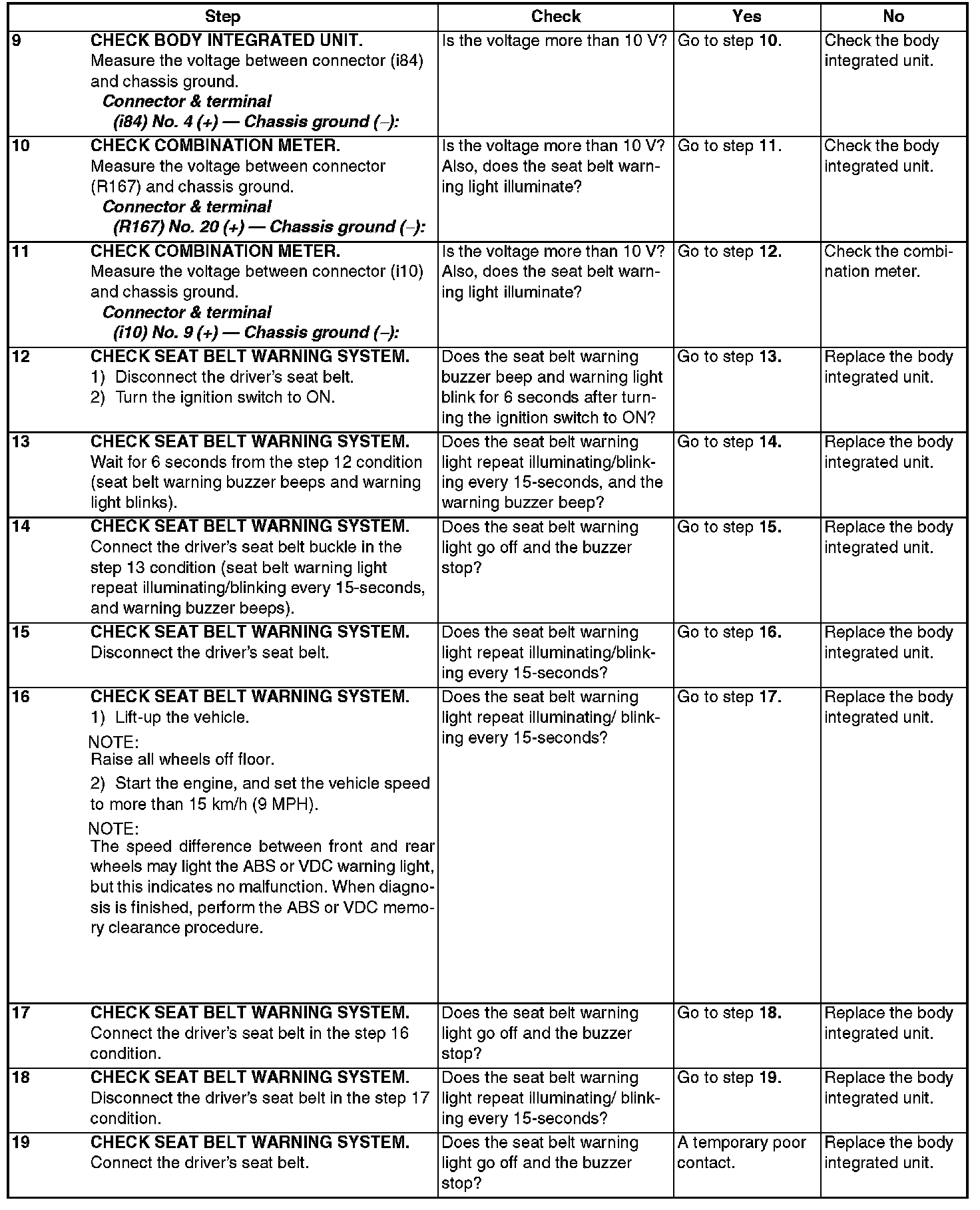

Step 9 - 19:
