Home
>>
Subaru
>>
2005
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Locations
>>

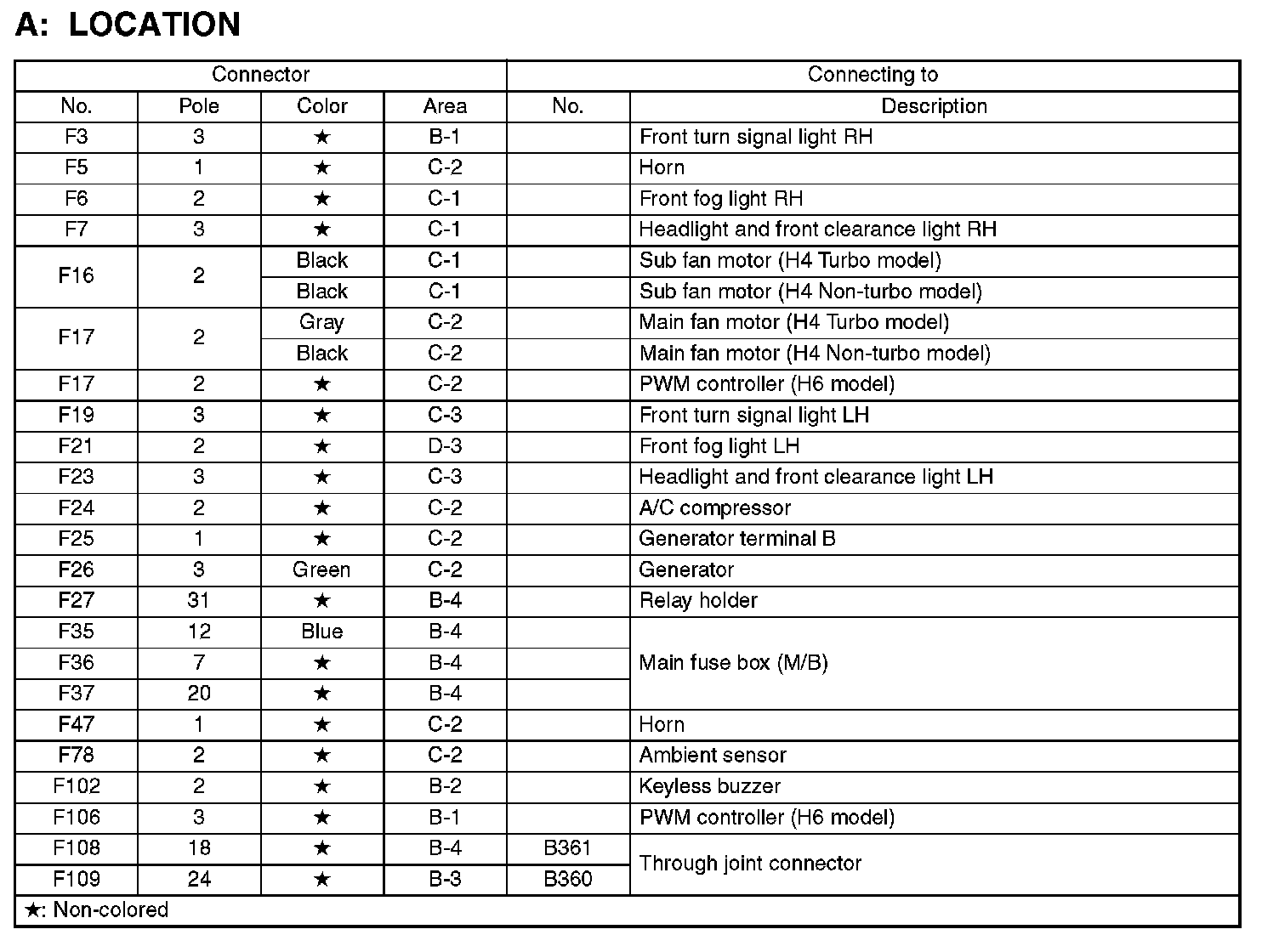

Connector Locations
>>
F3-F109
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
F3-F109

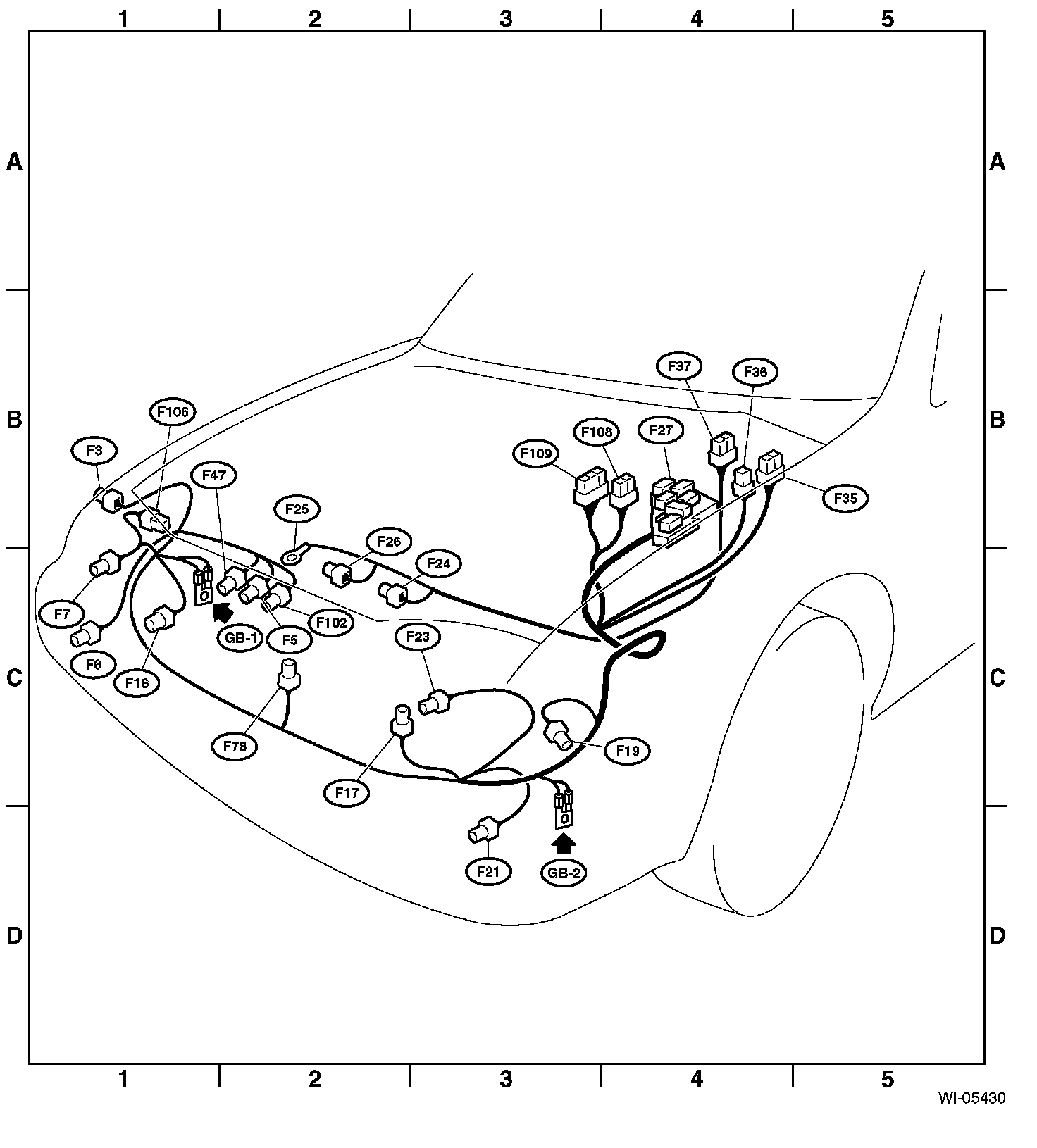

Front Wiring Harness
F3-F109:
Area View:
