Headlamp: Service and Repair

Headlight Assembly

REMOVAL
1. Disconnect the ground cable from battery.




2. Remove the air intake duct. (When removing the headlight RH)
3. Remove the front grille.
4. Remove the front bumper.
5. Disconnect each harness connector.

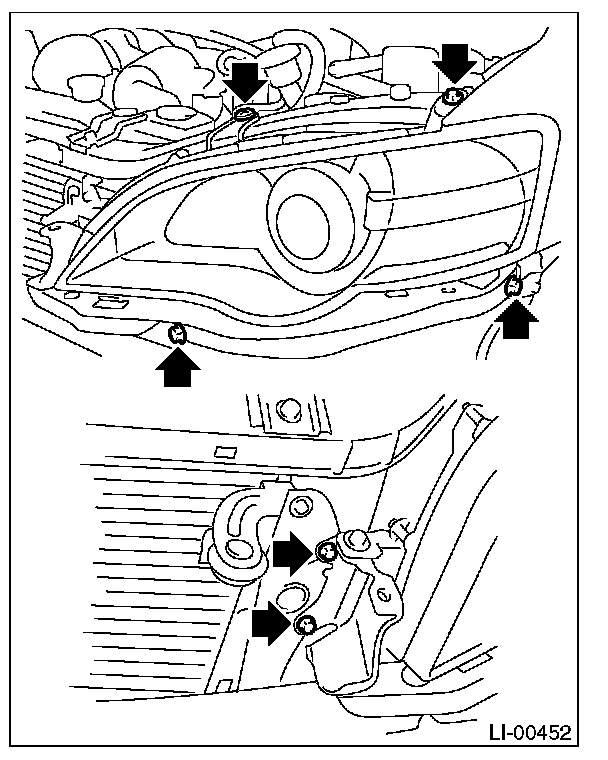

6. Remove the 5 bolts, disengage the clip, and then detach the headlight assembly.

INSTALLATION
Install in the reverse order of removal.
