Control Module Pinout Values - With VDC

ELECTRICAL SPECIFICATION








NOTE:
^ Terminal numbers in VDCCM&H/U connector are as shown in the figure.
^ When the connector is removed from VDCCM&H/U, the ABS warning light, VDC warning light and VDC OFF indicator light illuminate.

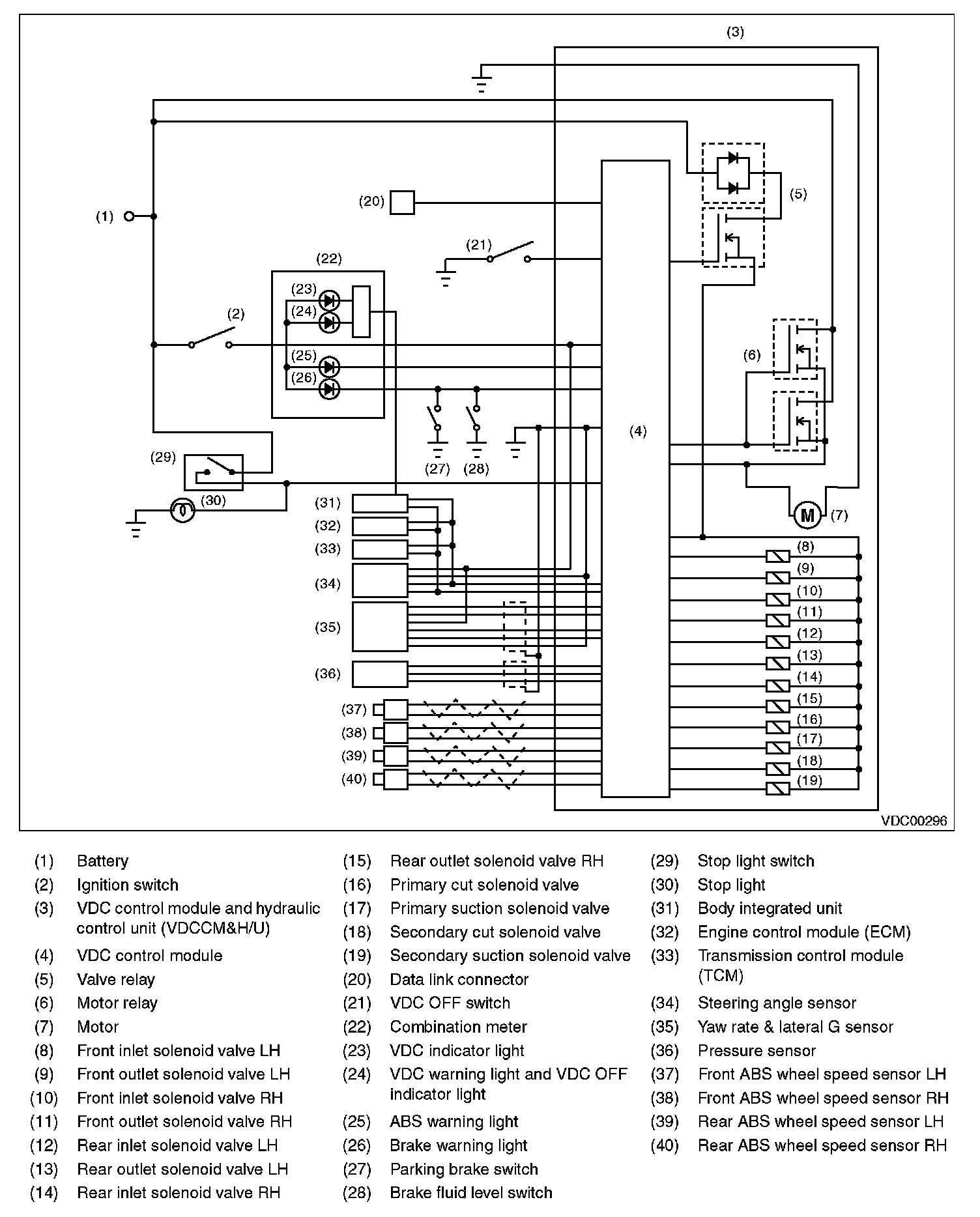

WIRING DIAGRAM

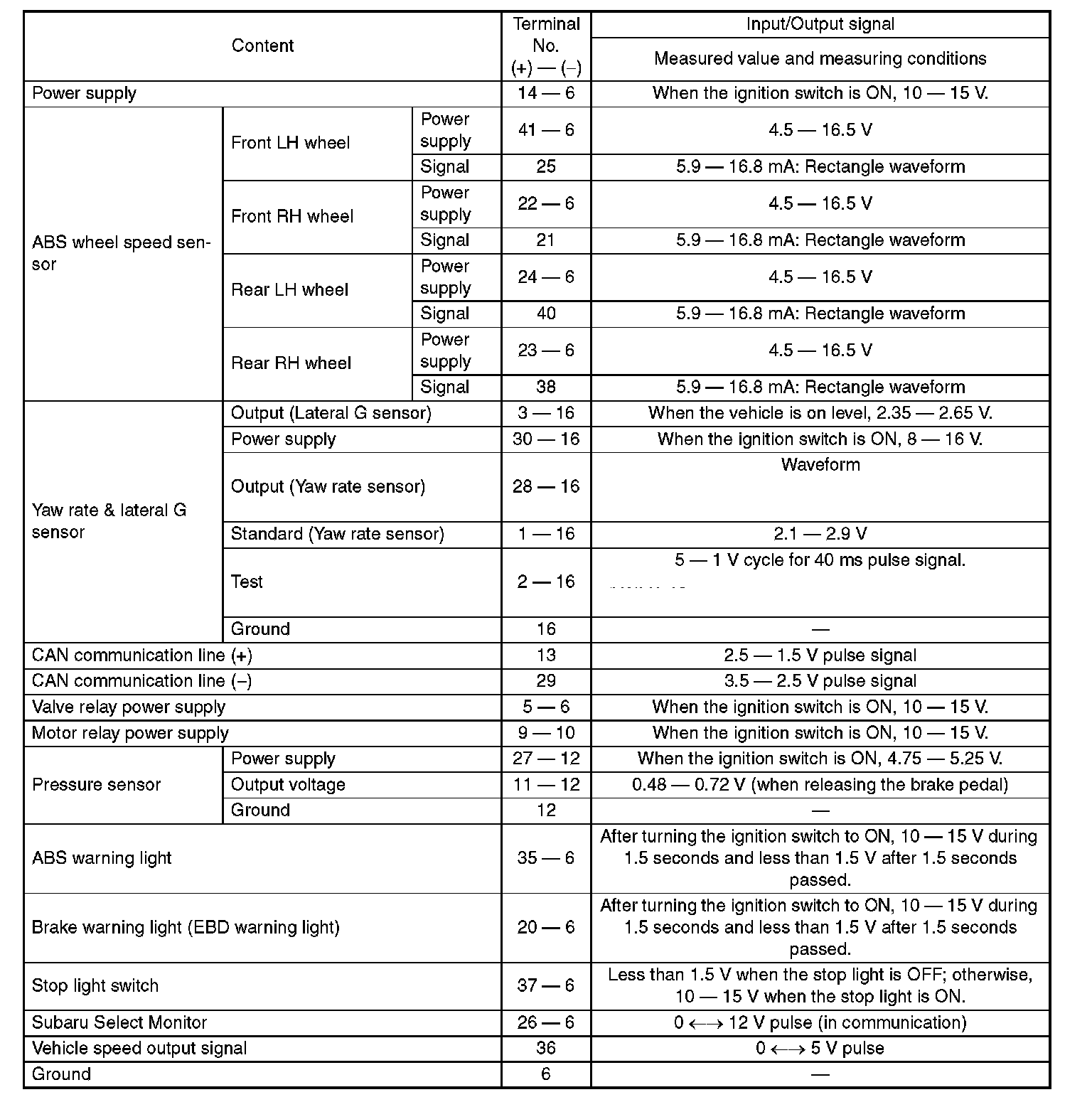

MEASUREMENT
Measure input and output signal voltage.





WAVEFORM
