Control Module Pinout Values - With ABS

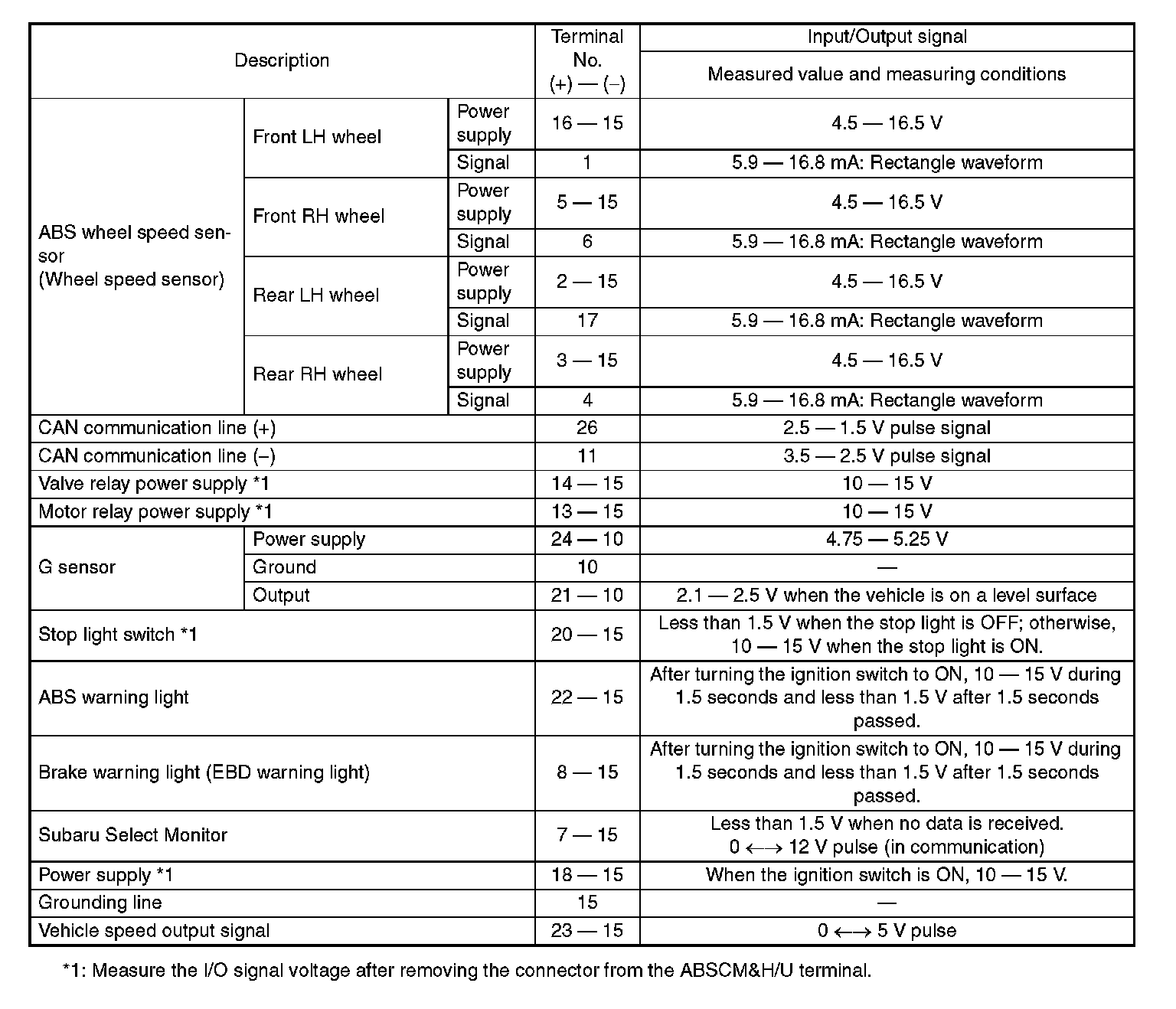

ELECTRICAL SPECIFICATION








NOTE:
^ Terminal numbers in ABSCM&H/U connector are as shown in the figure.
^ ABS warning light is illuminates when the connector is removed from ABSCM&H/U.

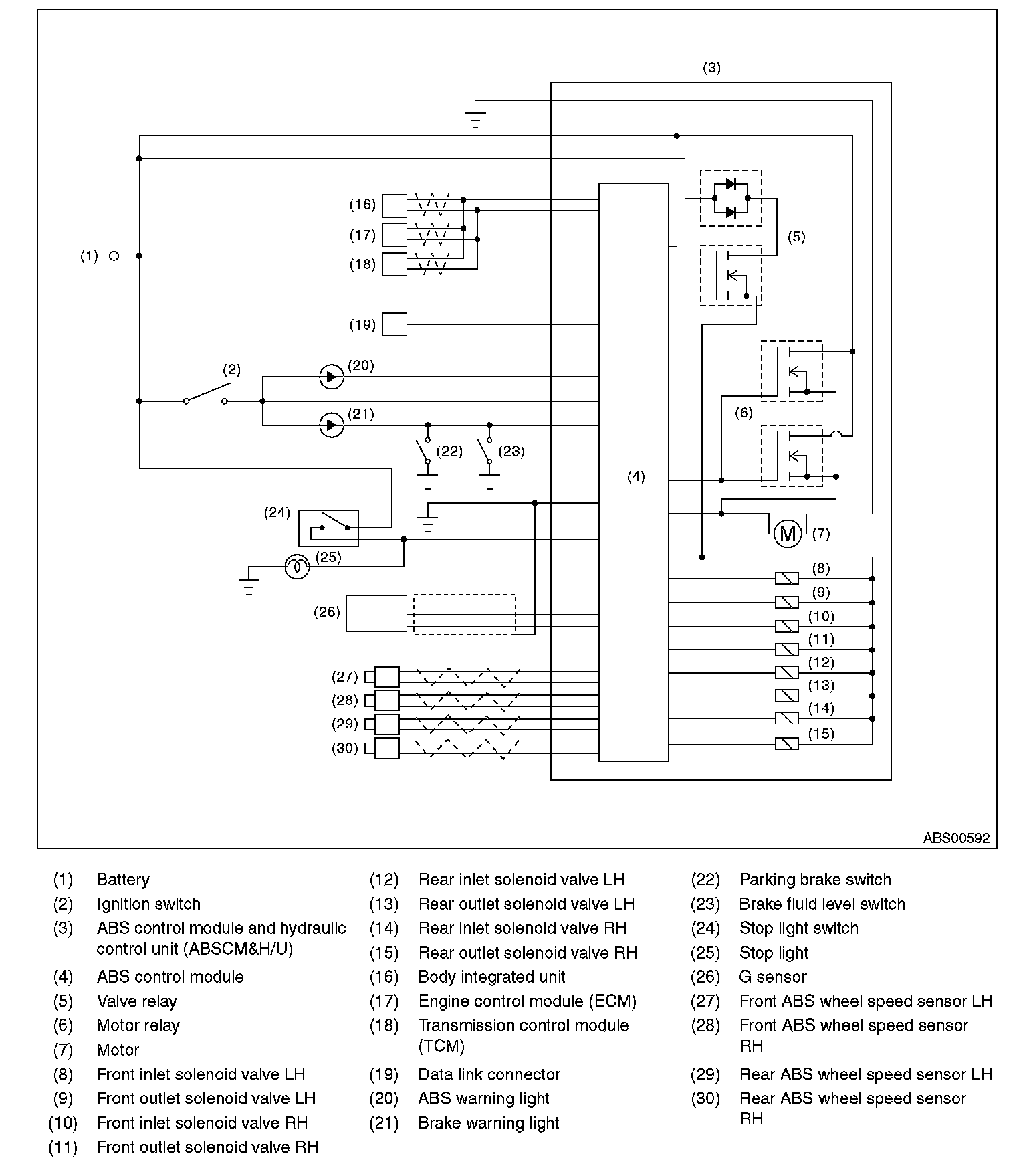

WIRING DIAGRAM
