Transmission Fluid

Check the transmission fluid amount. If the amour' is insufficient, check that no leaks are found. Their. add the necessary amount of the specified fluid.

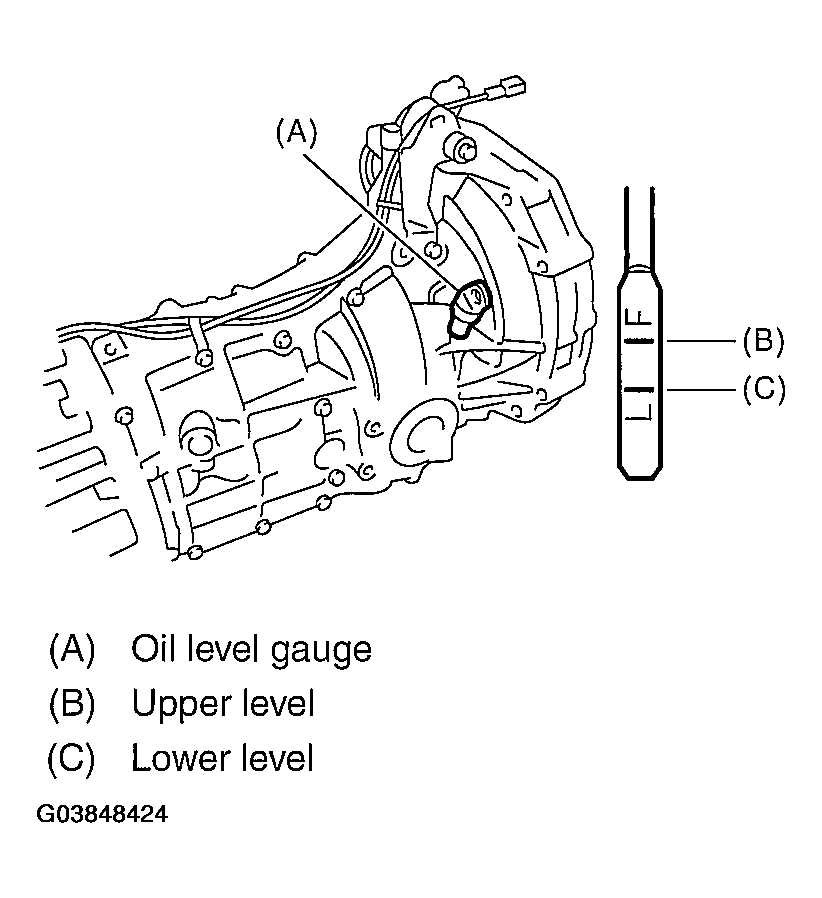

Fig 1: Identifying Transmission Fluid Oil Levels
G03848424Courtesy of SUBARU OF AMERICA, INC.
