Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

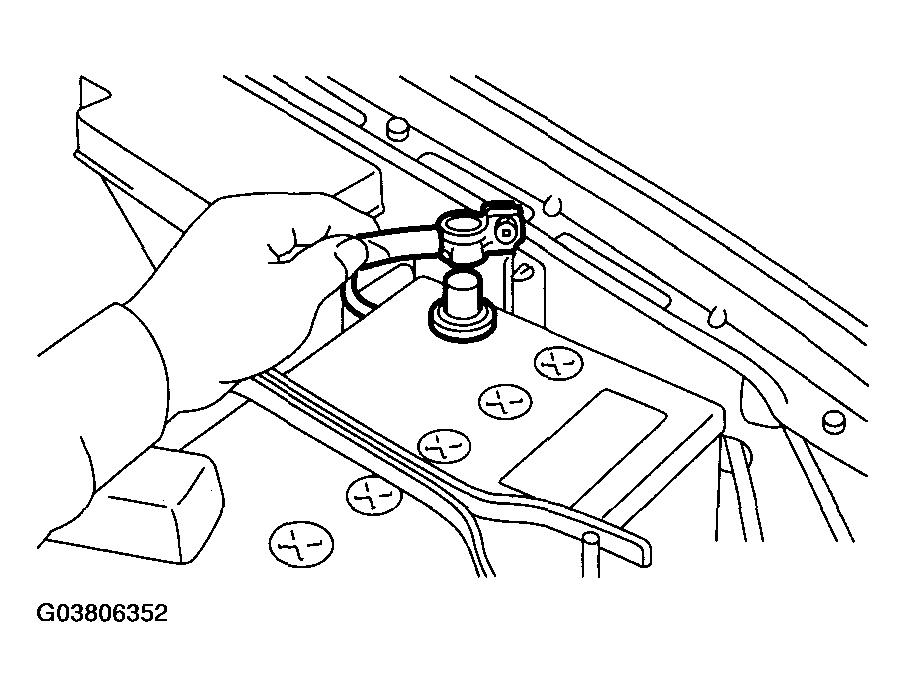

    Fig 1: Disconnecting Ground Cable From Battery
    G03806352Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow and intake air temperature sensor.
  3. Remove the mass air flow and intake air temperature sensor.

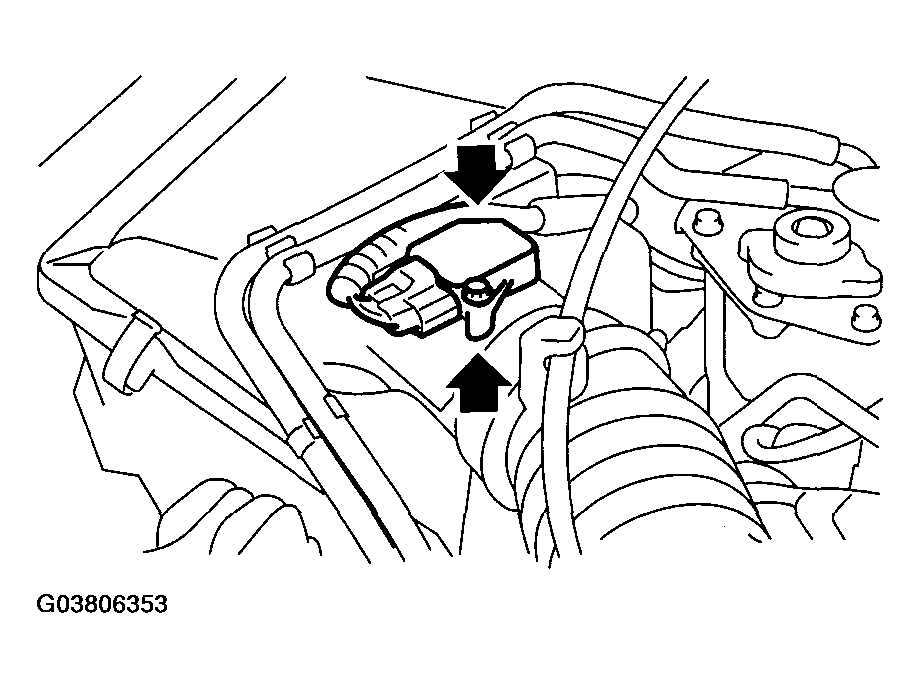

    Fig 2: Removing Mass Air Flow And Intake Air Temperature Sensor
    G03806353Courtesy of SUBARU OF AMERICA, INC.
