Check Buzzer

CHECK BUZZER

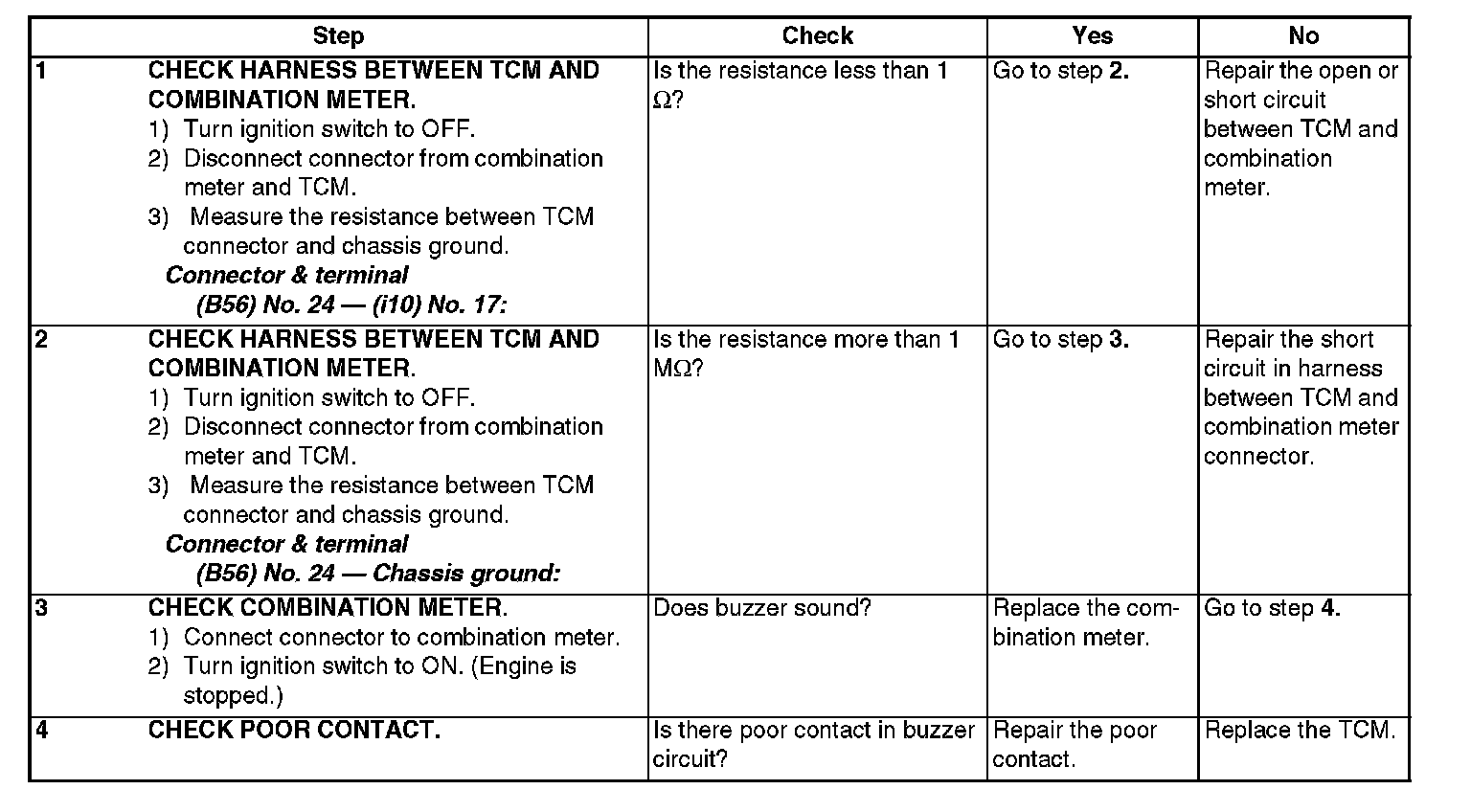

Steps 1 - 4:





DIAGNOSIS:
Buzzer output signal circuit is open or shorted.

TROUBLE SYMPTOM:
Buzzer remains sounded.





WIRING DIAGRAM
