Electrical Components: Location

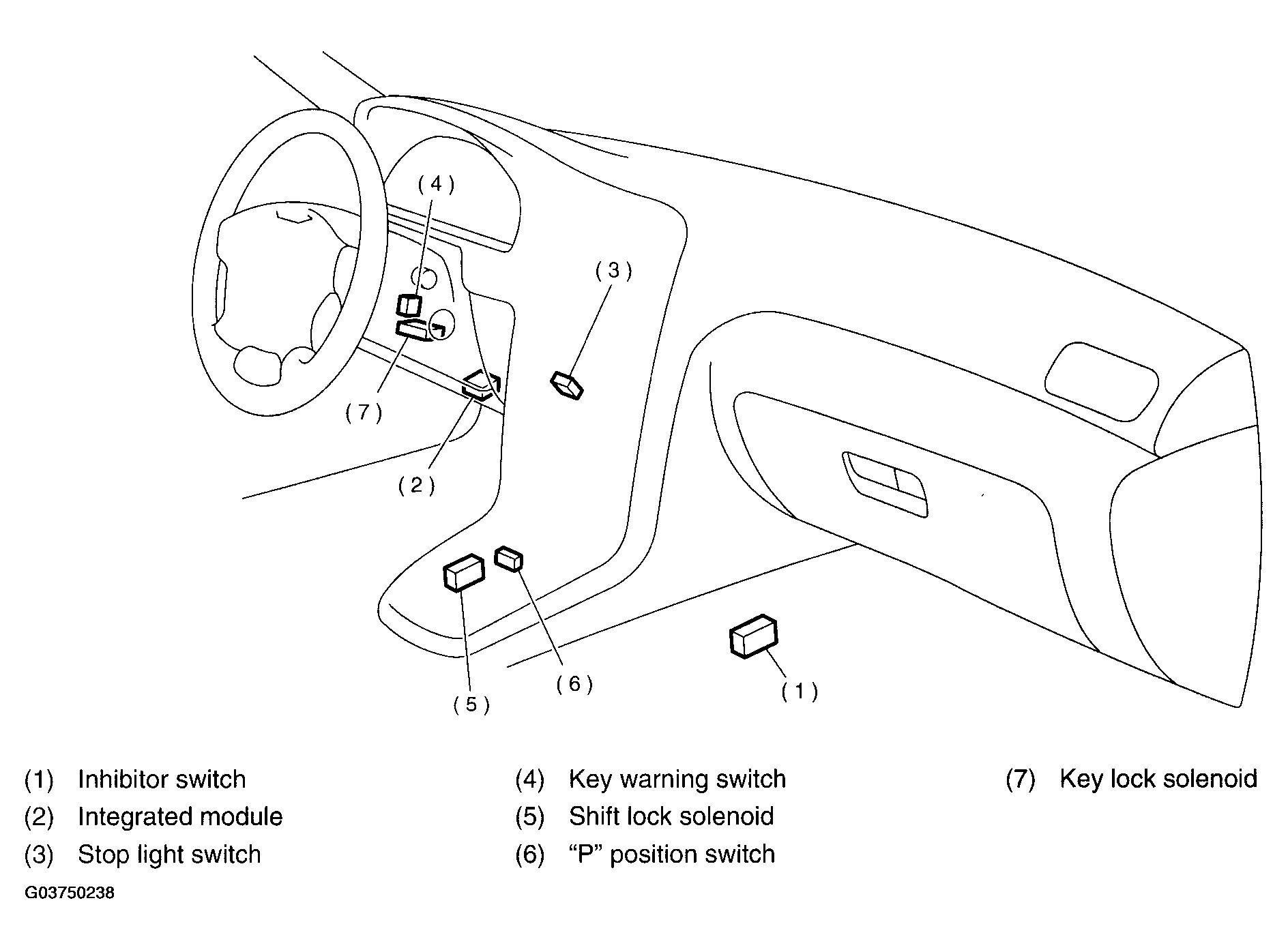

Fig 1: Identifying Electrical Components Location
G03750238Courtesy of SUBARU OF AMERICA, INC.

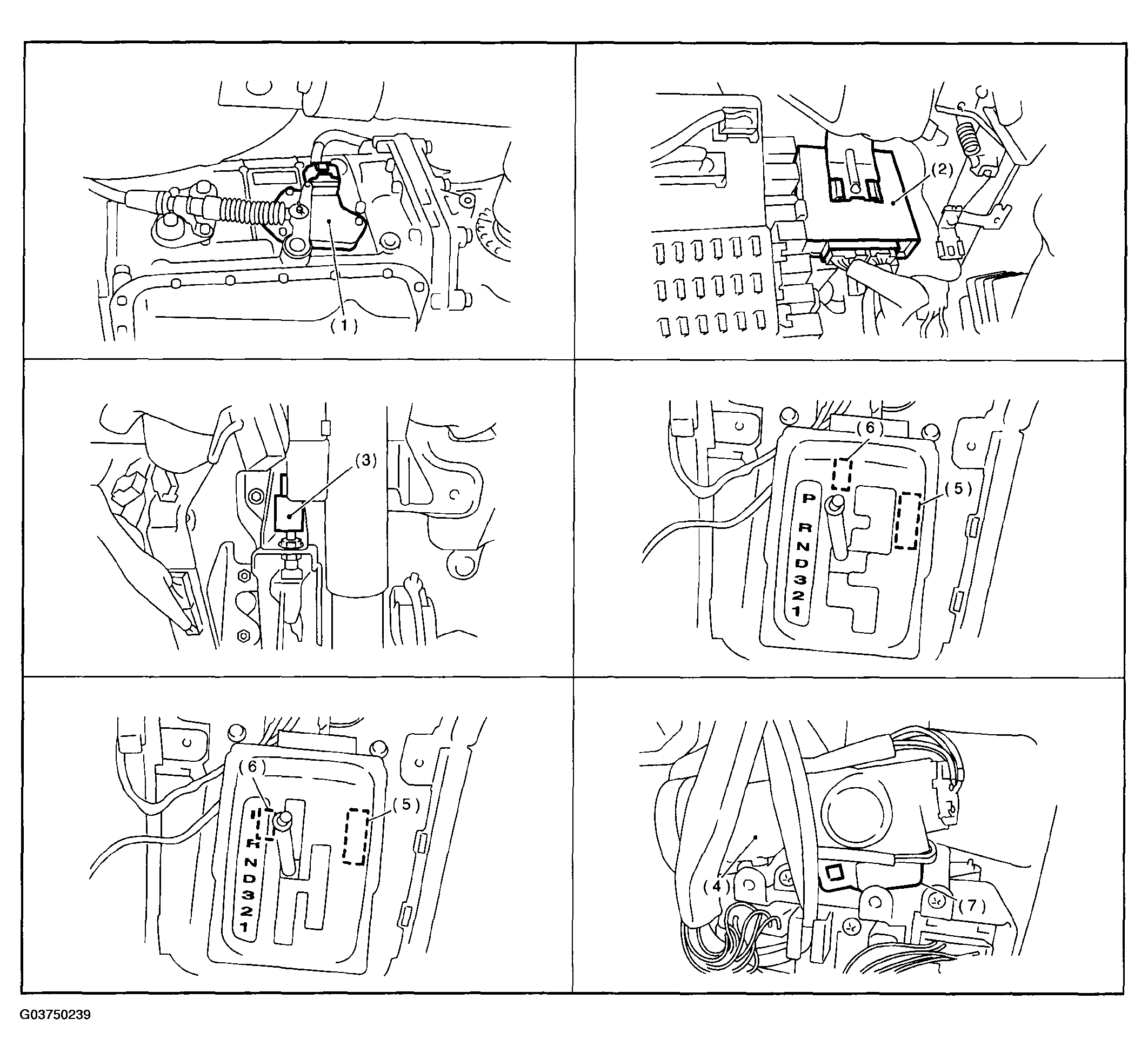

Fig 2: Identifying Control System Electrical Components
G03750239Courtesy of SUBARU OF AMERICA, INC.
