Pitching Stopper

Install the pitching stopper.
Tightening torque:

T1:50 N.m(5.1 kgf-m, 37 ft-lb)

T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

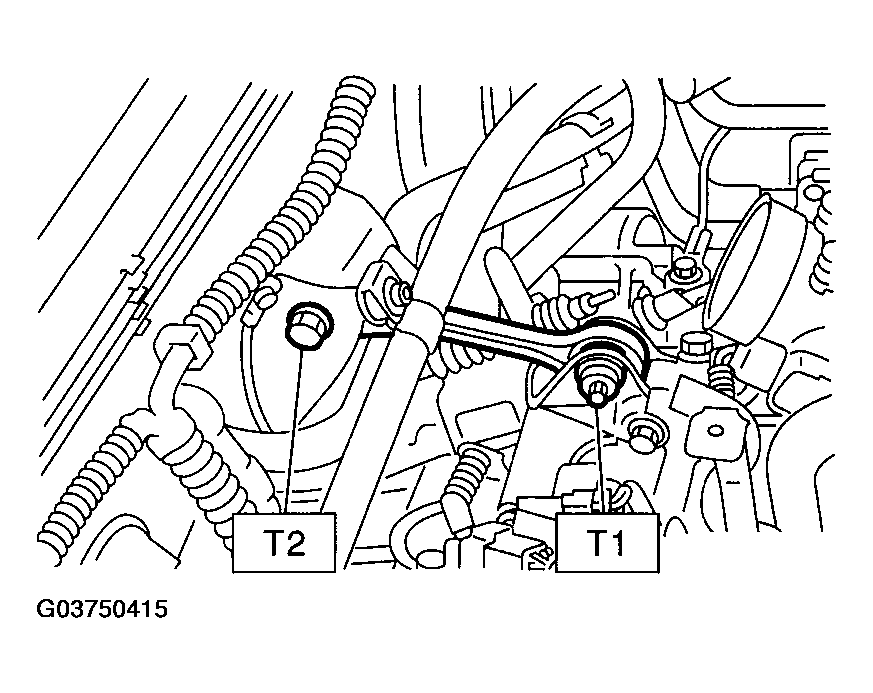

Fig 1: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case or air intake chamber. (Non-TURBO model)
< Ref. to INSTALLATION , Air Cleaner Case. >
Remove the intercooler. (TURBO model)
< Ref. to INSTALLATION , Intercooler. >
