Final Reduction

FINAL REDUCTION SPECIFICATION

Model	TURBO model	NON-TURBO model
Front final gear ratio	4.444 (40/9)	4.444 (40/9)
Lubrication oil	Fig 1
Front differential oil capacity	1.1 - 1.3 l (1.2 - 1.4 US qt, 1.0 - 1.1 Imp qt)

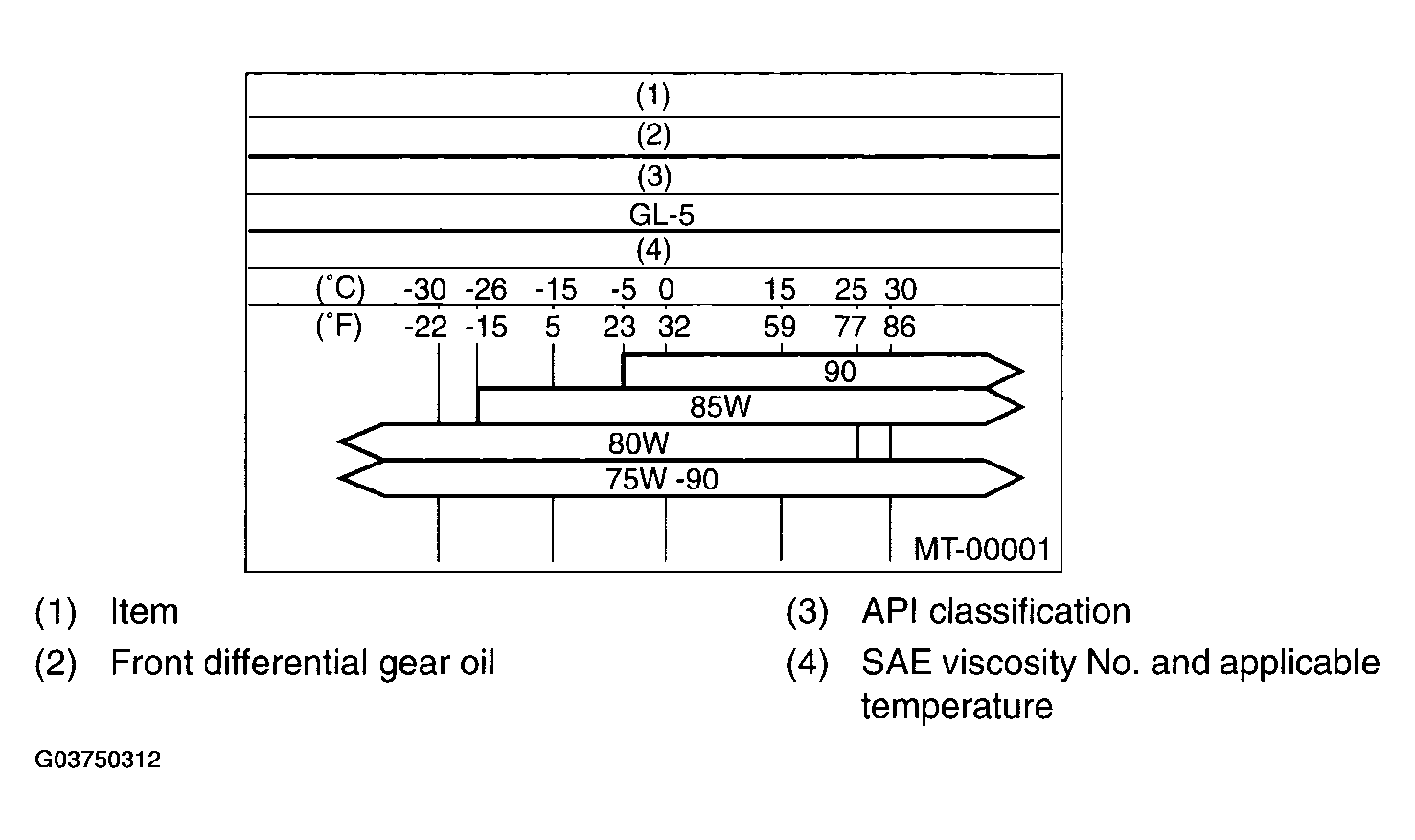

Fig 1: Identifying Gear Oil Chart

Courtesy of SUBARU OF AMERICA, INC.
