Transmission Mounting

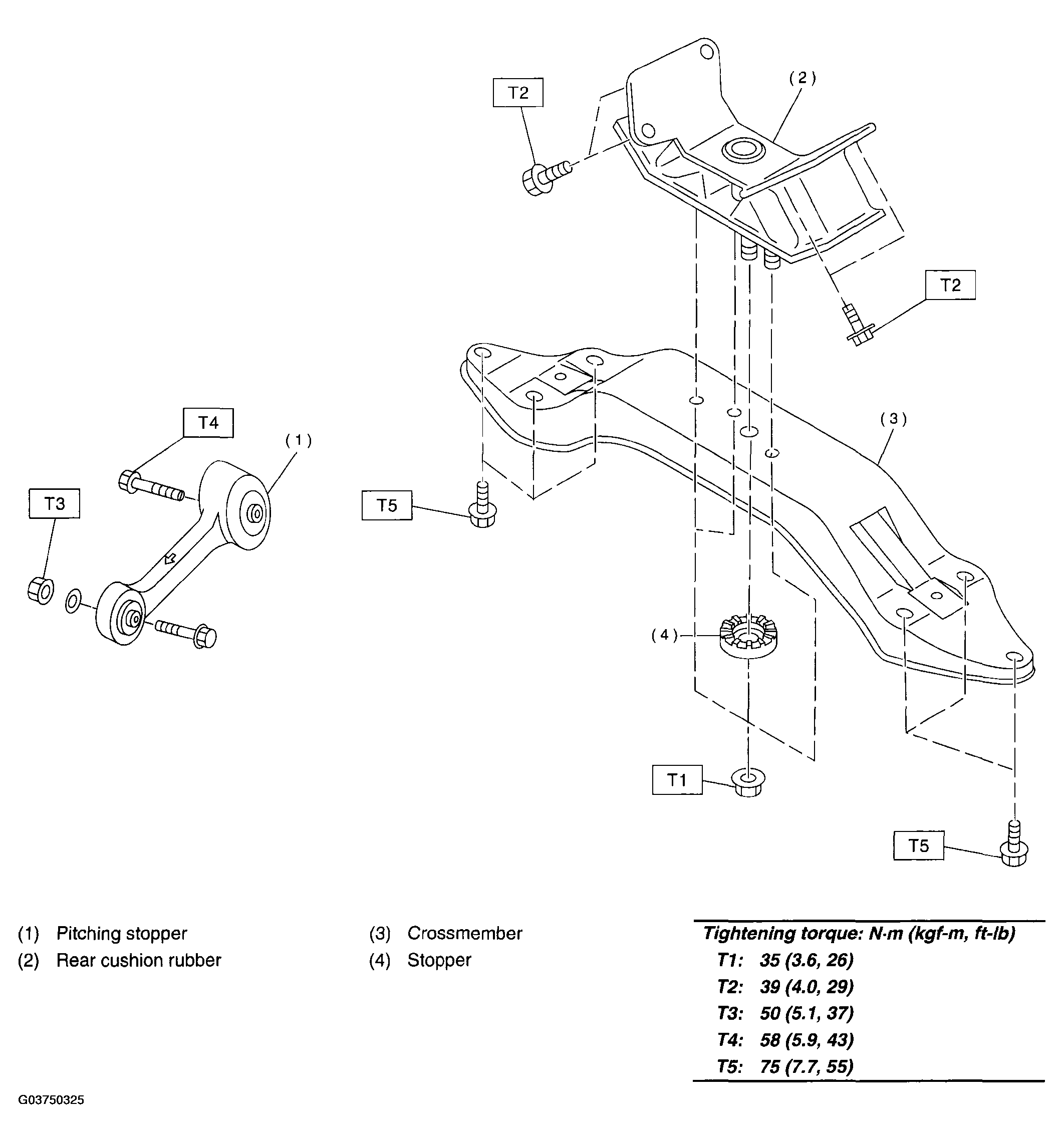

Fig 1: Transmission Mounting With Torque Specifications
G03750325Courtesy of SUBARU OF AMERICA, INC.
