Transmission Case And Control Device

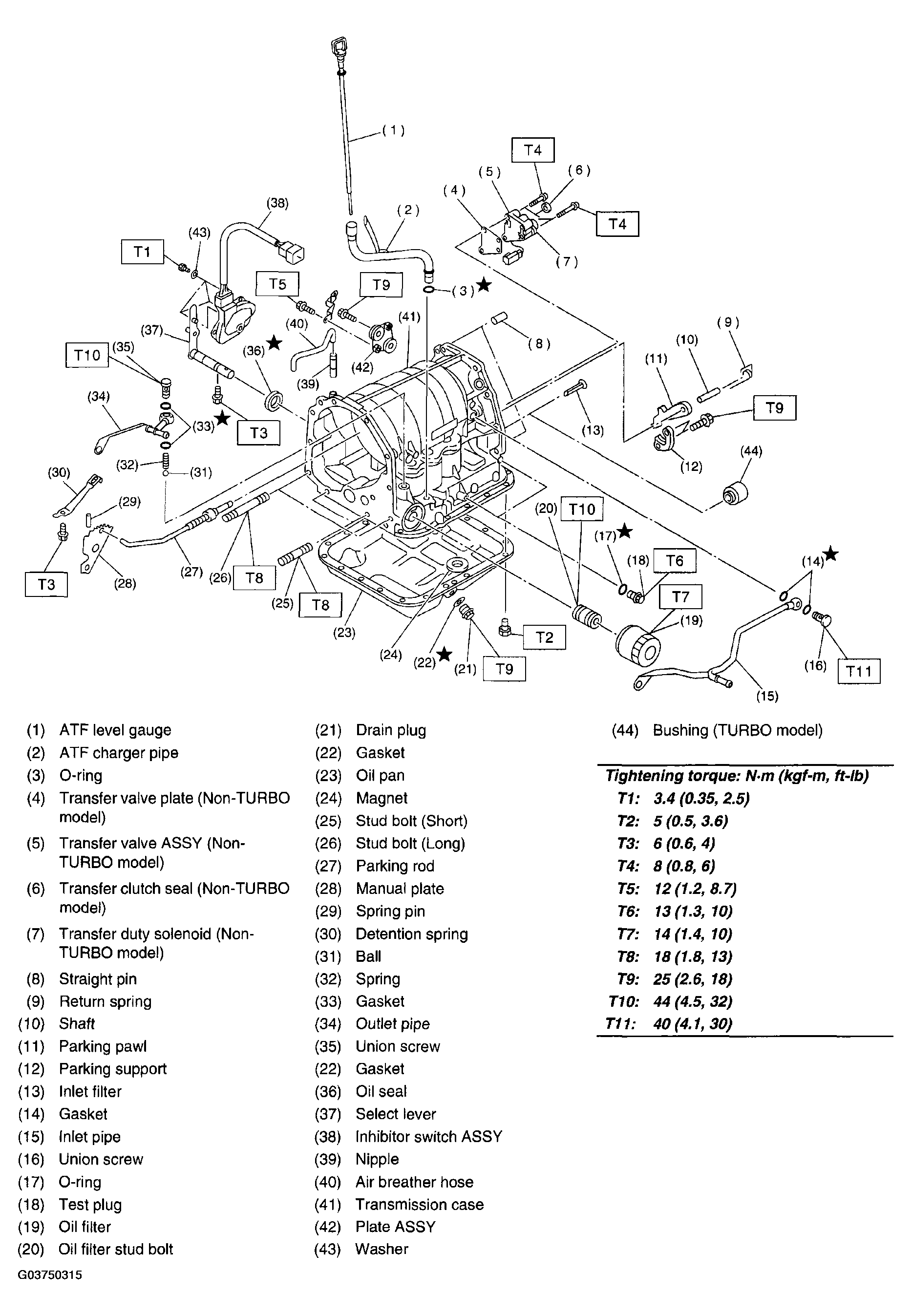

Fig 1: Replacement Components Of Transmission Case & Control Device With Torque Specifications
G03750315Courtesy of SUBARU OF AMERICA, INC.
