Oil Pump

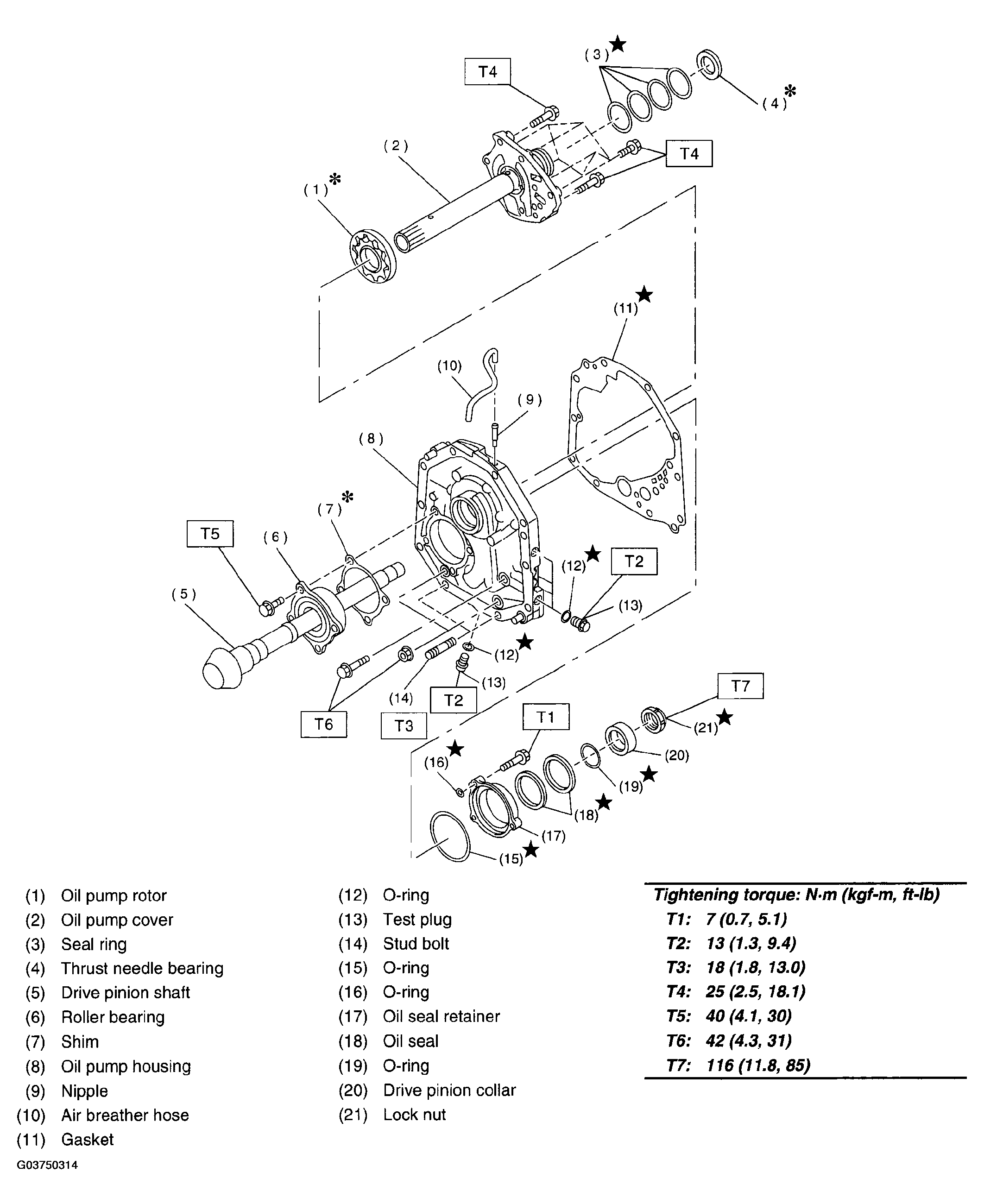

Fig 1: Replacement Components Of Oil Pump With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
