Side Retainer

  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.

    ST 499797000 INSTALLER

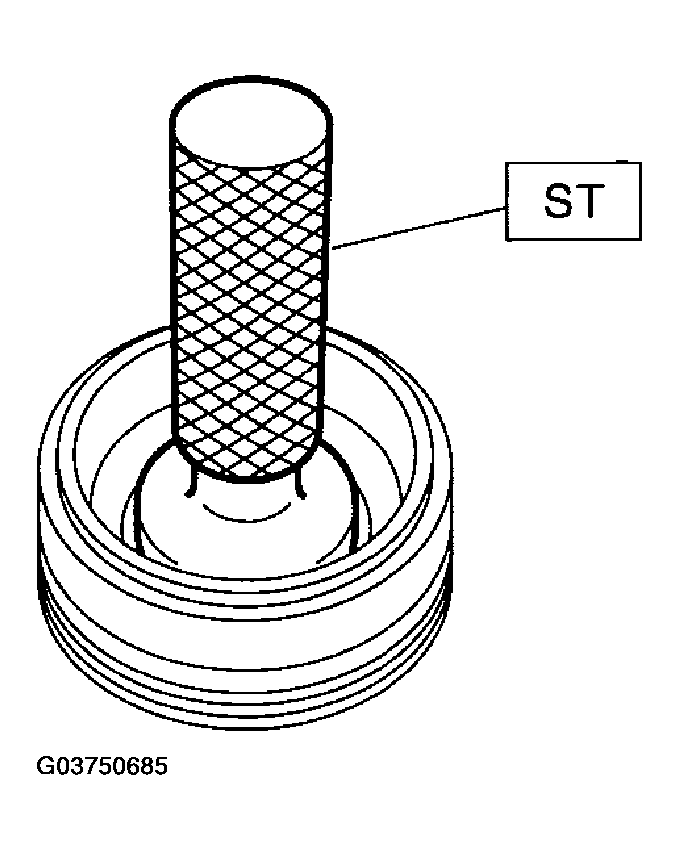

    Fig 1: Installing Oil Seal Using Installer ST499797000
    G03750685Courtesy of SUBARU OF AMERICA, INC.
  3. Using the ST and hammer, install a new oil seal. (TURBO model)

    ST 18675AA000 INSTALLER

    Fig 2: Installing Oil Seal Using Installer ST-18675AA000
    G03750686Courtesy of SUBARU OF AMERICA, INC.
  4. Install new O-ring.
    Fig 3: Installing New O-Ring
    G03750687Courtesy of SUBARU OF AMERICA, INC.
