VTD Model

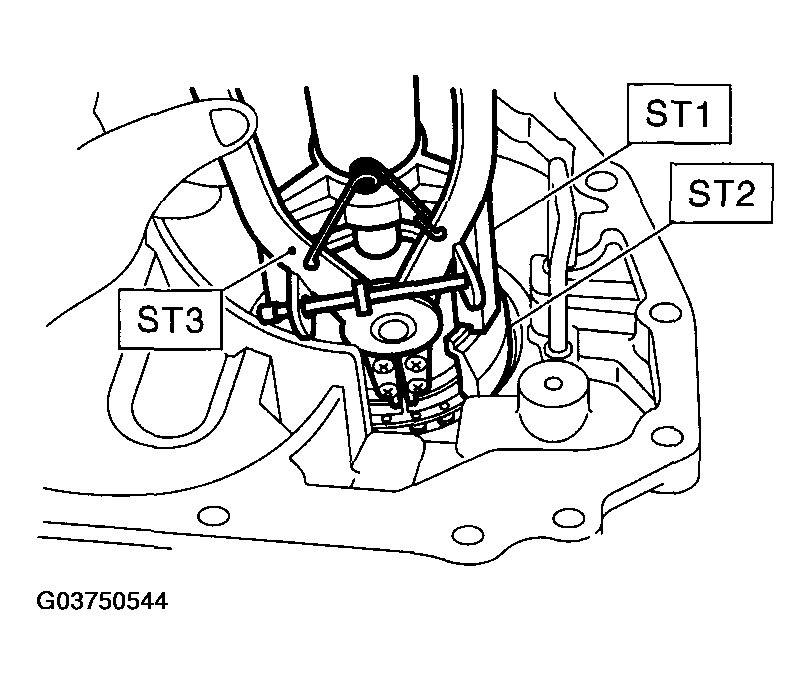

  1. Remove snap ring using ST1, ST2, ST3 and a press.

    ST1 398673600 COMPRESSOR

    ST2 498627100 SHEAT

    ST3 398663600 PLIERS

    Fig 1: Removing Snap Ring Using Compressor ST1-398673600, Sheat ST2-498627100 And ST3-398663600 Pliers
    G03750544Courtesy of SUBARU OF AMERICA, INC.

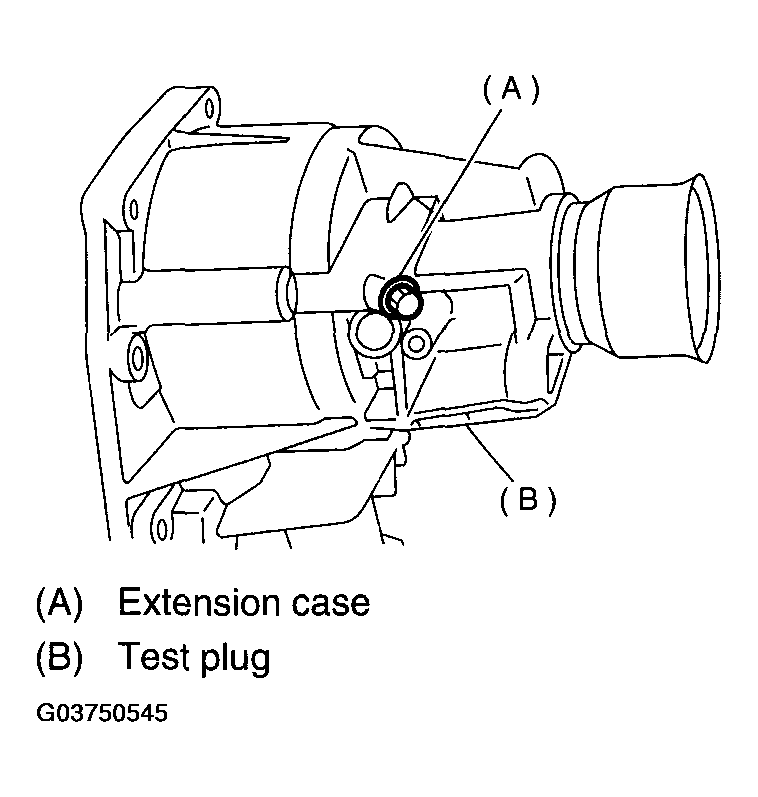

  2. Remove test plug.
    Fig 2: Removing Test Plug
    G03750545Courtesy of SUBARU OF AMERICA, INC.
  3. Remove clutch piston using compressed air.
    Fig 3: Removing Clutch Piston Using Compressed Air
    G03750546Courtesy of SUBARU OF AMERICA, INC.

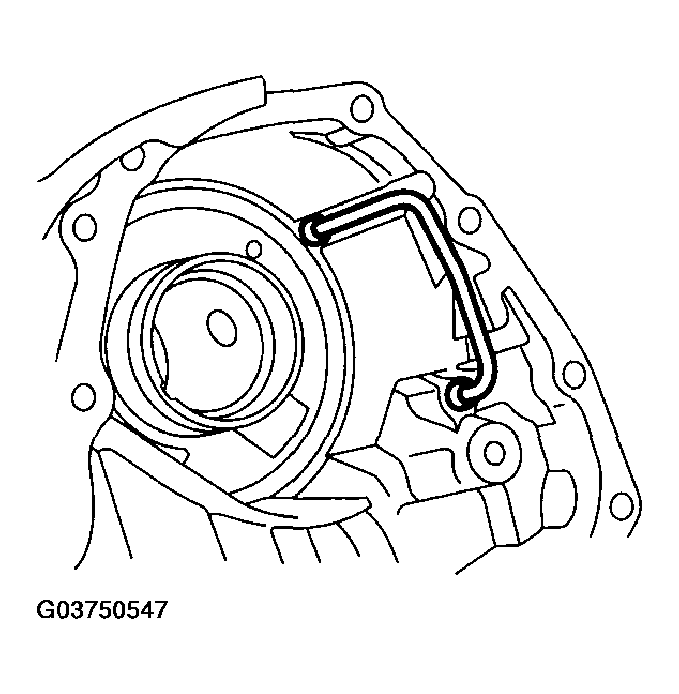

  4. Pay attention, not to bend pipe, and remove transfer clutch pipe.
    Fig 4: Removing Transfer Clutch Pipe
    G03750547Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the dust cover from the extension case.
  6. Remove the oil seal from the extension case.
