MPT Model

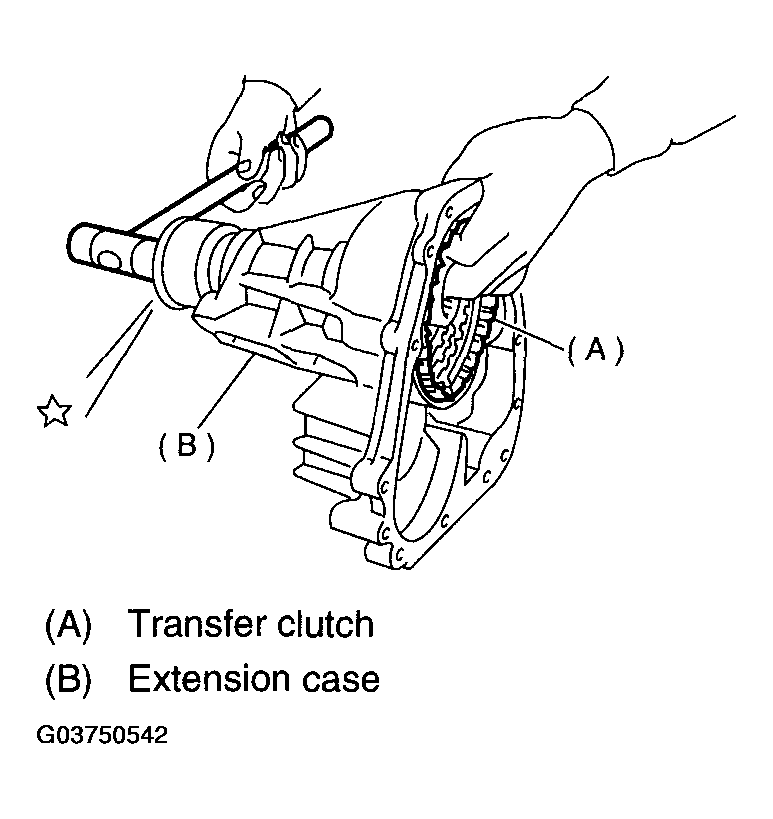

- Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
NOTE:
Be careful not to damage the oil seal in the extension.
Courtesy of SUBARU OF AMERICA, INC.

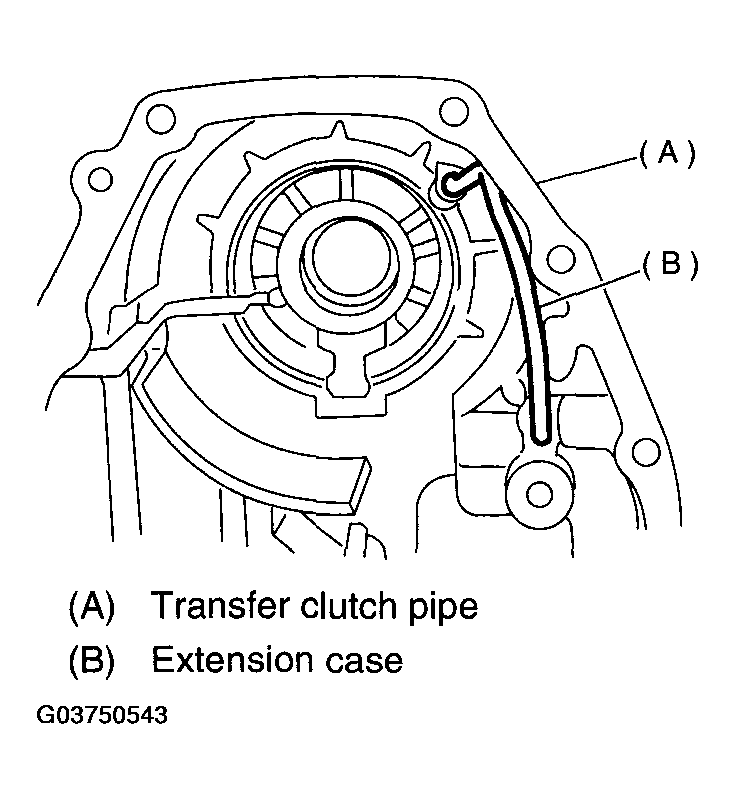

- Remove the transmission clutch pipe without bending pipe.
Courtesy of SUBARU OF AMERICA, INC.
