MPT Model

  1. Using the ST and a press, press in a new oil seal.

    ST 498057300 INSTALLER

  2. Press in the dust cover.
  3. Install the transfer clutch pipe to extension case without bending pipe.

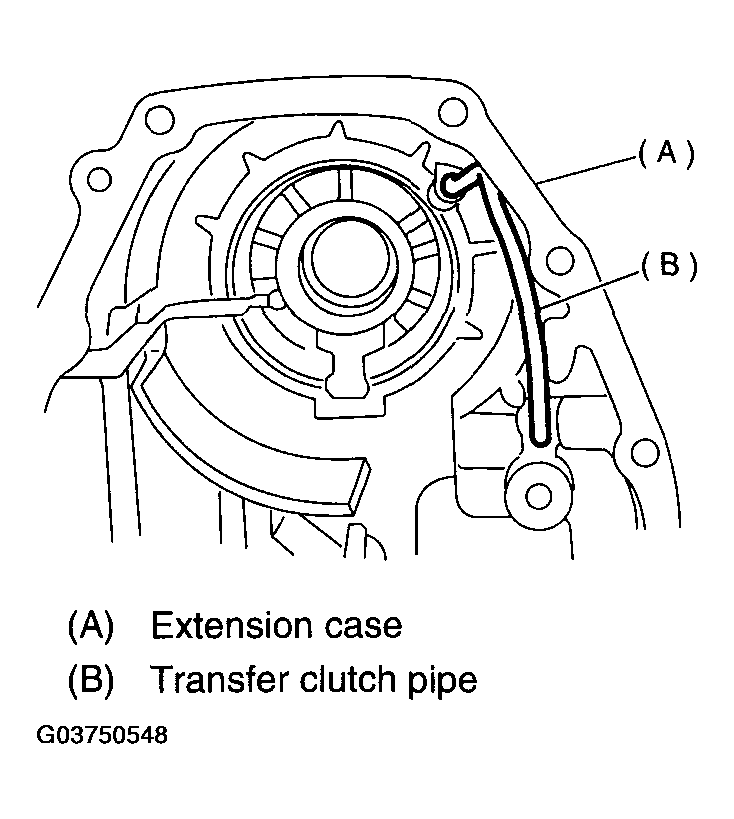

    Fig 1: Installing Transfer Clutch Pipe To Extension Case Without Bending Pipe - MPT Model
    G03750548Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transfer clutch assembly to the case.
    NOTE:
    • Be careful not to damage the seal rings.
    • Insert the clutch assembly fully into position until the bearing shoulder bottoms.

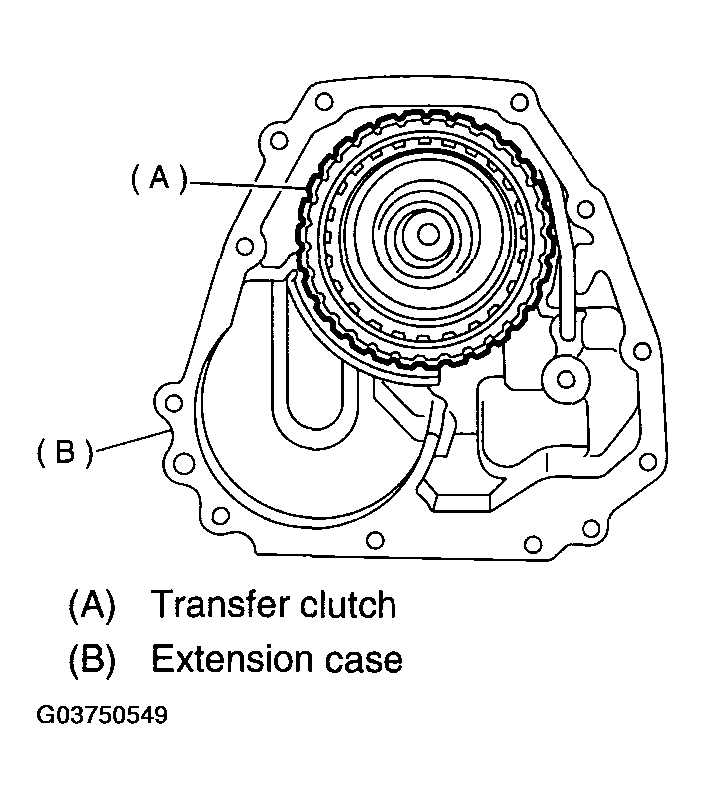

    Fig 2: Installing Transfer Clutch Assembly To Case
    G03750549Courtesy of SUBARU OF AMERICA, INC.
