Wheel Alignment: Inspection: Notes

Check the following items before taking wheel alignment measurement.

Check items before taking wheel alignment measurement:

tire air pressure
unbalanced right and left tire wear, size difference
tire run-out
ball joint excessive play, wear
tie rod end excessive play, wear
wheel bearing excessive play
right and left wheel base imbalance
steering link part deformed, excessive play
suspension part deformed, excessive play

Check, adjust and/or measure wheel alignment in accordance with procedures indicated in Fig 1 :

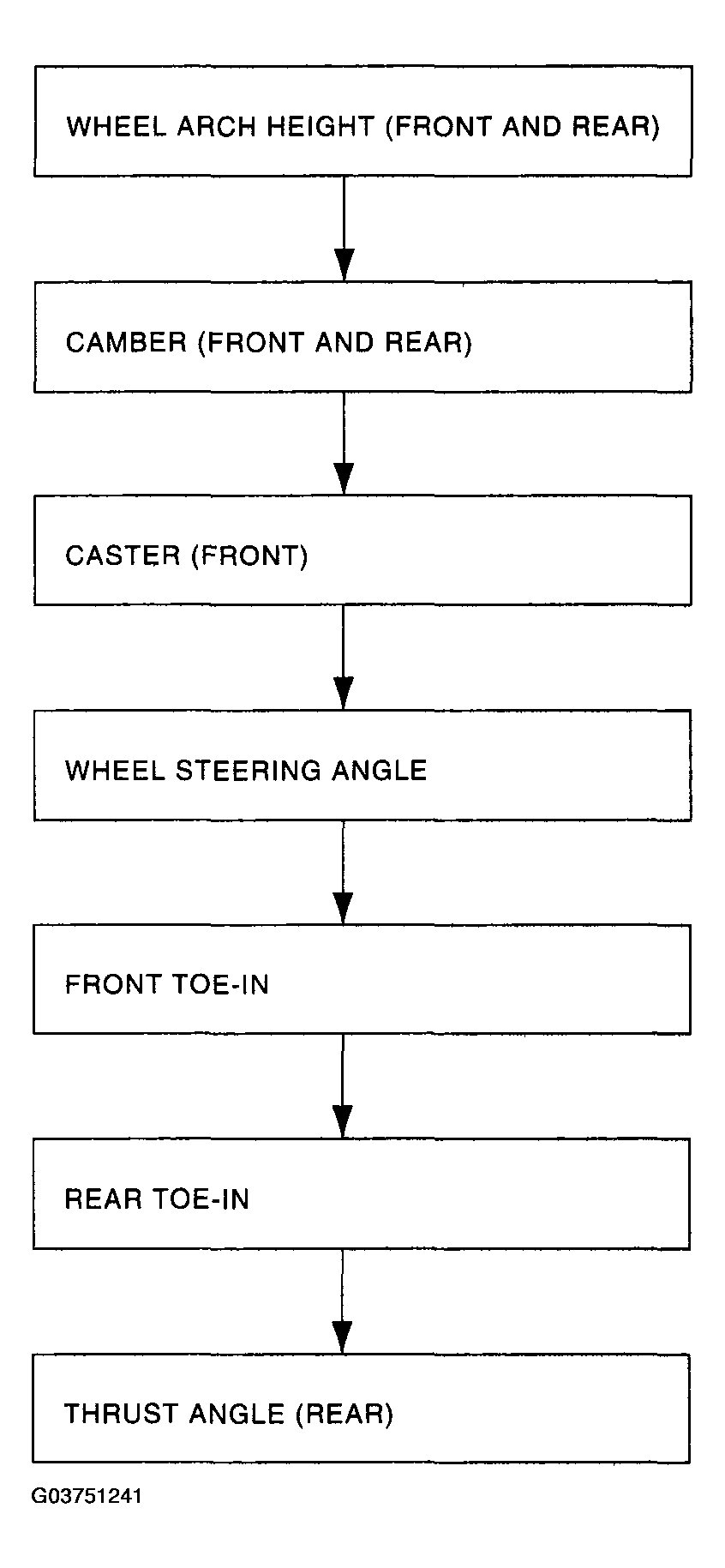

Fig 1: Wheel Alignment Procedures Flow Chart

G03751241

Courtesy of SUBARU OF AMERICA, INC.
