Electrical Components Location: Location: Transmission: Module

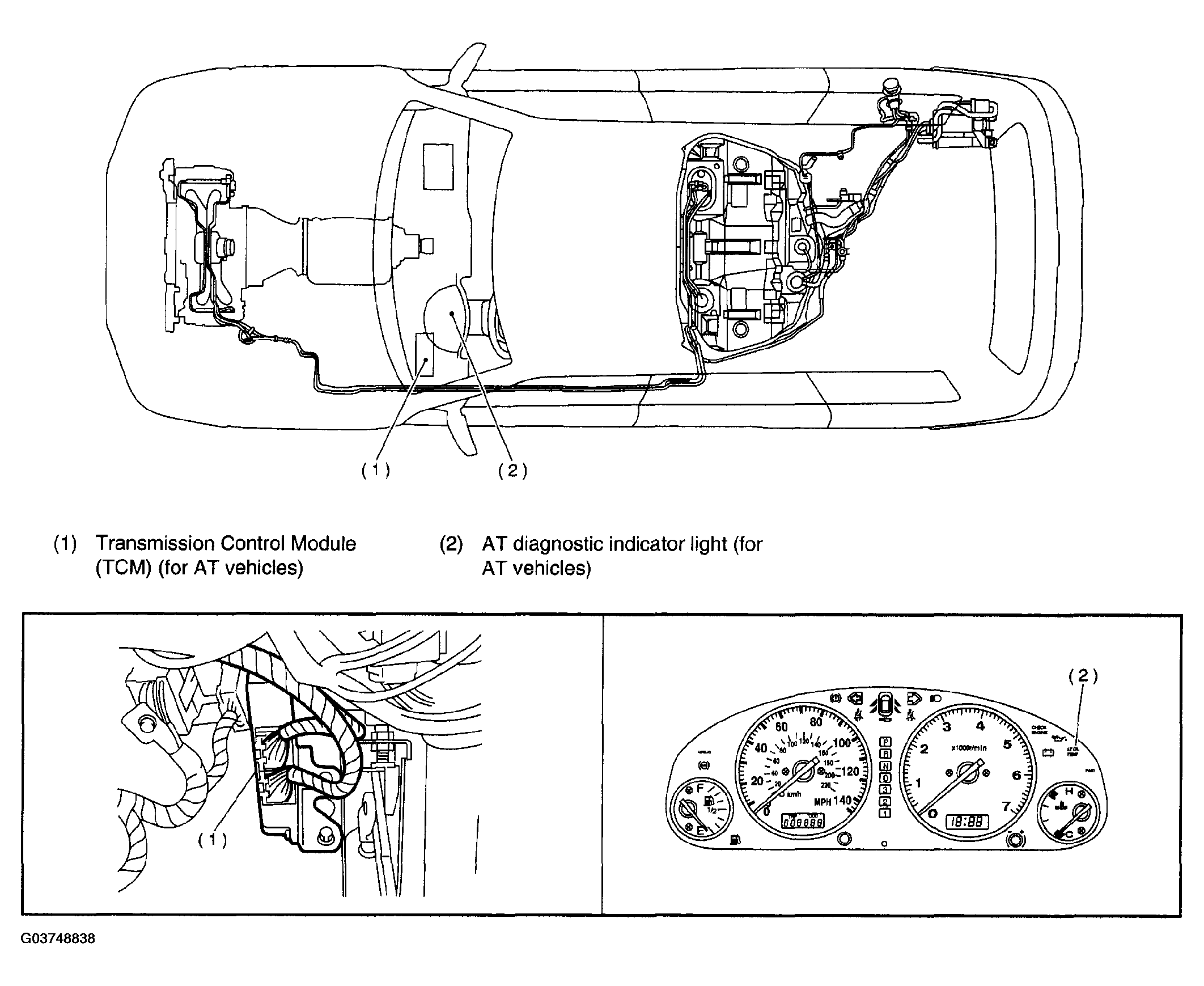

Fig 1: Identifying Transmission Module Electrical Components Location
G03748838Courtesy of SUBARU OF AMERICA, INC.
