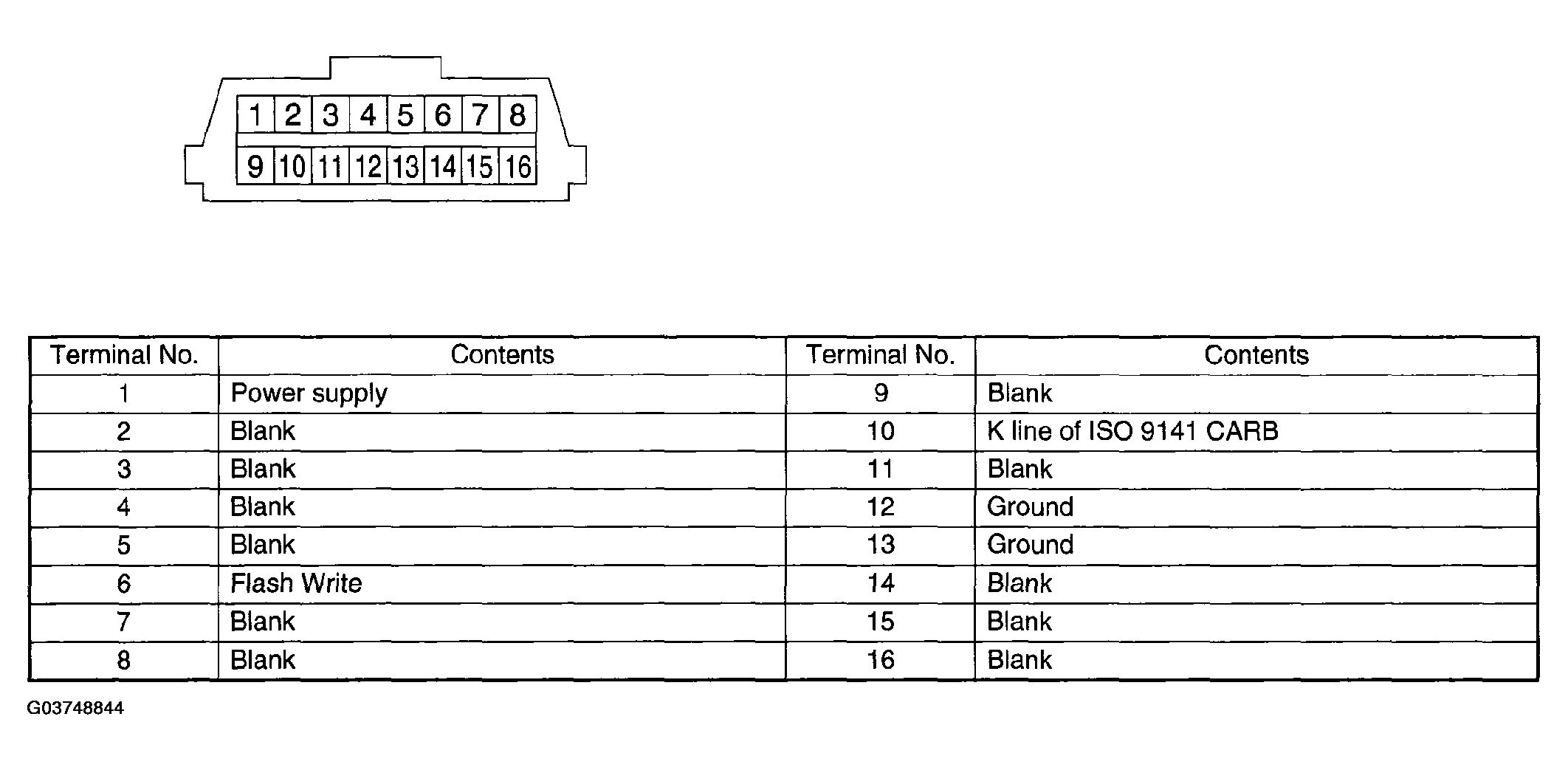

Data Link Connector: Note
- This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
- Terminal No. 4 to No. 6 of the data link connector is used for the Subaru Select Monitor signal.
CAUTION:
Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.
Courtesy of SUBARU OF AMERICA, INC.
