RH Side

Disconnect ground cable from battery.

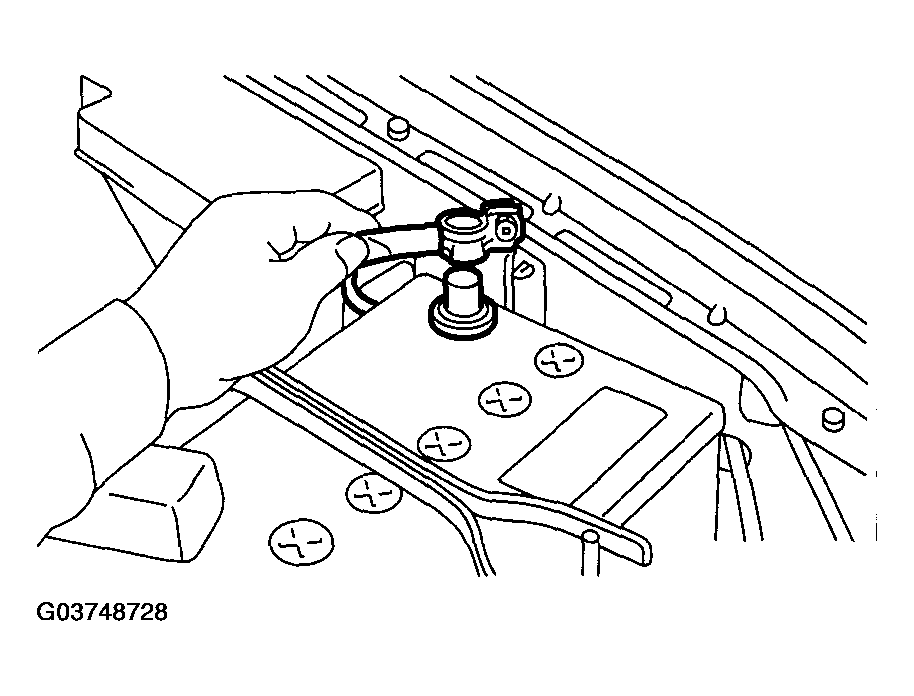

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug cords by pulling boot, not cord itself.

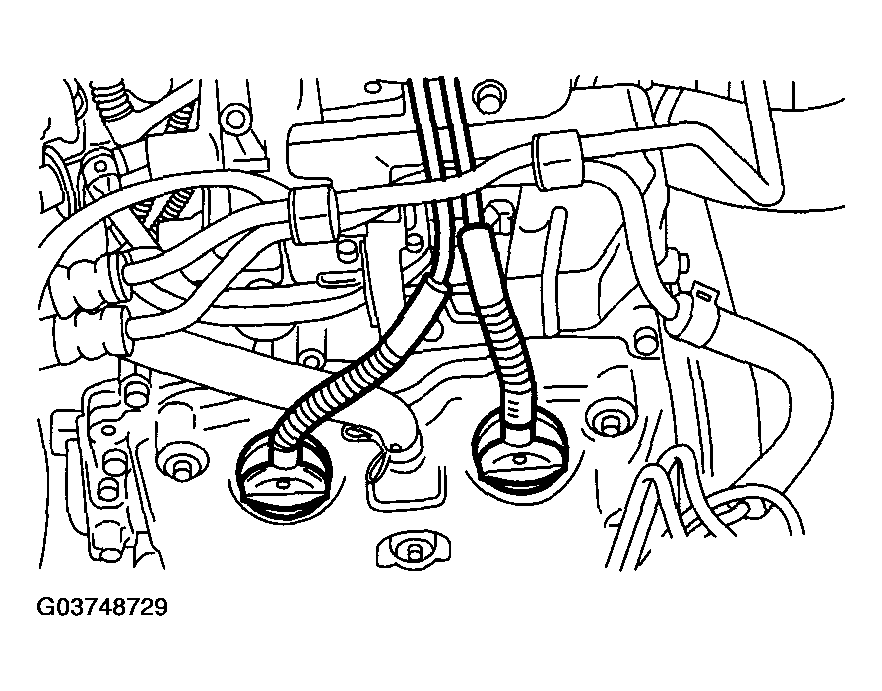

Fig 2: Removing Spark Plug Cords By Pulling Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plugs with the spark plug socket.

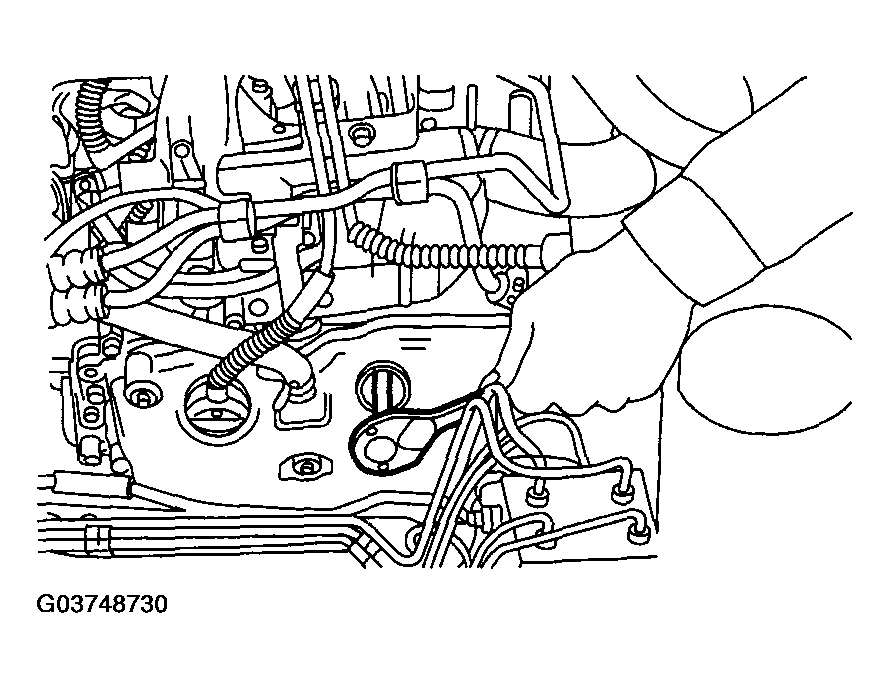

Fig 3: Removing Spark Plugs With Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.
