LH Side

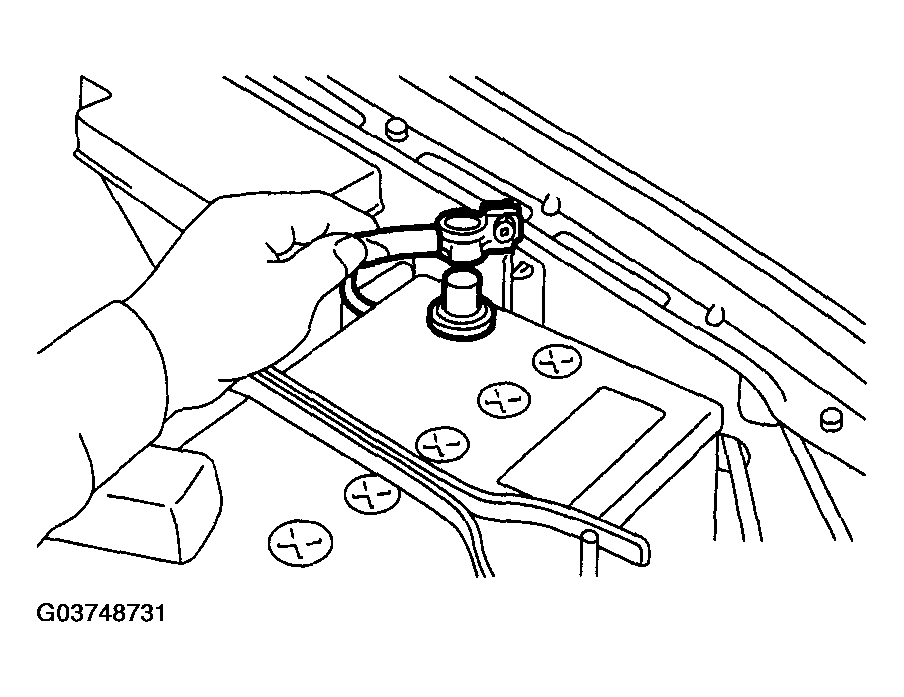

- Disconnect battery ground cable.
Courtesy of SUBARU OF AMERICA, INC.

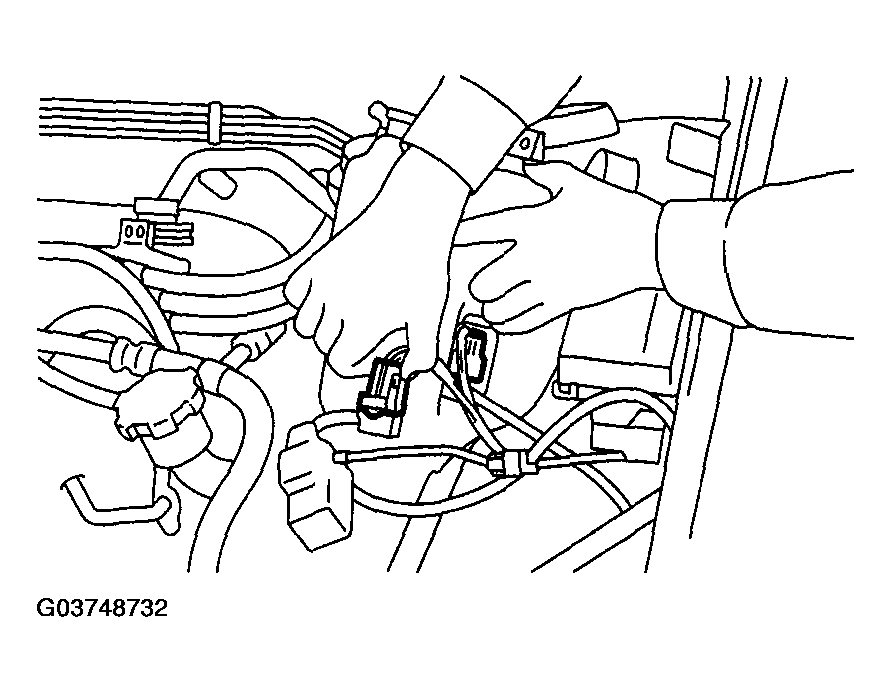

- Disconnect washer motor connector.
Courtesy of SUBARU OF AMERICA, INC.
- Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.

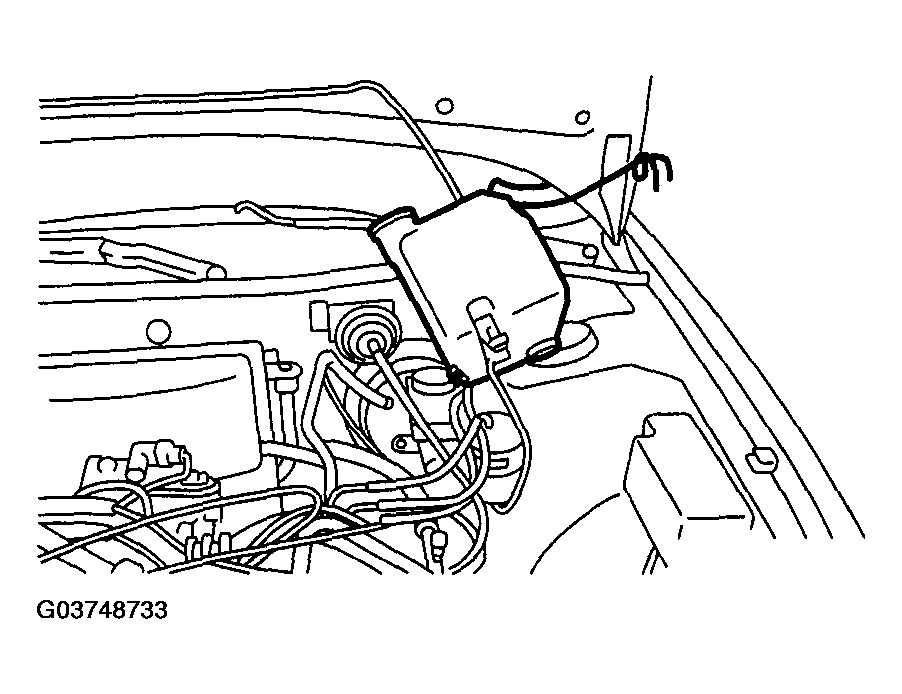

- Remove the two bolts which hold the washer tank, then take the tank away from the working area.
Courtesy of SUBARU OF AMERICA, INC.

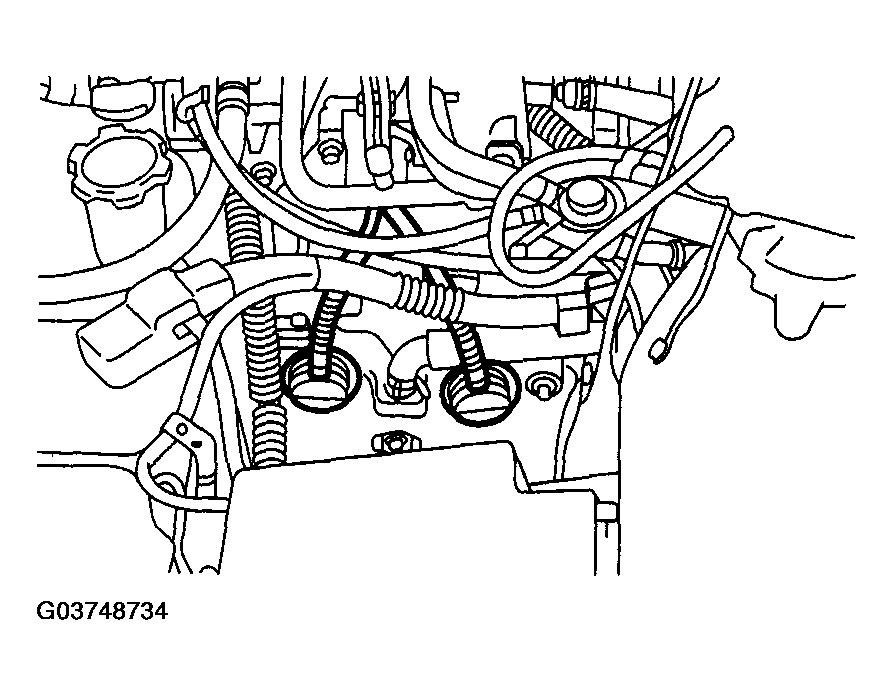

- Remove spark plugs cord by pulling boot, not cord itself.
Courtesy of SUBARU OF AMERICA, INC.

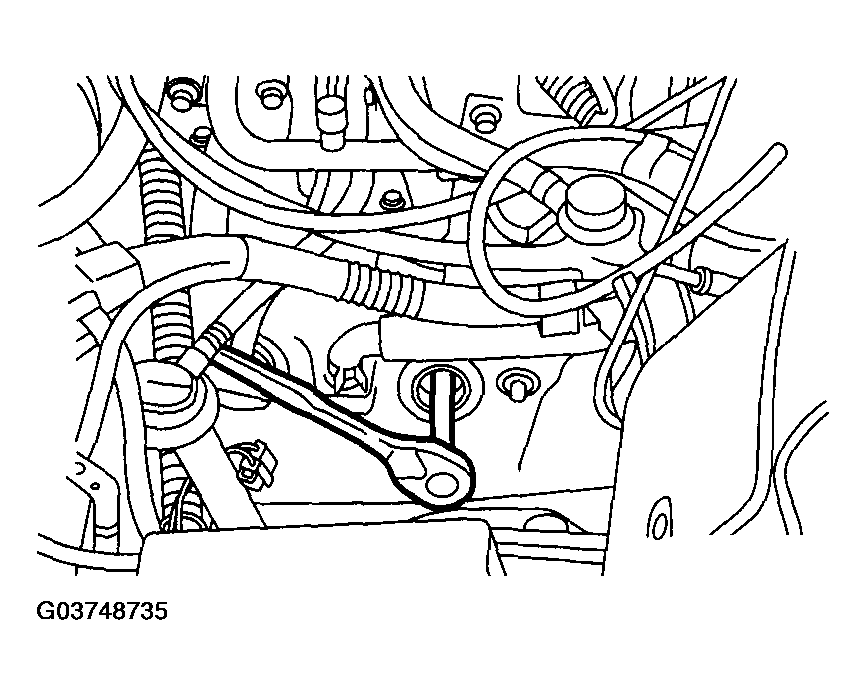

- Remove spark plug with the spark plugs socket.
Courtesy of SUBARU OF AMERICA, INC.
